Who is OGP?
Optical Gaging Products (OGP), a division of Quality Vision International (QVI), is the world's largest vision metrology company. Renowned for its high-accuracy, reliable dimensional metrology systems, OGP is trusted by manufacturers worldwide to ensure the quality of their products.
First introduced in 1992, OGP® SmartScope measurement systems are one of the world’s most popular and versatile dimensional measurement systems for precision measurement challenges.
SmartScope 3D multisensor systems combine optical, laser and tactile sensors, letting you measure parts more completely, with lower uncertainty and in less time.
Multisensor Measurement Systems
Multisensor systems provide a complete 3D measurement data from a single measuring machine. Video, contact probes, laser and micro-probes combine for total part characterization, with better accuracy, in a fraction of the time it would take to do on separate measuring systems.
Smartscope M Series
Smartscope E Series
Smartscope Zip Series
Smartscope SP Series
Smartscope Quest & Vantage
Smartscope Flash & CNC
First introduced in 1992, OGP® SmartScope measurement systems are one of the world’s most popular and versatile dimensional measurement systems for precision measurement challenges.
SmartScope 3D multisensor systems combine optical, laser and tactile sensors, letting you measure parts more completely, with lower uncertainty and in less time.
Smartscope M7
Affordable and high-performance standard CNC CMM that offers a measurement range spanning from 400mm to 2000mm (15.7" to 78.7").
Smartscope M20
A standard CNC CMM equipped with REVO technology, designed to deliver ultra-high-speed scanning capabilities of up to 4,000 points per second in a 5-axis configuration. The measuring range of this CMM starts at 1000mm.
Smartscope M45
Affordable and high-performance standard CNC CMM that offers a measurement range spanning from 400mm to 2000mm (15.7" to 78.7").
SmartScope M50
Affordable and high-performance standard CNC CMM that offers a measurement range spanning from 400mm to 2000mm (15.7" to 78.7").
Fully automatic fixed lens 3-axis video measurement systems.
SmartScope E-Series Systems set the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™-E optical system and VIRTUAL ZOOM™ combine to provide a high-resolution image engineered for video edge detection metrology.
SmartRing™ light is standard for the ultimate flexibility in surface illumination, along with an all-LED backlight and coaxial surface light.
Smartscope E7
A CNC CMM that combines high precision with rapid drive speed.
Capable, Field-Tested Automatic Dimensional Measurement, Worldwide Favorites in the Industrial Marketplace
SmartScope® ZIP® systems offer superior optical performance and a range of machine travels to deliver reliable performance. SmartScope ZIP models feature the proven performance of AccuCentric® autocompensating 7:1 zoom optics. Multiple illumination sources – including monochromatic substage LED profile, white LED TTL surface, SmartRing™ white LED ring light, and optional VuLight™ oblique illuminator – are available to illuminate your toughest measurement challenges.
Smartscope Zip 250
The industry standard for video measurement machines

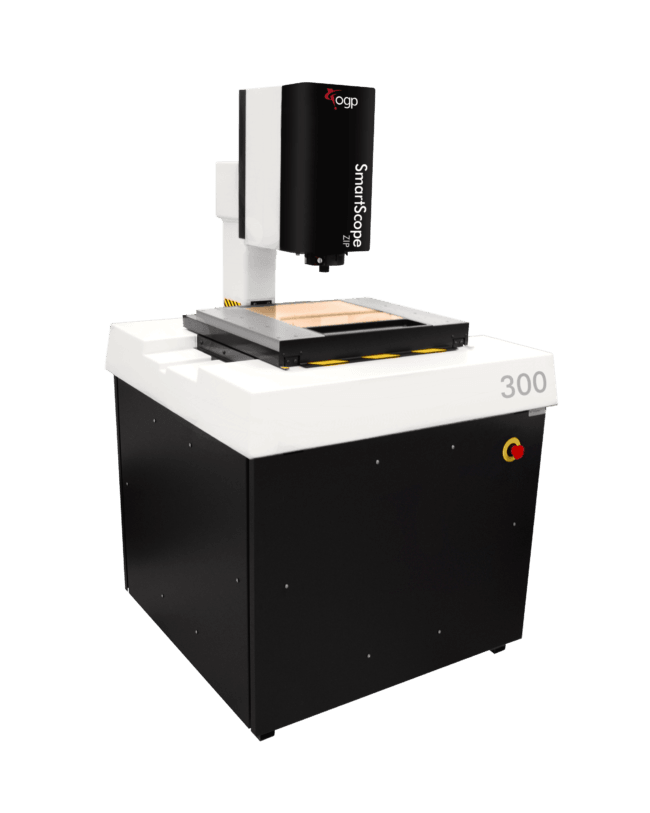

Smartscope Zip 300
High Accuracy multisensor metrology system
Smartscope Zip 450
Heavy-duty multisensor measurement system
Smartscope Zip 635
High speed multisensor measuring system for large parts
Smartscope Zip 800
Large travel multisensor measurement system
Designed for Optimum Scanning Probe Performance
SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.
Smartscope SP 332
Large working volume on a benchtop system
Smartscope SP 463
Rugged, floor model system of proven design to handle larger, heavier parts
Smartscope SP 663
Large measuring volume and high payload capacity in compact footprint
High-accuracy system designed to use a variety of sensors for full 3D measurement
SmartScope® Quest™ systems are designed to provide the best performance and the highest accuracy in three-dimensional multisensor measurement. The patented TeleStar® 10:1 zoom lens is completely telecentric and automatically calibrated throughout the zoom range, for distortion-free, high fidelity images. Generous working distances make it easy to measure large parts. Multiple illumination sources, including substage profile light, coaxial surface light, and the SmartRing™ green LED oblique illuminator are standard on all Quest systems.
Smartscope Quest 250
Advanced-technology dimensional measuring system with a compact footprint.
Smartscope Quest 300
Advanced-technology large volume dimensional measuring system that fits on a benchtop
Smartscope Quest 450
Advanced-technology dimensional measuring system for large parts
Smartscope Quest 650
The ultimate multisensor dimensional measuring system
Smartscope Quest 650
Extremely Large Volume Multisensor Dimensional Measurement System
High-accuracy system designed to use a variety of sensors for full 3D measurement
SmartScope® Quest™ systems are designed to provide the best performance and the highest accuracy in three-dimensional multisensor measurement. The patented TeleStar® 10:1 zoom lens is completely telecentric and automatically calibrated throughout the zoom range, for distortion-free, high fidelity images. Generous working distances make it easy to measure large parts. Multiple illumination sources, including substage profile light, coaxial surface light, and the SmartRing™ green LED oblique illuminator are standard on all Quest systems.
Smartscope Flash 200
3D multisensor dimensional measurement system that fits on a benchtop
Smartscope Flash 302
High capacity 3D multisensor measurement system that fits on a benchtop
Smartscope Flash 500
Large capacity multisensor dimensional measurement system
Smartscope Flash 635
High-speed multisensor dimensional measurement system for large parts
Smartscope Flash 670
Extra-large capacity 3D multisensor measurement system
Smartscope Flash 1500 | 1550 | 1552
Large and Extra-large XY-travel 3D multisensor measurement system
Machine Lineup
OGP’s measurement systems meet rigorous requirements. These tools measure from microns down to single nanometers. Many incorporate multiple sensors and measurement modes providing versatility to acquire data on challenging samples and surface conditions with a single setup. Consolidating multiple inspections in a single tool is efficient, flexible to accommodate change, and helps produce high confidence data in a small footprint.
Advanced Production Systems
Video Measurement Systems
TurnCheck Shaft Measurement Systems
Optical Comparators
Flexible Gauging Software
Laser Scanning Systems
Optimizing throughput for high criticality, tight tolerance features is what these tools are all about. Typical applications include wafer, photomask, slider, MEMS, semiconductor package, HDD suspension, probe card, and micro-component process measurements.
These systems feature:
- Built-in Measurement Stability – Precision granite support structures provide vibration isolation and measurement stability for use on the production floor.
- Optical Interchangeable Lenses – Advanced fixed single-magnification or optional dual-magnification optics, illumination, image processing, and available Continuous Image Capture make it a world-class metrology system.
- Multisensor Versatility – Optional touch and scanning probes, TTL Laser, and Rainbow Probe.
- SNAP Large FOV Video Measuring Systems – SNAP™ measurement systems make complex measurements easy and accurate – it’s as simple as placing a part on the stage and pressing go.
OGP Summit
Summit excels in delivering both high accuracy and rapid measuring speeds, making it ideal for near-line process monitoring and quality assurance applications.
OGP Pinnacle
OGP Pinnacle offers the highest accuracy and fastest speeds of the high performance fixed optics line, with the lowest cost of ownership for any automated measuring system of its kind.
OGP Benchmark
The Benchmark represents a compact floor model system meticulously designed for exceptional performance and reliability.
We offer high-precision and high-performance surface roughness testers in both skid and skidless types.
SprintMVP 1500|1550|1552
The SprintMVP 1500|1550|1552 floor model measurement systems provide fully automatic, non-contact video measurement tailored for very large parts or assemblies of parts.
SprintMVP 624
Large Capacity, Fully Automatic,
3-Axis Dimensional Video Measurement System
SprintMVP 400 | 600
High-accuracy, portable surface roughness measuring instrument available in both skidded and skidless types. Equipped with a high-resolution drive unit and detector for precise and detailed measurements.
SNAP 350
High-performance and high-precision surface roughness tester designed to deliver accurate measurements with exceptional precision.
SNAP 200
High-precision, high-performance column/dedicated processor surface roughness measuring instrument.
SNAP 100
The high-accuracy CNC surface roughness measuring instrument enables simultaneous surface roughness measurement in both the X and Y axes.
TurnCheck systems are precision optical instruments designed to measure shafts and other cylindrical parts. Each member of the TurnCheck family is built for ease of use and consistent accuracy, even in difficult shop-floor conditions.
TurnCheck Series-6
The TurnCheck Series-6 systems are precision optical shaft measuring instruments specifically engineered for use in shop floor environments.
TurnCheck Series-10
The TurnCheck Series-10 systems present a rapid and straightforward solution for measuring shafts, cylinders, and other turned, ground, or extruded parts.
TurnCheck Series-14
The multi-functional, high-accuracy CNC roundness/cylindricity and surface roughness measuring system offers comprehensive capabilities for precise measurement and analysis. With its CNC functionality, it enables accurate assessments of roundness, cylindricity, and surface roughness, making it a versatile and reliable solution for advanced dimensional analysis.
Optical Comparators from OGP combine cutting-edge optics, lighting, and automation technologies for enhanced productivity and profitability. The benchtop and floor model offerings are the industry’s best value and performance solutions for non-contact shop floor measurement.
Contour Projector QL-30
c-vision Benchtop
An easy-to-use, dual magnification benchtop video contour projector.
c-vision Floor Model
The ultimate shop floor hardened, high payload capacity video contour projector.
c-vision Lite
A measuring system has been developed that combines a hybrid dual detector and a dual-sided contour stylus for accurately measuring surface roughness. This system offers improved measurement speed and efficiency, along with automation features to enhance ease of use. It provides a diverse array of features and can be expanded with optional detectors for added functionality.
Contour Projector QL-30
An ultra high capacity optical comparator that offers a large, bright image and compact footprint while still being able to handle the largest, heaviest parts.
Contour Projector QL-20
The most popular shop floor comparator, providing an extensive range of features in a hardened, work-ready system.
Contour Projector Focus
High quality, full-function 14" optical comparator with the most advanced technology available.
Itaca FlexGauge systems offer flexibility for users who need measuring systems and software for small, high precision parts or families of parts as a rugged alternative to custom gauging systems. Itaca systems specialize in flexible measuring systems and software for applications requiring tactile probing. Compared to traditional hard gauging set-ups, the Itaca FlexGauge line of systems offers unique advantages in performance and cost of ownership.
Itaca Flexgauge C-Series
The Formtracer CS-3300 Series is a collection of surface roughness and contour measuring systems that offer high functionality and user-friendliness. These systems are designed with innovative features that enhance their performance and usability.
Itaca Flexgauge T-Series
This system is a flexible combination of detectors that can efficiently and rapidly measure contour and surface roughness. It consists of a single-sided stylus and supports interchangeable detector heads for different measurement purposes.
High-accuracy system designed to use a variety of sensors for full 3D measurement
SmartScope® Quest™ systems are designed to provide the best performance and the highest accuracy in three-dimensional multisensor measurement. The patented TeleStar® 10:1 zoom lens is completely telecentric and automatically calibrated throughout the zoom range, for distortion-free, high fidelity images. Generous working distances make it easy to measure large parts. Multiple illumination sources, including substage profile light, coaxial surface light, and the SmartRing™ green LED oblique illuminator are standard on all Quest systems.
Smartscope Flash 200
3D multisensor dimensional measurement system that fits on a benchtop
Smartscope Flash 302
High capacity 3D multisensor measurement system that fits on a benchtop
Smartscope Flash 500
Large capacity multisensor dimensional measurement system
Smartscope Flash 635
High-speed multisensor dimensional measurement system for large parts
Smartscope Flash 670
Extra-large capacity 3D multisensor measurement system
Smartscope Flash 1500 | 1550 | 1552
Large and Extra-large XY-travel 3D multisensor measurement system
About
Optical Gaging Products (OGP)
THE COMPANY
OGP has been a leader in advanced metrology and quality control for over 75 years, and during that time OGP has introduced products that have made a significant impact in precision and reliability in the manufacturing industry.
OGP created the world’s first multisensor measuring system – the Intelligent Qualifier™ 2000 – in 1987. Since then, OGP has led the way, designing innovative metrology products to meet the demanding needs of leading manufacturers around the world.
MEASUREMENT SYSTEMS
OGP’s measurement systems meet rigorous requirements. These tools measure from microns down to single nanometers. Many incorporate multiple sensors and measurement modes providing versatility to acquire data on challenging samples and surface conditions with a single setup. Consolidating multiple inspections in a single tool is efficient, flexible to accommodate change, and helps produce high confidence data in a small footprint.
