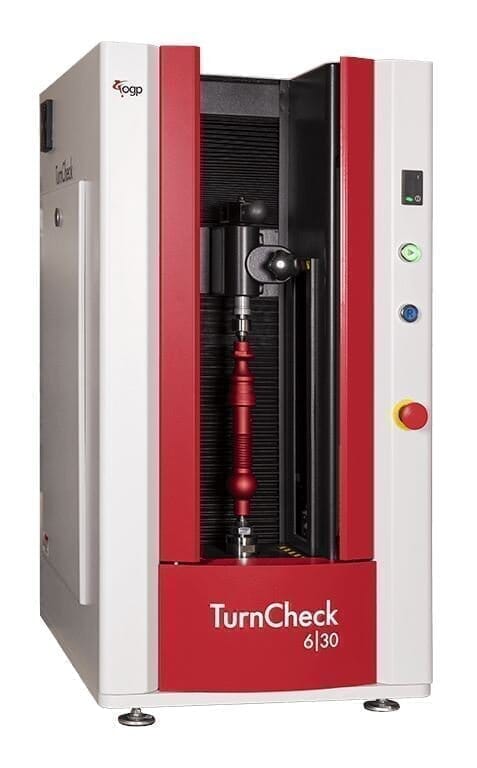

TurnCheck Series-6

High performance benchtop shaft measurement system.



The TurnCheck Series-6 systems are precision optical shaft measuring instruments specifically engineered for use in shop floor environments. These rugged and reliable systems are capable of accommodating parts up to 300 mm in length.



The TurnCheck system software provides cutting-edge image analysis technology for high-speed optical measurement. With automatic feature extraction, it swiftly identifies and measures all part features in a single scan. TurnCheck ensures fast and precise measurement of both known and unknown parts, eliminating the need for programming or a CAD model. The system offers integral Geometric Dimensioning and Tolerancing (GD&T) and best-fitting capabilities, and it can output all point data for external analysis or reverse engineering.



The movable tailstock assembly is designed for easy one-handed operation, facilitating precision mechanical alignment of the workpiece. Additionally, optional workholding kits that fit into the spindle are available to accommodate workpieces that lack centers

    SKU: ogpturncheck10series

    OGP TurnCheck Series-6 Features

    Completely telecentric, large field of view optical system

    The ability to measure diameters as large as 60 mm and lengths up to 300 mm
    ogp-turncheck-series-10-measurement-systems-ogp-indicate-technologies-303905_aa2b255b-8c8f-49ec-8960-44818dbbed8a
    Fast, easy measurements of all critical dimensions of turned parts, from simple lengths and diameters to advanced profile fitting and form

    Optional ±12.5° of motorized helix angle adjustment for correct thread form measurements

     OGP Turncheck Series-6 Configurations

    Technical

    Software

    Technical Data

    MEASUREMENT CAPACITY
    Measuring Range (mm)
    300 L x 60 Ø

    MAXIMUM PART SIZE (MM)
    Standard
    300 L x 170 Ø

    Software

    Turncheck Software

    TurnCheck software is fast and easy to program with a focus on what you want to measure rather than how to measure it. Automatic feature extraction immediately finds and measures all part features in a single scan. A single image displaying the entire part allows you to easily see all basic shaft measurements at once. Rotational scans can be done for form and runout measurements providing plots to truly visualize the results.
    ogp-turncheck-software-measurement-systems-ogp-indicate-technologies-173322

    EVOLVE Smartprofile

    EVOLVE SmartProfile stands as the premier dimensional analysis solution globally. This software offers assistance in incorporating or adjusting part design tolerances, seamlessly integrating measurement data with the part's CAD model. It then automatically conducts GD&T evaluations (ASME) and GPS assessments (ISO). Equipped with a robust toolkit, engineers can effectively dissect and resolve intricate manufacturing challenges.
    ogp-evolve-smartprofile-measurement-software-ogp-indicate-technologies-629100

    OGP TurnCheck Shop Floor Optical Shaft Measurement Systems
