A New Paradigm in Shaft Measurement

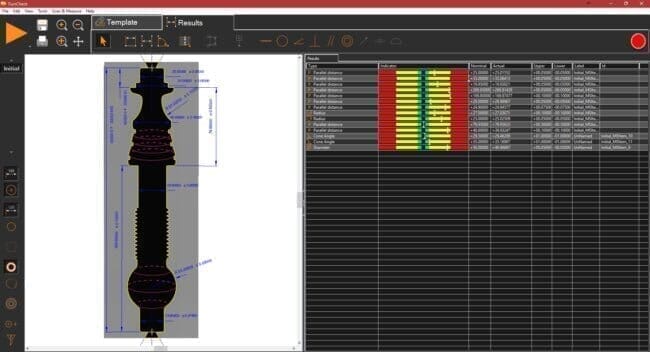

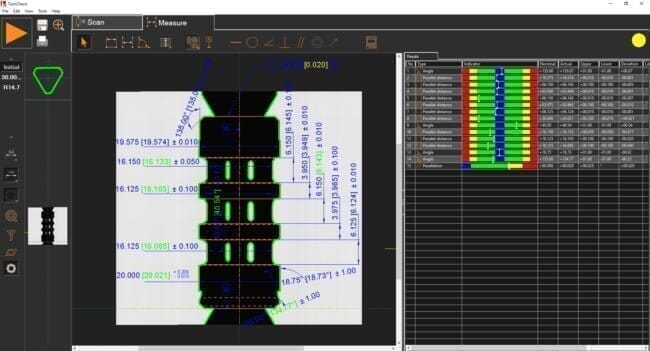

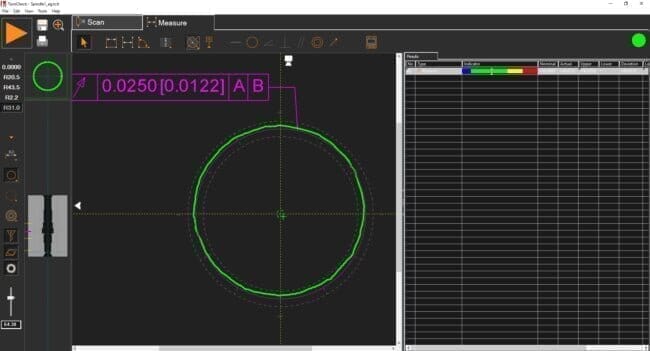

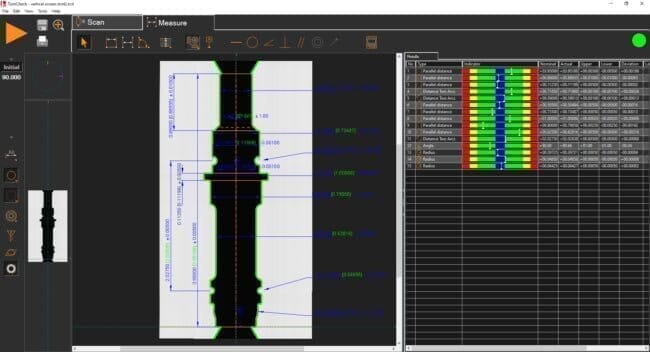

The TurnCheck software stands out for its speed and user-friendly programming approach, focusing on what you want to measure rather than the intricacies of how to measure it. With automatic feature extraction, the software swiftly identifies and measures all part features in a single scan. A comprehensive view of the entire part in a single image facilitates easy observation of all basic shaft measurements simultaneously. Rotational scans are available for form and runout measurements, providing plots for a comprehensive visualization of the results.

For pre-programmed parts, automatic rotational alignment ensures fast and intelligent one-touch measurement every time.

Effortless thread analysis is facilitated by an integrated thread library containing a wide variety of common types, enabling quick retrieval of results such as pitch and major/minor diameter.

Data points can be directly compared to a DXF model, incorporating 2D Geometric Dimensioning and Tolerancing (GD&T) analysis. Additional data points can be exported to optional SmartProfile® software for 3D analysis and advanced GD&T.
