Contour Projector Focus

High quality, full-function 14" optical comparator with the most advanced technology available.

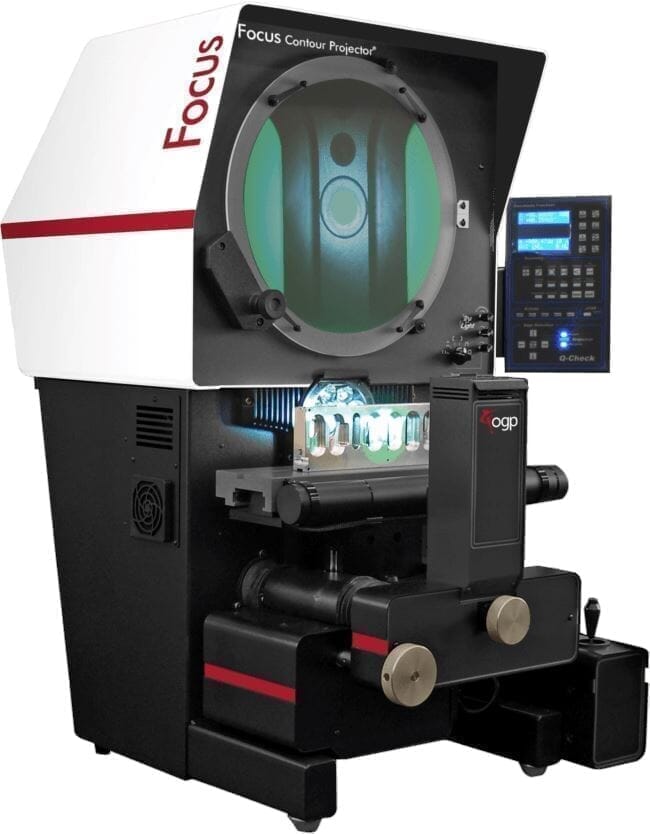

The Focus Contour Projector systems are top-tier, full-function 14” optical comparators known for their high quality and incorporation of the most advanced technology available.

    SKU: ogpfocus
    Request for Quote

    OGP Contour Projector Focus Features

    Vectored light control
    The system features versatile TruLight® LED lighting illumination for precise and adaptable lighting.

    Keep lenses safe and ready for use With a 3-position internal lens turret, the lenses are securely stored and readily available for use.

    Ideal for real-world, shop floor environments in a benchtop configuration
    Constructed with rigid, all-steel construction and solid metal castings, the system is designed to thrive in practical, benchtop setups.
    ogp-contour-projector-focus-measurement-systems-ogp-indicate-technologies-249022_5dff175f-64bf-406d-ad1c-812242dd43fa
    Optional VidiProbe video measurement, optional motorized servo drives, and optional Projectron automatic internal edge detection
    The system offers additional features such as VidiProbe video measurement, motorized servo drives, and Projectron automatic internal edge detection as optional enhancements.

    OGP Contour Projector Focus Configurations

    Technical

    Options/Accessories

    Software

    Technical Data

    XY TRAVEL
    Standard
    12” x 5”

    OPTICS
    Lens Options
    10X, 20X, 31.25X, 50X, 100X

    ILLUMINATION
    Standard
    Profile Light

    Coaxial Light

    Oblique Surface Illumination

    SCREEN
    16” diameter, 14” viewable ground glass screen, with integral hood, 90° centerlines and clips for mounting overlay charts

    WORKTABLE
    Standard
    Manual, hard coat anodized aluminum with dovetail slot and ±6.5° helix angle range

    Optional
    Motorized with variable speed joystick

    Options/Accessories

    Optical Comparator Overlays
    OGP optical comparator charts are produced from CAD generated masters scribed on a high precision plotter for uniform line weight and accurate location.
    Learn More
    optical-comparator-overlays-ogp-centerline-screens-indicate-technologies-394289
    Optical Comparator Fixtures
    Indicate Technologies and OGP offer a full line of comparator fixtures to make measurements more convenient.

    Staging centers
    V-blocks
    Rotary staging vise
    Learn More
    optical-comparator-fixtures-ogp-indicate-technologies-905222

    Software

    Measure-X

    Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

    With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
    Learn More
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
