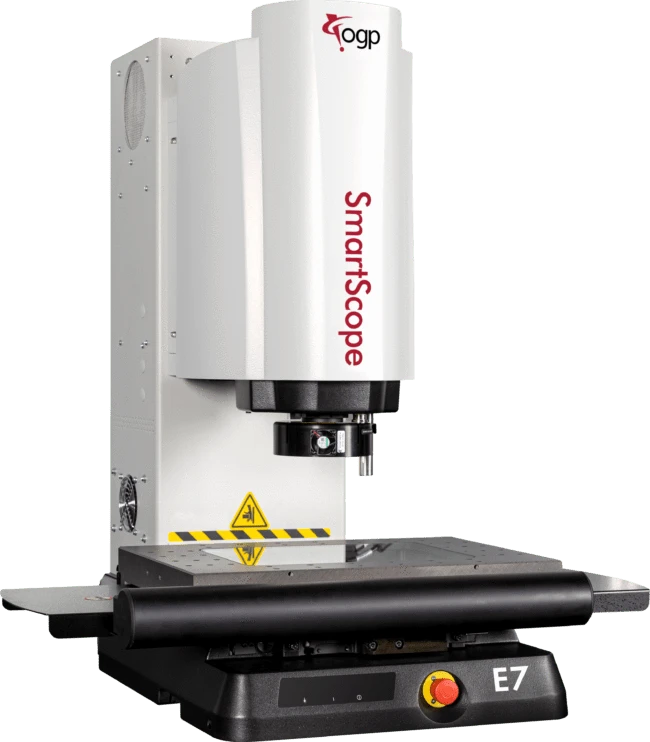

SmartScope E7

Fully automatic measurement system that sets the standard for 3-axis video measurement.

SmartScope E7 Sets the Benchmark for 3-Axis Video Measurement Performance.


Experience unparalleled precision with the fixed lens IntelliCentric optical system and digital zoom, delivering a meticulously detailed image tailored for video edge detection metrology.
SKU: smartscopee7
Request for Quote

OGP Smartscope E7 Features

Advanced Lighting - Illuminate Your Precision.

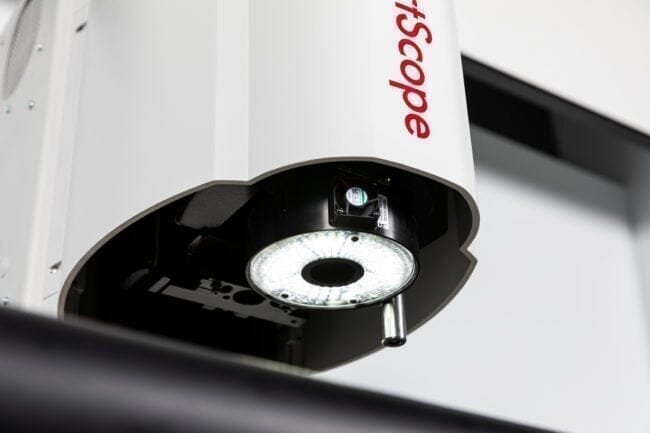

Enjoy standard features such as all LED coaxial, substage profile, and SmartRing light illumination, ensuring optimal visibility for accurate measurements.

Sturdy, Stable Construction - Built for Reliability.
The SmartScope E7 boasts a robust design, featuring a heavy-duty cast base and integral compound stage with Y-axis center drive, providing unwavering stability for your measurements.
smartscope-e7-measurement-systems-ogp-indicate-technologies-765482
Multisensor Versatility - Tailor Your Approach.
Optimize your metrology capabilities with the SmartScope E7's optional TP-20 and TP-200 touch probes, offering versatility to meet the specific needs of your projects.

Benchtop, Compound Stage

250x150x200 mm, Ext X 300 mm (opt)

Options: Touch Probe, DRS Laser

OGP Smartscope E7 Configurations

Technical

Sensors

Software

Technical Data

XYZ TRAVEL (MM)
Standard
250 x 150 x 200

Optional
Extended X axis, 300 mm

OPTICS
Standard
Fixed optical magnification with digital zoom, E 8.10 standard lens

Optional
E 4.5 high magnification lens, E 16.20 wide field-of-view / long working distance lens

ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159

Software

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
Learn More
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

OGP SmartScope E-Series Product Explainer Video
