SNAP 200

Extends measuring range with a precision motorized X-axis stage and the flexibility of two built-in optical magnifications.

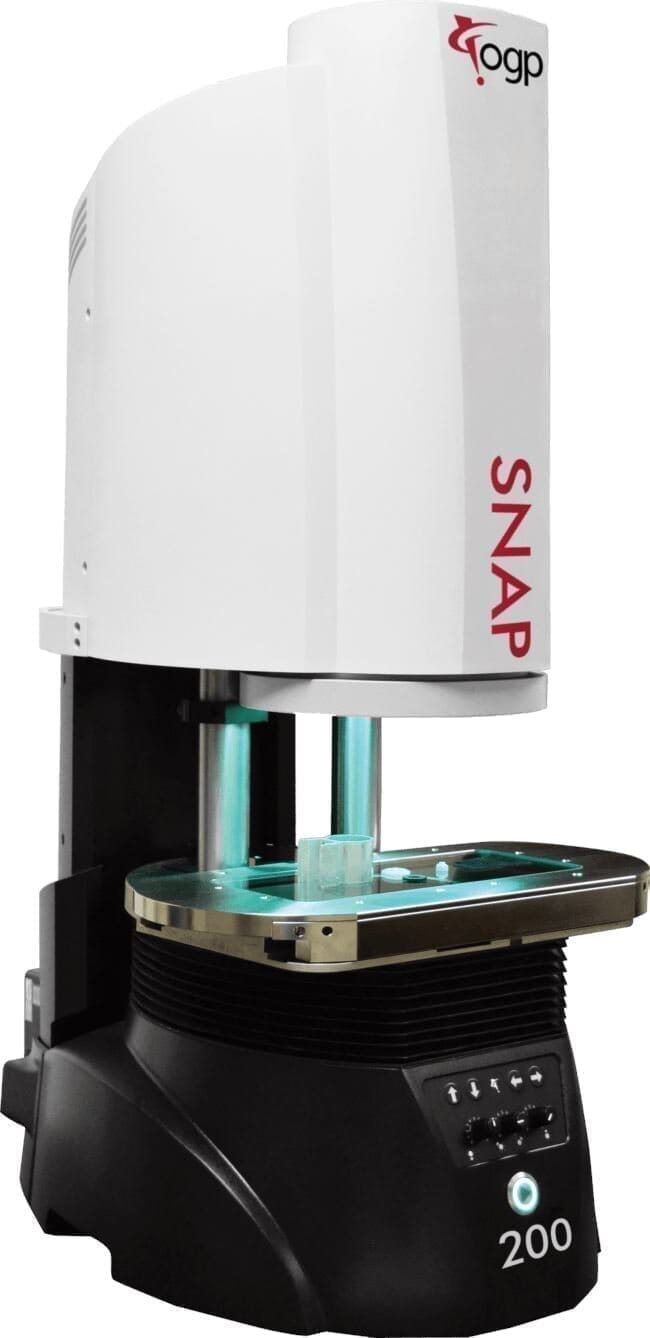

SNAP 200 is a compact unit featuring a Large Field of View (FOV) Telecentric lens and a motorized stage covering a measuring area of 250 x 100 mm. Its Dual-Mag optics enhance functionality by offering a broader magnification range, even when utilizing a program.



The Measure-X metrology software facilitates easy operation for immediate measurements, allows comparison to an electronic overlay, enables the creation and execution of automated programs for intricate measurements and Geometric Dimensioning and Tolerancing (GD&T). The AutoID feature minimizes operator involvement.

    SKU: ogpsnap200
    Request for Quote

    OGP SNAP 200 Features

    Large FOV, telecentric dual magnification optics

    Collimated back-light, programmable ring light, and coaxial surface light
    ogp-snap-200-measurement-systems-ogp-indicate-technologies-141391
    Motorized axes with up to 250 x 100 mm measuring range

    Measure-X Metrology Software

    Optional ZONE3 Metrology Software

    OGP SNAP 200 Configurations

    Technical

    Accessories

    Software

    Technical Data

    MAX MEASURING RANGE (MM)
    Standard
    250 x 100 mm

    OPTICS
    Telecentric, dual optical magnification with 100 mm low mag field of view and 4X high magnification lens

    ILLUMINATION
    All LED monochromatic substage profile light, programmable 8 sector ring light, and coaxial through-the-lens surface light.

    OGP SNAP Product Explainer Video

    Accessories

    Rotary Indexers
    Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
    Learn More
    ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-381463

    Software

    Measure-X

    Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

    With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
    Learn More
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

    Zone3

    The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not.

    Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
    Learn More
