Large Area, High Accuracy Dimensional Metrology System

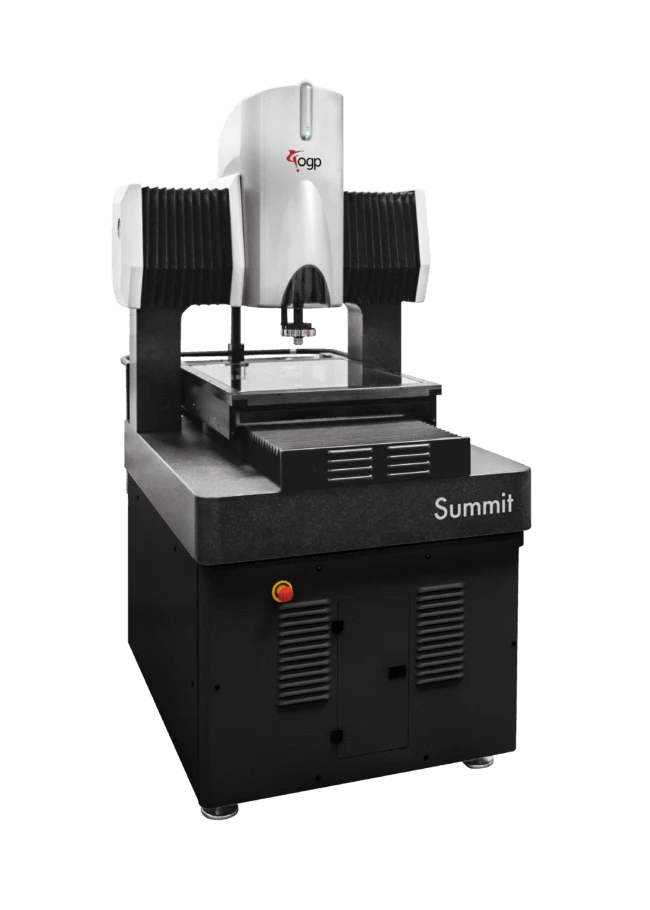

OGP Summit is designed for components requiring a large work envelope and high accuracy.



Summit excels in delivering both high accuracy and rapid measuring speeds, making it ideal for near-line process monitoring and quality assurance applications. The utilization of High-Speed linear motor XY drives ensures exceptional productivity on the factory floor. This system is particularly well-suited for measuring large footprint parts, including stencils, flat panel displays, etching sheets, mask patterns, as well as nested groups of smaller parts.

OGP Summit Product Features
Built-in Measurement Stability
The system incorporates a stable granite bridge structure, offering vibration isolation and ensuring measurement stability for reliable use on the production floor.

Optical Interchangeable Lenses
Equipped with advanced fixed single-magnification optics or optional dual-magnification optics, along with versatile illumination, image processing capabilities, and the option for Continuous Image Capture, establishing it as a world-class metrology system.
summit-measurement-systems-ogp-indicate-technologies-267292
Options: Touch and scanning probes, TTL Laser, and Rainbow Probe.
Versatile Multisensor Capability
The system provides optional touch and scanning probes, TTL Laser, and Rainbow Probe, enhancing its adaptability and versatility for various measurement needs
Technical Specifications
Sensors and Accessories
Software
Technical Specifications
OGP Summit - Technical Specifications

OGP Summit Technical Specifications

Specification Value
System Type Large Area Dimensional Metrology System
Configuration Floor model, Fixed Bridge
Technology Multi-sensor Optical Measurement
Bridge Structure Stable granite bridge with vibration isolation
Drive System High-speed linear motor XY drives
Measurement Envelope Large work envelope (specific dimensions vary by model)
Optics Fixed single-magnification or optional dual-magnification
Lens System Optical interchangeable lenses
Illumination Versatile illumination system
Image Processing Advanced image processing capabilities
Image Capture Optional Continuous Image Capture
Primary Sensor High-resolution optical sensor
Optional Sensors Touch probe, scanning probe, laser interferometer
Measurement Type Non-contact optical measurement
Application Focus Near-line process monitoring, quality assurance
Accuracy High accuracy dimensional measurement
Speed High measuring speeds for production floor use
Environment Production floor ready with vibration isolation
Control Software OGP SmartScope software suite
Programming Automated measurement programming
Data Output Statistical process control (SPC) compatible
Industries Automotive, aerospace, electronics, medical devices
Material Compatibility Transparent, translucent, fragile, liquid surfaces
Connectivity Network connectivity for data management
Manufacturer Optical Gaging Products (OGP)
Parent Company Quality Vision International Inc (QVI)
Sensors and Accessories
Sensors
touch-probe-tp20tp200-measurement-accessory-ogp-indicate-technologies-383655
Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
feather-probe-measurement-accessory-ogp-indicate-technologies-694030
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-350590
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
through-the-lens-ttl-laser-measurement-accessory-ogp-indicate-technologies-102828
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.
Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
drs-laser-measurement-accessory-ogp-indicate-technologies-632578
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Learn More
RainbowLens-650x488
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.
Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Learn More
telestar-probe-measurement-accessory-ogp-indicate-technologies-553845
Laser Sensor
Telestar Probe
Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
Download Datasheet: Telestar Probe
Learn more
Accessories
dual-rotary-indexers-measurement-accessory-ogp-indicate-technologies-260702
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-592337
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
Software
ZONE3
zone3-ssa-pro-promotion-indicate-technologies-indicate-technologies-212818
THE WORLD'S MOST COMPREHENSIVE METROLOGY SOFTWARE
The ZONE3® Metrology Software introduces a completely novel approach to interacting with multisensor measurement systems, delivering measurements that are faster, more straightforward, and more productive than ever. Its interface distinctly presents the connections among components such as parts, sensors, datum alignments, and machine accessories.
