OGP

Scanning Probe

Enhance the contact contouring capabilities of your OGP system by integrating the SP25M scanning probe. This user-friendly feature enables you to effortlessly define a start and end point, and the scanning probe seamlessly traces the part profile between these points.


Empowered by intelligent algorithms, the ZONE3® metrology software directs the probe, swiftly tracking the part contour and capturing data points at a velocity and sampling rate specified by the user. The scanning probe dynamically adjusts point density when navigating curves, resulting in significant reductions in both programming and measurement times compared to single-point probing methods.

On SmartScope systems, scanning probes are strategically positioned in fixed locations, offset from the optics. Optionally, they can be integrated with automatic deployment mechanisms and articulating heads on specific systems for added flexibility.

For increased efficiency, optional change racks enable the automatic exchange of different probes within a program without requiring any operator intervention. Kinematic mounts facilitate the attachment and detachment of change racks without the need for subsequent relocation.

SUPPORTED TOUCH PROBES

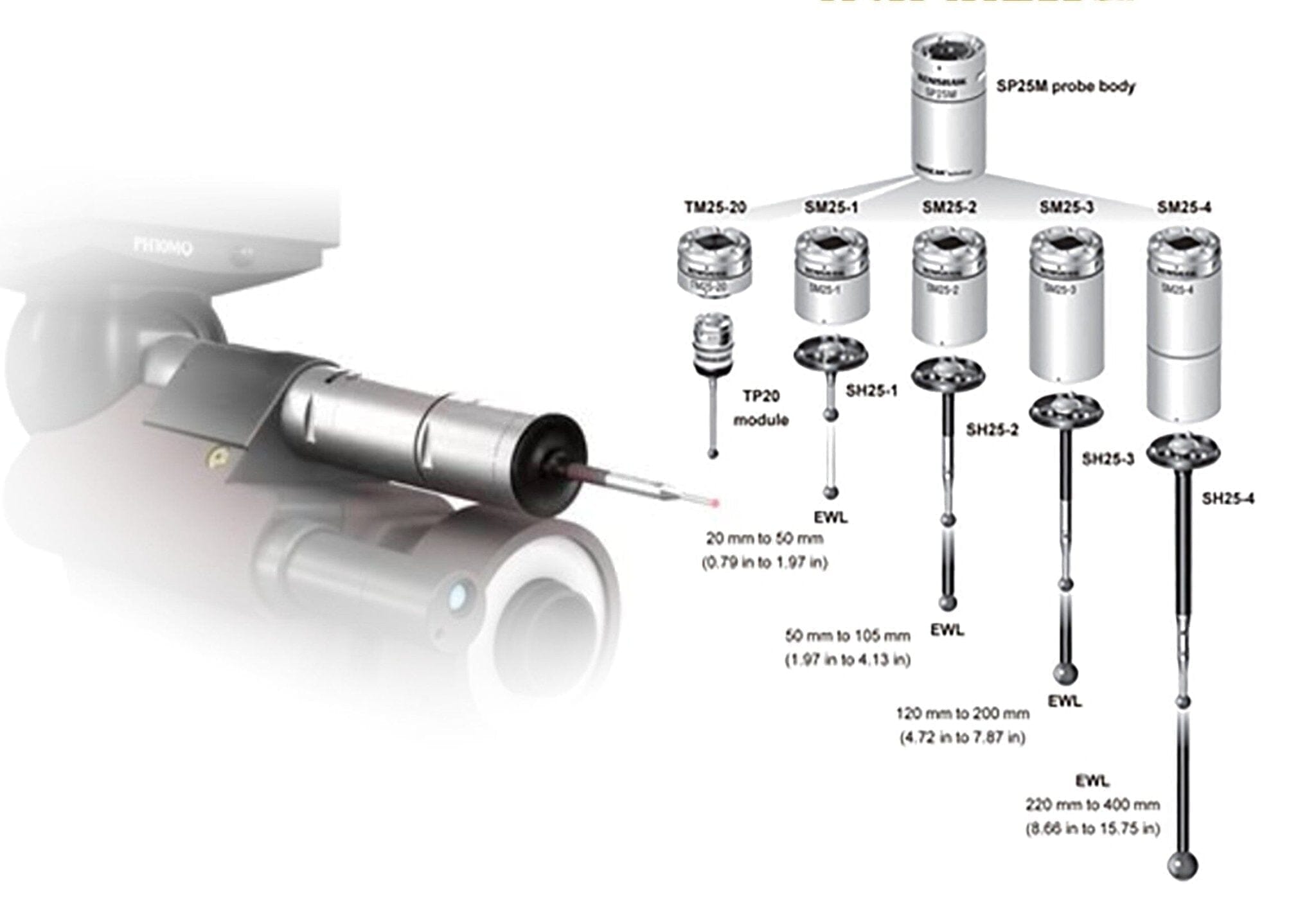

SP25M, TM25-20, and PAA1

MOUNTING
Standard
Fixed position offset from the optics

Optional
Automatic deployment mechanisms and articulating heads on select systems

CHANGE RACK
3 or 6-position
SKU: ogp-scanning-probe
Request for Quote

OGP Scanning Probe Features

The SP25M Scanning Probe provides continuous contact scanning which offers high-speed data gathering on complex surfaces, large or small variations in surface contours. Also ideal to measure a form of a feature in almost any orientation. Other advantages include:
User-Friendly Operation
With a straightforward process, users can choose a starting and ending point, and the scanning probe will seamlessly trace the part profile between these points. This approach significantly reduces both programming and measurement durations compared to using a single point probing method.

Automated Functionality

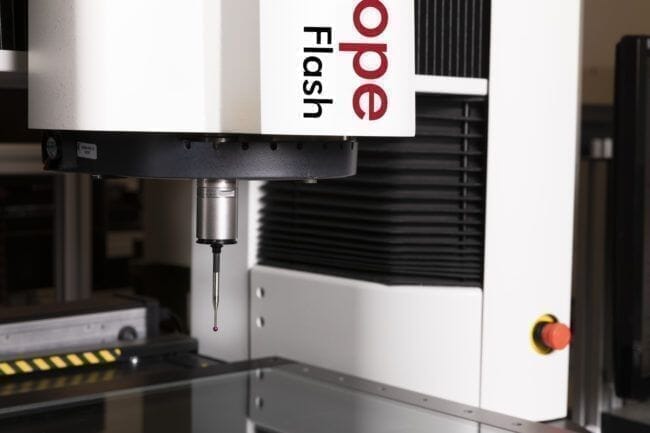

Scanning probes integrated into SmartScope® systems are positioned in fixed locations, set apart from the optics. Optionally, they can be equipped with automatic deployment mechanisms and articulating heads on specific systems, enhancing the overall automation of the process.
Scanning_Probe_Flash

Smart Data Collection
Powered by intelligent algorithms, ZONE3® metrology software directs the probe to efficiently track the part contour, gathering data points at a velocity and data sampling rate defined by the user. Notably, the scanning probe automatically adapts its point density when navigating curves, demonstrating a sophisticated and adaptive approach to data collection.
