MACH KO-GA-ME

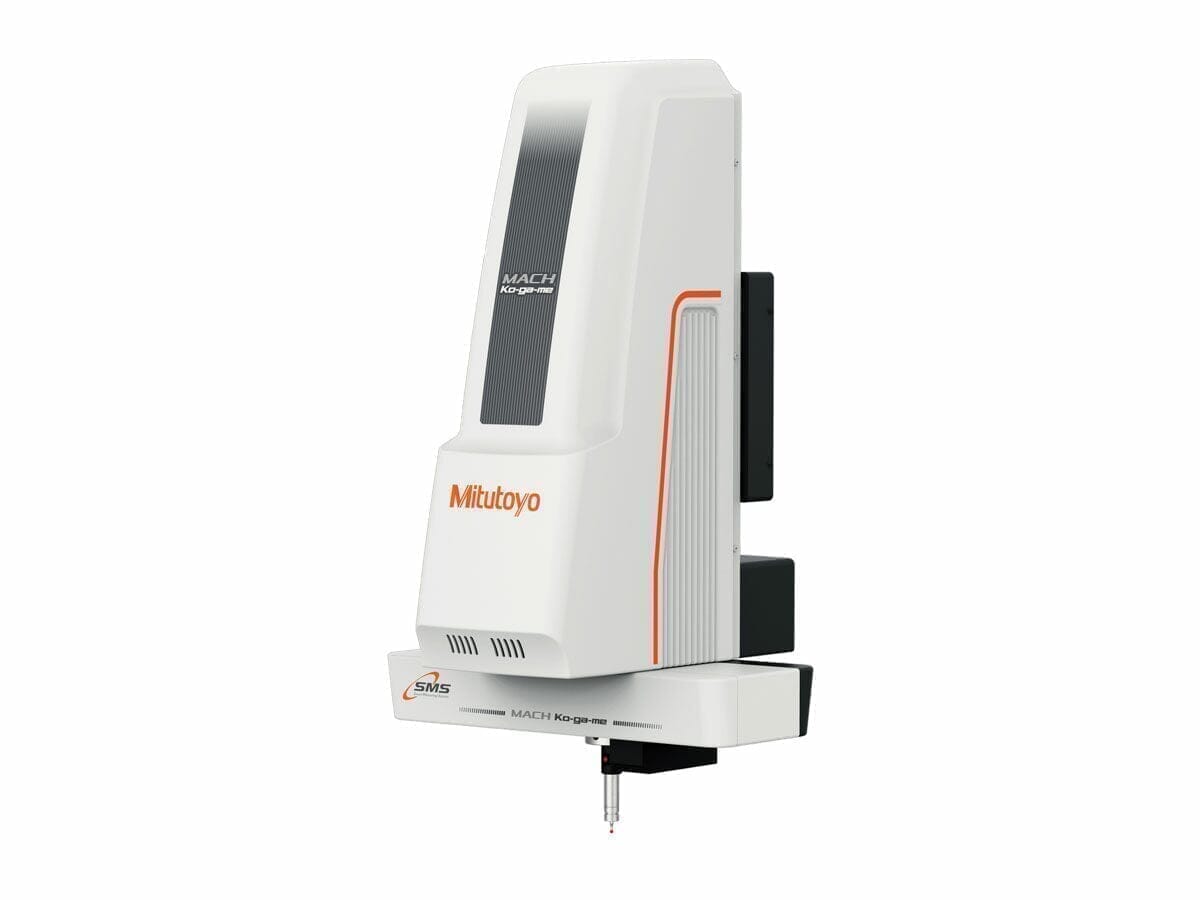

The Mitutoyo MACH Ko-Ga-Me is a versatile, compact, and automated 3D CNC CMM that can be easily configured for various processes. It is suitable for both stand-alone applications and integration into production cells.
SKU:

Product Features

Well-suited for inspecting small workpieces

Versatile compatibility with various measuring probes: touch-trigger, optical, and scanning types

Supports both manual and robotic loading for automated closed-loop control
mach-ko-ga-me-measurement-systems-mitutoyo-indicate-technologies-629516
Faster measurement feedback and compensation optimize manufacturing, minimizing scrap and enhancing throughput

Temperature compensation ensures accurate measurements within four temperature ranges: 19~21°C, 15~25°C, 10~30°C, 10~35°C

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo MACH Ko-Ga-Me is a rapid, compact, lightweight, and easily mountable Coordinate Measuring Machine (CMM). It is specifically designed for automated cell measurement solutions.

The MACH Ko-Ga-Me can be securely mounted on any sturdy frame, such as machine tools, providing comprehensive CMM capabilities while requiring minimal space compared to larger machines. It also enables in-process measurement, eliminating the need for setup or breakdown procedures.
mach-ko-ga-me-measurement-systems-mitutoyo-indicate-technologies-629516

Technical Data

Technology:
Coordinate Measuring Machine - CNC

Units:
Inch, Metric

Resolution:
0.00000079" (0.00002mm)

Guide Method:
Straight-motion hard bearing on each axis

Vibration Stand:
Not Applicable

Probe System:
PH6, PH6M

Touch Trigger Probe:
TP200

Scanning Probe:
SP25

Laser Probe:
Special Order Optical

Probe:
Special Order

Surface Roughness Probe:
Special Order
