SmartScope Flash 302

High Capacity Multisensor System That Fits on a Benchtop

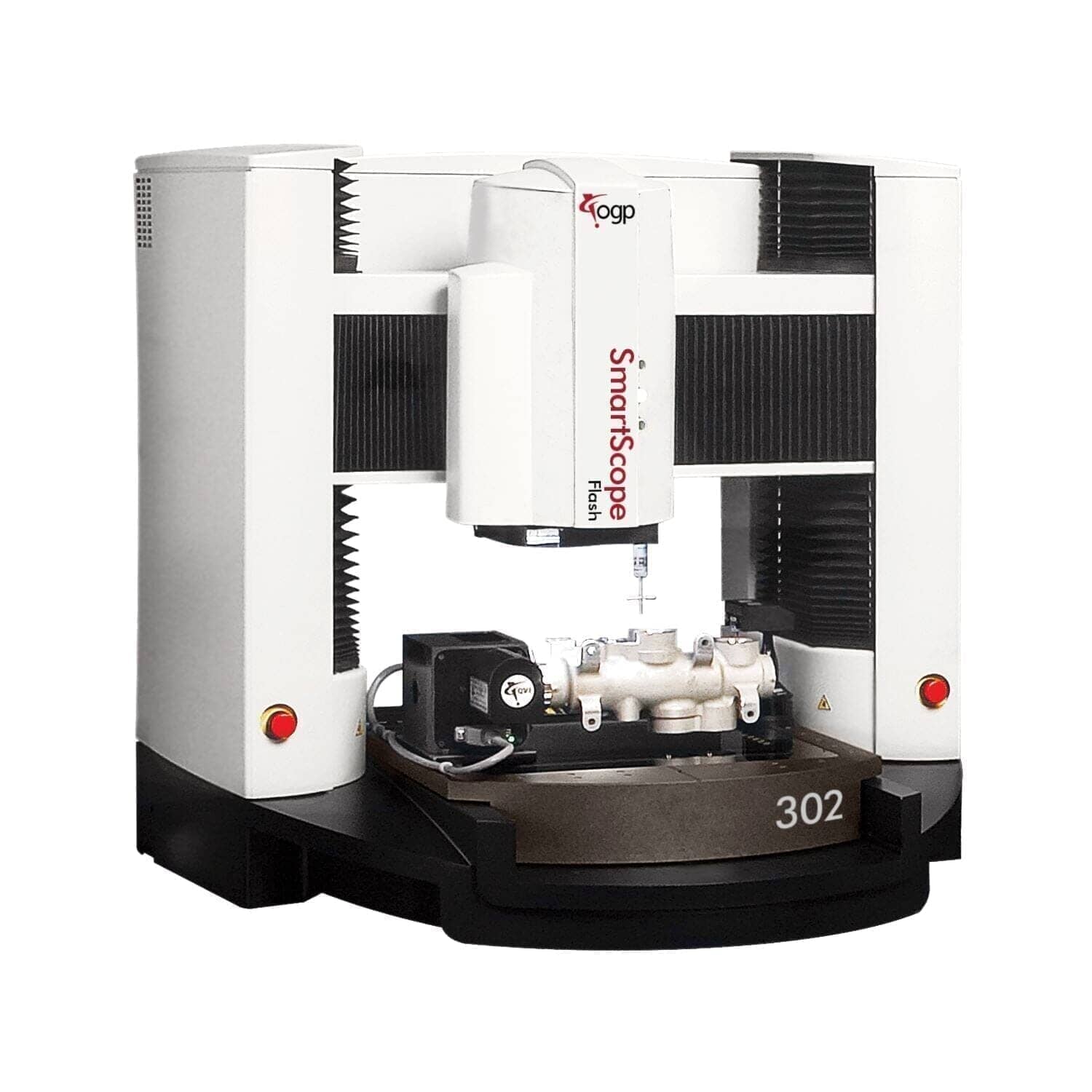

The SmartScope Flash 302 stands out as a distinctive benchtop multisensor measurement system with high capacity, marking it as one of the most adaptable benchtop systems provided by OGP.

SKU: smartscopeflash302
Request for Quote

OGP SmartScope Flash 302 Features

Designed-in Accuracy
Innovative Bridge Design Minimizes Common Errors
The bridge design of the SmartScope Flash 302 is meticulously crafted to eliminate errors commonly found in alternative designs, ensuring inherent accuracy.

Precision Optics – AccuCentric Zoom Lens of Superior Quality
Equipped with a high-quality AccuCentric zoom lens, the system automatically compensates for magnification variations at each zoom position, guaranteeing precise and consistent measurements.
ogp-smartscope-flash-302-measurement-systems-ogp-indicate-technologies-336424
Download Datasheet
Options: Touch Probe, Scanning Probe, TTL Laser, Feather Probe

Superior Illumination for Optimal Video Measurements
Achieve optimal video measurements with the SmartScope Flash 302, thanks to its standard profile light, coaxial surface light, and SmartRing light. These lighting features effectively illuminate parts from various angles, ensuring clear and accurate measurements.

Versatile Multisensor Capabilities
The system offers unparalleled versatility with optional touch probe, scanning probe, laser, and micro-probe sensors, providing a comprehensive range of measurement options to suit diverse needs.

Smartscope Flash 302 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL (MM)
Standard
300 x 300 x 250

OPTICS
Standard
AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional
Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional
Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attatchement

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Tactile Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
Learn More
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
