OGP

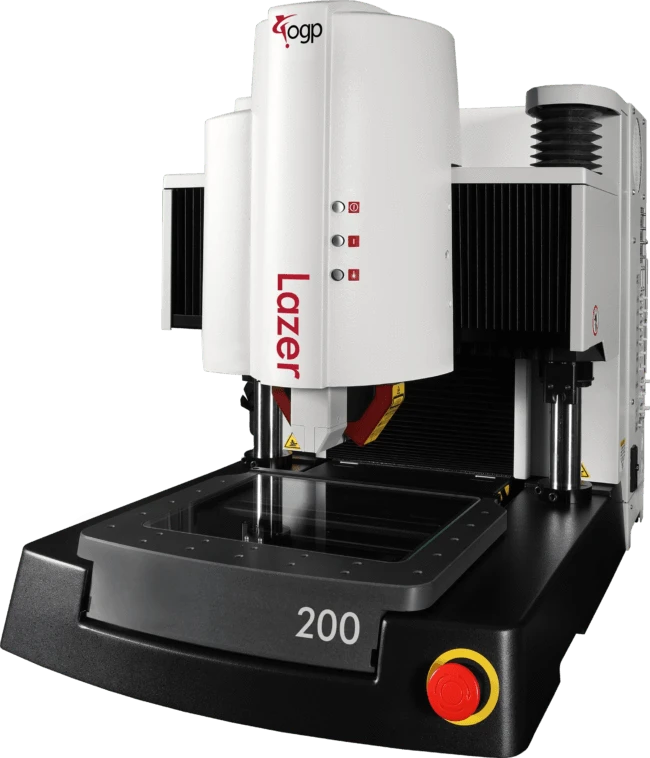

Lazer 200

Non-contact, Self-Contained Laser Metrology System

Innovative non-contact measuring machine system that uses laser scanning with video.

The Lazer 200 is a benchtop system that is based on the popular SmartScope Flash 200. This product is an innovative non-contact measurement system that utilizing laser scanning and video support for precise surface topography measurements.



Its unique "elevating bridge" design creates a compact system that can scan anywhere within its 200x200x100 mm (8x8x4") measurement volume. It also uses proven-technology DRS lasers to make high-quality non-contact laser scans of critical part surfaces.



From simple line scans to rectangular and circular scans, the Lazer 200 uses a simple point and click interface. Integral on-axis video imaging is used to locate part features, set datums, and select laser scan start and endpoints. White LEDs provide surface illumination, and profile illumination can be used to find part edges.



MeasureMind 3D MultiSensor metrology software is standard with the Lazer 200 and it is easily programmable for a variety of scanning tasks.

    SKU: ogplazer200
    Request for Quote

    OGP Lazer 200 Features

    Innovative Elevating Bridge Design – Provides for a large working area in a compact unit.

    Z-axis Tracking – Keeps the DRS laser within its capture range throughout the scan.
    lazer-200-measurement-systems-ogp-indicate-technologies-844374
    Integral On-axis Video Imaging – Used to locate the part, set datums, and choose laser scan start and stop points.

    OGP Lazer 200 Configurations

    Technical

    Sensors & Accessories

    Software

    Technical Data

    XYZ TRAVEL (MM)
    Standard
    200 x 200 x 100

    ILLUMINATION
    Linear white LED surface, LED substage

    LASER SCANNING RESULUTION
    0.125 µm

    Sensors

    Laser Sensor
    Digital Range Sensor (DRS) Laser
    Determines Surface Heights, Through Laser Triangulation
    Learn More
    ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529

    Accessories

    Accessories
    Rotary Indexes
    Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
    Learn More
    ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159

    Software

    Zone 3

    The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
    Learn More
    Gold_QVI_Training_Part_-_ZONE3_Programming_Points

    Measure-X

    Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

    With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
    Learn More
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

    MeasureMind 3D

    MeasureMind 3D, a comprehensive multi-sensor metrology software, enables the measurement of intricate components and provides essential support for various sensors, including single and compound rotary indexers. This flexibility empowers operators to conduct measurements on OGP systems, covering a spectrum from simple geometric forms to intricate free-form shapes.
    Learn More
    MeasureMind-3D-OGP-Indicate-Technologies
