Itaca FlexGauge T-Series

Programmable 3D measuring machine that can be set up to measure a wide variety of parts or families of similar parts.





Itaca FlexGauge T-Series: Precision 3D Measuring Machines for Diverse Parts

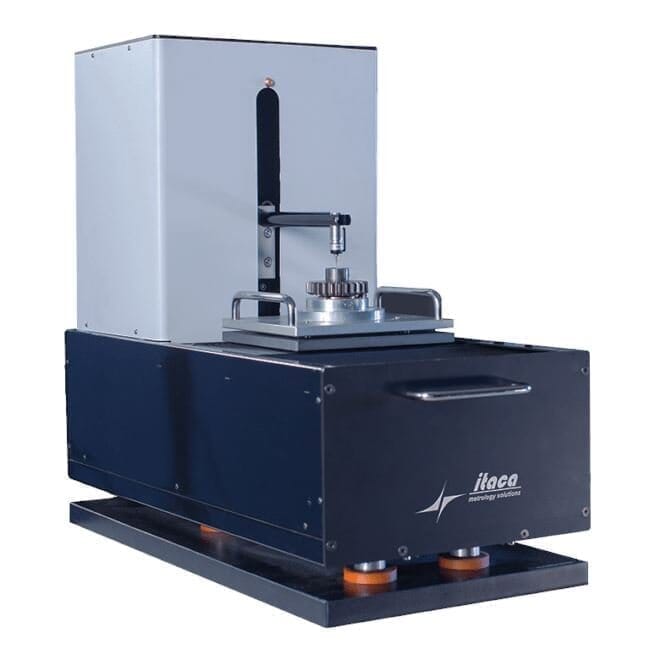

Itaca FlexGauge T-Series stands as a category of programmable 3D measuring machines designed for versatility, enabling the measurement of various parts or families of similar components. These high-accuracy systems are specifically engineered for shop floor applications, featuring air-bearing stages and a high-performance motion controller. The T-Series machines excel in performing measurements on small, intricate parts with complex features and tight tolerances, including gears, valve bodies, CV joints, racks, and ballscrews.

    SKU ITI-itacaflexgauget-series
    Quantity
    REQUEST FOR QUOTE
    Request for Demo
    Itaca FlexGauge C-Series Configurations
    High Speed Probing
    Single or dual probe configurations
    Touch-Trigger or Scanning Probe
    itaca-flexgauge-c-series-measurement-systems-ogp-indicate-technologies-149854
    Shop Floor Friendly with Built-In Thermal Compensation
    Flexible Software
    X-Axis Travel Extensions up to 3 meters
    Technical Specifications
    Sensors and Accessories
    Software
    Technical Specifications
    Technical Data
    XYZ TRAVEL (MM)
    Standard
    1500 – 900 x 1500 x 200
    1550 – 1250 x 1500 x 200
    1552 – 1500 x 1500 x 200
    OPTICS
    Standard
    6.5:1, 10 position motorized zoom lens
    Optional
    Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x
    ILLUMINATION
    Standard
    LED VectorLight SP programmable ring light with 6 rings and 7 sectors, LED backlight, LED square-on surface light
    Optional
    LED VectorLight SF programmable ring light with 6 rings and 8 sectors and LED square-on surface light (reduced working clearance)
    Sensors and Accessories
    Sensors
    touch-probe-tp20tp200-measurement-accessory-ogp-indicate-technologies-383655
    Tactile Sensor
    Touch Probe
    Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
    Learn More
    scanning-probe-measurement-accessory-ogp-indicate-technologies-350590
    Tactile Sensor
    Scanning Probe
    Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
    Learn More
    Software
    ZONE3
    zone3-ssa-pro-promotion-indicate-technologies-indicate-technologies-212818
    THE WORLD'S MOST COMPREHENSIVE METROLOGY SOFTWARE
    The ZONE3® Metrology Software introduces a completely novel approach to interacting with multisensor measurement systems, delivering measurements that are faster, more straightforward, and more productive than ever. Its interface distinctly presents the connections among components such as parts, sensors, datum alignments, and machine accessories.
    Learn More
    Product Features
    Precise Video Metrology
    AccuCentric motorized zoom lens ensures accurate measurements by automatically compensating for magnification changes at each zoom position.
    Dependable Precision
    The system incorporates a heavy-duty cast base and an integral compound stage with Y-axis center drive, providing a stable platform for reliable and precise metrological operations.
    Versatile Multisensor Capabilities
    The system offers versatility with optional touch probes, lasers, and micro-probes, enabling a range of measurement options to suit various applications.
    Options: Touch Probe, Scanning Probe, TTL or DRS Laser, Feather Probe, Rainbow Probe, TeleStar Probe
