SmartScope SP 463

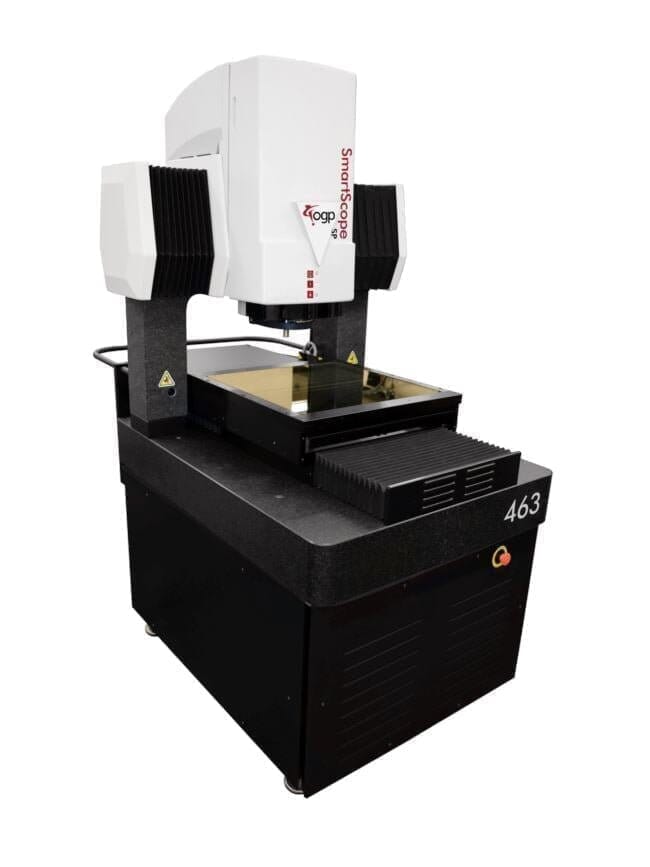

Rugged, floor model system of proven design to handle larger, heavier parts.



Crafted for peak scanning probe performance, SmartScope® SP systems are meticulously designed, commencing with a robust base structure. The system mechanics are tailored to enhance dynamic data acquisition, a crucial element for optimal scanning probe functionality. The performance specifications for SP models align closely with ISO 10360 standards.

SKU: smartscopesp463

OGP SmartScope SP 463 Features

Durable Floor Model System for Workshop Applications
This robust floor model system, characterized by a well-established design, is engineered to efficiently manage larger and heavier parts within a workshop environment.

Independent Motion with Fixed Bridge Design
Featuring a fixed bridge design, this system effectively isolates primary axis motions, ensuring complete independence without any mutual influence.
ogp-smartscope-sp-463-measurement-systems-ogp-indicate-technologies-118087_fd017625-2550-435c-a3d1-45af7b0e6bbe
Superior Volumetric Accuracy through Rigidity and Stiffness
The exceptional rigidity and stiffness of this transport solution contribute to its outstanding volumetric accuracy, making it a reliable choice for handling various tasks.

Options: TeleStar TTL Laser

Smartscope SP 463 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL
Standard
450 x 610 x 300 mm

OPTICS
Standard
OGP SP zoom optics with AccuCentric autocompensation, one standard front lens and 5.5x optical zoom offer up to 60:1 digital/optical magnification range with maximum 90 mm WD

Optional
2x, 5x lens

ILLUMINATION
Standard
All monochromatic LED: substage profile, coaxial
surface, SmartRing™ ring light

Optional
LED focus grid illuminator

Sensors

Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
TeleStar Plus Through-the-Lens (TTL) Laser
The TeleStar Plus TTL laser utilizes distinctive interferometric sensing technology, providing exceptional measurement resolution, accuracy, and capability across Fusion, SmartScope SP, and SmartScope Quest/Vantage systems.
ogp-telestar-plus-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-999020

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

OGP SmartScope 3D Multisensor Measurement System
