Dual Rotary Indexers
Mount two rotary indexers together with their axes perpendicular to one another to add two more axes of part positioning to select SmartScope® systems.

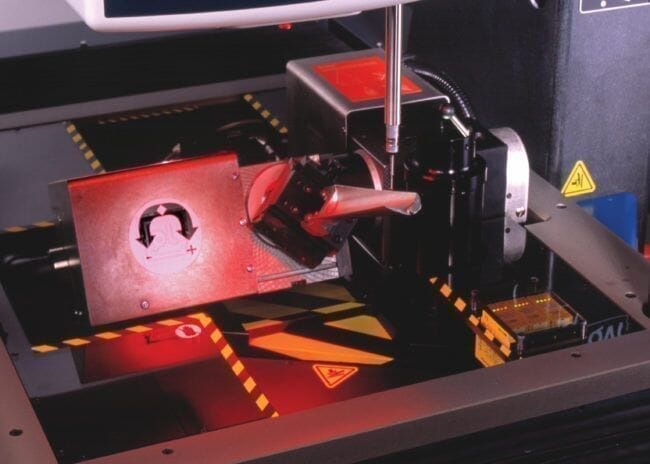

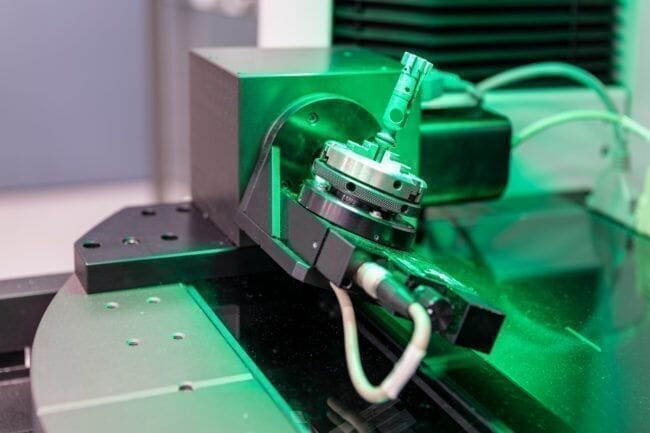

The part under inspection is attached to the secondary rotary, which is mounted to the primary rotary. The part can be rotated in two different axes to provide a means of bringing features with compound angles into the line of sight of the optical sensor axis and within the reach of available laser sensors or touch probes for measurement.
Several combinations of rotaries can be configured, depending on the application and the available measurement envelope of the machine.
