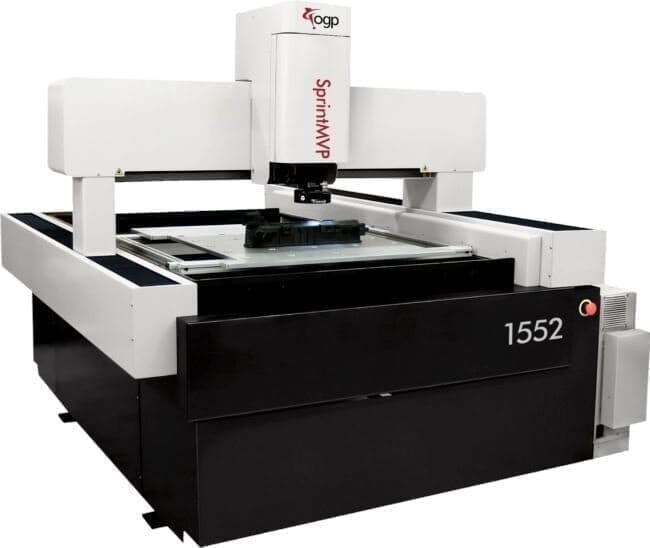

OGP Sprint MVP 1500│1550│1552 Features
Moving bridge design, for convenient part loading and fixturing
Motorized zoom lens system with high resolution digital color camera
Full function Measure-X metrology software for fully automatic operation
Technical Specifications
Sensors and Accessories
Software
Technical Data
XYZ TRAVEL (MM)
Standard
1500 – 900 x 1500 x 200
1550 – 1250 x 1500 x 200
1552 – 1500 x 1500 x 200
OPTICS
Standard
6.5:1, 10 position motorized zoom lens
Optional
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x
ILLUMINATION
Standard
LED VectorLight SP programmable ring light with 6 rings and 7 sectors, LED backlight, LED square-on surface light
Optional
LED VectorLight SF programmable ring light with 6 rings and 8 sectors and LED square-on surface light (reduced working clearance)
Sensors
Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.
Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.
Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Laser Sensor
Telestar Probe
Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
Download Datasheet: Telestar Probe
Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
ZONE3
THE WORLD'S MOST COMPREHENSIVE METROLOGY SOFTWARE
The ZONE3® Metrology Software introduces a completely novel approach to interacting with multisensor measurement systems, delivering measurements that are faster, more straightforward, and more productive than ever. Its interface distinctly presents the connections among components such as parts, sensors, datum alignments, and machine accessories.
