SmartScope ZIP 250

The industry standard for video measurement machines.

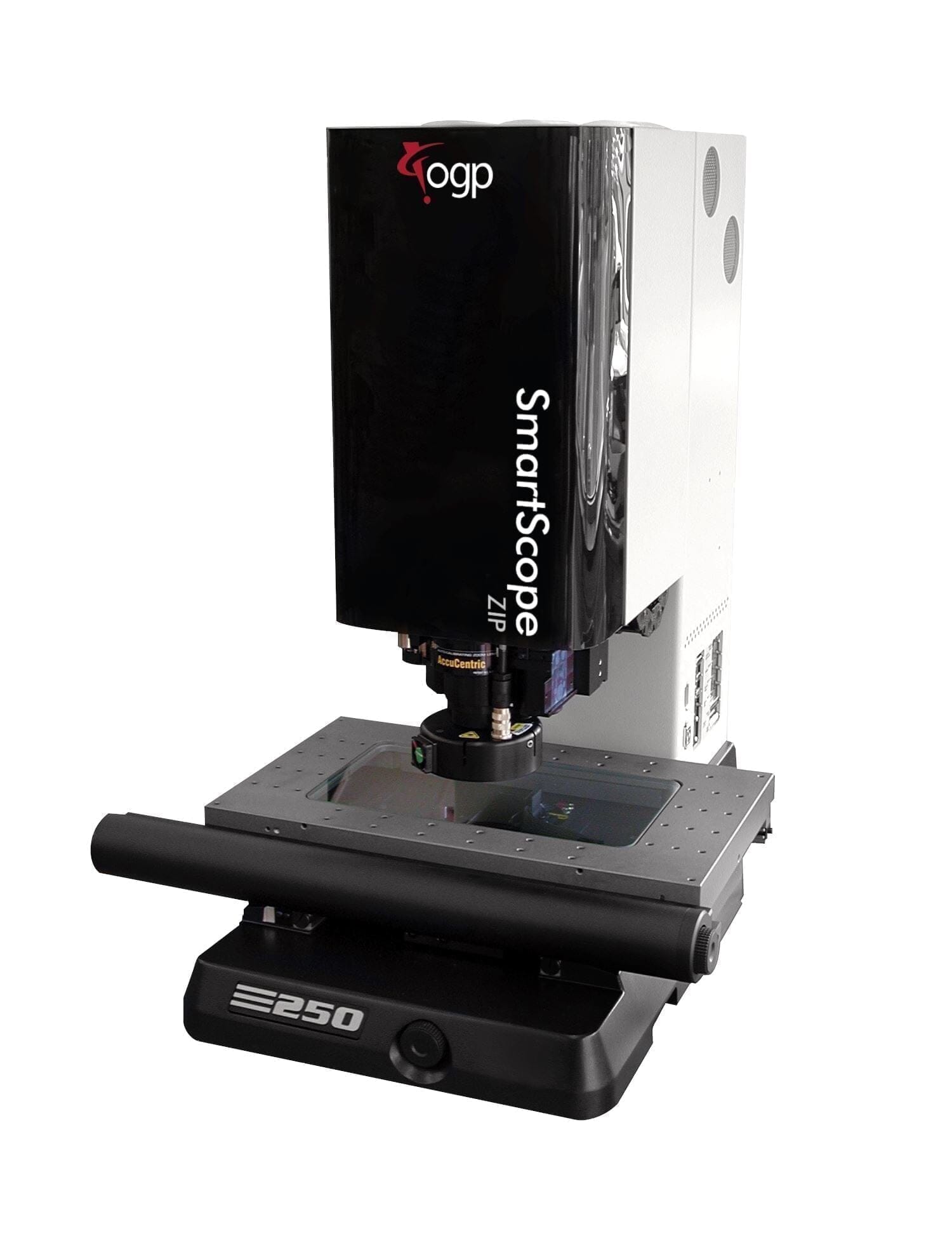

The SmartScope ZIP® 250 establishes a benchmark in benchtop metrology, boasting a robust design that prioritizes both speed and accuracy. With a swift stage speed, the system ensures maximum throughput and short cycle times without compromising precision. The inclusion of a sturdy cast base with Y-axis center drive further guarantees metrological stability, contributing to the system's durability and reliability.

SKU: smartscopezip250
Request for Quote

OGP SmartScope ZIP 250 Features

Precise Video Metrology
AccuCentric motorized zoom lens ensures accurate measurements by automatically compensating for magnification changes at each zoom position.

Dependable Precision
The system incorporates a heavy-duty cast base and an integral compound stage with Y-axis center drive, providing a stable platform for reliable and precise metrological operations.
ogp-smartscope-zip-250-measurement-systems-ogp-indicate-technologies-116079_cd11fc5c-e95a-4955-be63-00cb903d309d
Download Datasheet
Versatile Multisensor Capabilities
The system offers versatility with optional touch probes, lasers, and micro-probes, enabling a range of measurement options to suit various applications.

Options: Touch Probe, Scanning Probe, TTL or DRS Laser, Feather Probe, Rainbow Probe, TeleStar Probe

Smartscope ZIP 250 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL (MM)
Standard
North America: 300 x 150 x 200
International: 250 x 150 x 200

Optional
International: Extended X axis, 300

OPTICS
Standard
AccuCentric auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional
Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional
Coax Light: Tungsten Fiber-Optic
Ring Lights: Red, Green, or Blue SmartRing; Standard or Low Incidence VuLight; Tungsten Fiber-Optic Ring mounted below, integrated with, or in lieu of SmartRing

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Learn More
ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.

Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Learn More
ogp-rainbow-probe-measurement-systems-ogp-indicate-technologies-646293
Laser Sensor
Telestar Probe
Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
Learn More
ogp-telestar-probe-measurement-systems-ogp-indicate-technologies-931025

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
Learn More
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
