OGP

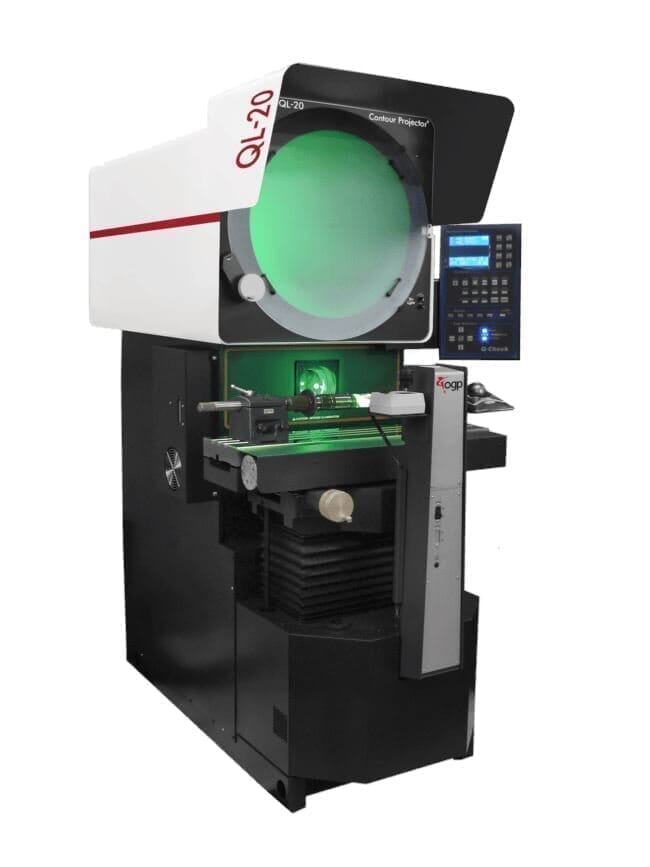

Contour Projector QL-20

High Capacity Optical Comparator

The most popular shop floor comparator, providing an extensive range of features in a hardened, work-ready system.



The QL-20 Contour Projector stands as a precision instrument explicitly crafted for shop floor applications. Boasting a multitude of standard features and a variety of options, the QL-20 empowers users to tailor the system to address their specific measurement requirements. With an upright and unreversed image, along with a robust cast iron, nickel-plated worktable, the QL-20 ensures high load capacity for reliable and accurate measurements

    SKU: ogpql-20
    Request for Quote

    OGP Contour Projector QL-20 Features

    Fast and easy measurements
    The system offers a 24-inch diameter glass screen at eye level with a 20-inch viewing area, along with a conveniently located Digital Readout (DRO) for quick and efficient measurements.

    Keep lenses safe and ready for use Equipped with a standard fixed lens and the option for a motorized 5-position internal lens turret, ensuring the lenses are secure and readily available.

    Adjustable for variable intensity light control
    Featuring versatile TruLight LED lighting illumination, the system allows for adjustable and precise control of light intensity.
    contour-projector-ql-20-measurement-systems-ogp-indicate-technologies-546998
    Ideal for real-world, shop floor environments in a benchtop configuration
    With a high load capacity and a nickel-plated worktable, the system is well-suited for practical, benchtop setups, accommodating large and heavy machined parts and fixtures.

    Full automation
    The system offers optional VidiProbe video measurement and eCAD virtual chart gage systems for comprehensive and automated measurement capabilities

    OGP Contour Projector QL-20 Configurations

    Technical

    Options/Accessories

    Software

    Technical Data

    XY TRAVEL
    Standard
    15” x 9”

    Optional
    15” x 10”, 18” x 9”, 18” x 10”

    OPTICS
    Lens Options
    10x, 20x, 31.25x, 50x, 62.5x, 100x

    ILLUMINATION
    Standard
    Profile Light

    Optional
    Coaxial Light

    SCREEN
    24” diameter ground glass screen, with 20″ viewing area, integral hood, 90° centerlines and clips for mounting standard overlay charts.

    WORKTABLE
    Standard
    Motorized, heavy-duty nickel-clad cast-iron with dovetail slot

    Optional
    ±7.5° helix angle range

    Options/Accessories

    Optical Comparator Overlays
    OGP optical comparator charts are produced from CAD generated masters scribed on a high precision plotter for uniform line weight and accurate location.
    Learn More
    optical-comparator-overlays-ogp-centerline-screens-indicate-technologies-394289
    Optical Comparator Fixtures
    Indicate Technologies and OGP offer a full line of comparator fixtures to make measurements more convenient.

    Staging centers
    V-blocks
    Rotary staging vise
    Learn More
    optical-comparator-fixtures-ogp-indicate-technologies-905222

    Software

    Measure-X

    Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

    With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
    Learn More
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

    eCAD

    Virtual Charts Direct From Cad.

    eCAD is a new electronic overlay chart package consisting of software and internal comparator hardware that allows a CAD model to be used to project a profile tolerance band onto the comparator screen
