OGP

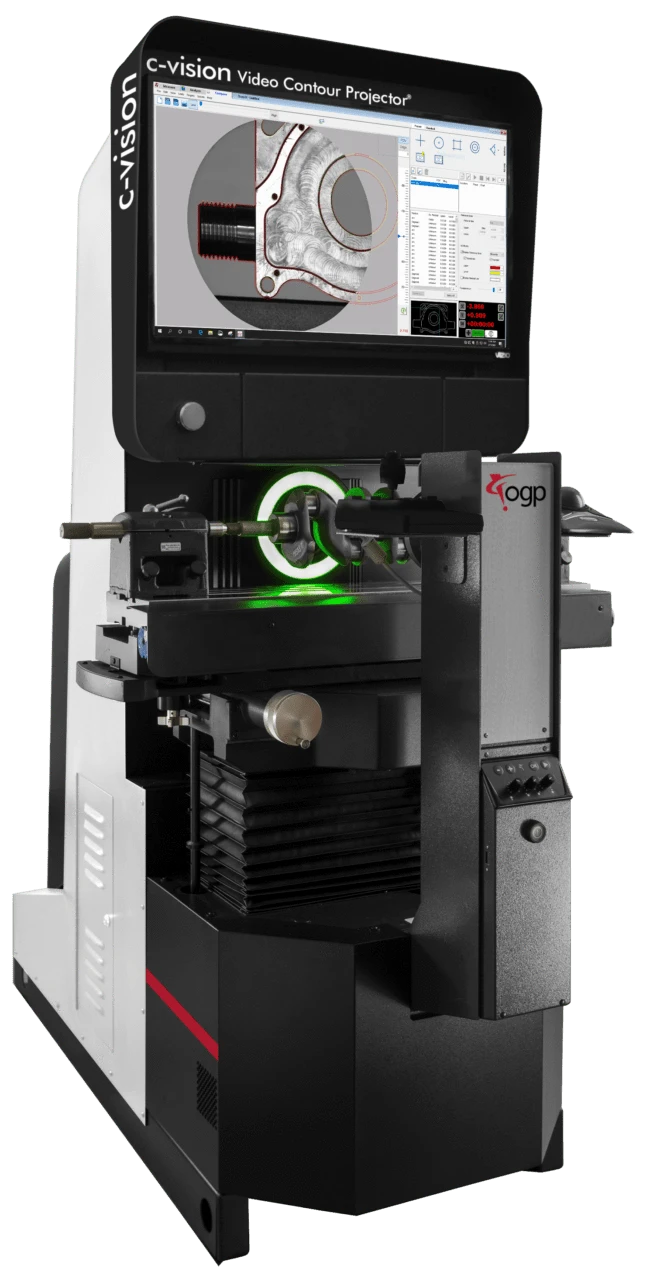

c-vision Floor Model

The ultimate shop floor hardened, high payload capacity video contour projector.



The c-vision Floor Model Video Contour Projector stands as the ultimate shop floor measuring system, tailored for large and heavy parts. With a high payload capacity, it seamlessly incorporates advanced automatic video measurement capabilities. The inclusion of precision optics and Measure-X Compare electronic overlay charts simplifies the process of conducting comparative inspections, making it an efficient solution for shop floor precision measurements.

    SKU: ogpc-visionfloormodel
    Request for Quote

    OGP c-vision Floor Model Features

    Accurate Imaging with Minimal Distortion Over 4-Inch Field of View Area
    - Telecentric Optics Optical System with Advanced Digital Imaging Technology
    - Dual Magnification with Motorized Turret and Up to 4-Inch Large Field of View and 3-Inch Large Depth of Field

    Shop-Hardened and Convenient Design for Shop Floor Use
    - Tough Construction, High Load Capacity, and Large Viewing Screen
    - Large Travel 15” x 9” Motorized XY Table Motion with Precision Linear Scales and Manual Fine Adjusters
    - Integrated Controller with Keyboard Mounted on a Convenient Fold-Down Tray
    c-vision-floor-model-measurement-systems-ogp-indicate-technologies-233928
    Versatile Measurement Capabilities and Analysis Features
    - Create and Run Measurement Routines
    - Perform "Walk-Up and Measure" Tasks
    - Fit Measurement Data to 2D CAD for Profile and GD&T Analysis
    - Measure-X Compare Virtual Chart Gage Software Displays Both Standard and Custom Overlay Chart

    OGP c-vision Floor Model Configurations

    Technical

    Accessories

    Software

    Technical Data

    XYZ TRAVEL
    Standard
    15” x 9” x 2”

    Optional
    15” x 10” x 2”
    18” x 9” x 2”
    18” x 10” x 2”

    OPTICS
    Standard
    Telecentric, upright and corrected image with 4-inch low mag field of view and 4X high mag lens

    Optional
    10X high mag lens in lieu of 4X

    ILLUMINATION
    Standard
    Profile Light

    Optional
    Coaxial Light

    Oblique Surface Illumination

    WORKTABLE
    Standard
    Motorized, heavy-duty nickel-clad cast-iron with dovetail slot

    Optional
    ±7.5° helix angle range

    OGP c-vision Product Explainer Video

    Accessories

    Rotary Indexers
    Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
    Learn More
    ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-381463
    Optical Comparator Fixtures
    Indicate Technologies and OGP offer a full line of comparator fixtures to make measurements more convenient.

    Staging centers
    V-blocks
    Rotary staging vise
    Learn More
    optical-comparator-fixtures-ogp-indicate-technologies-905222

    Software

    Measure-X

    Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

    With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
