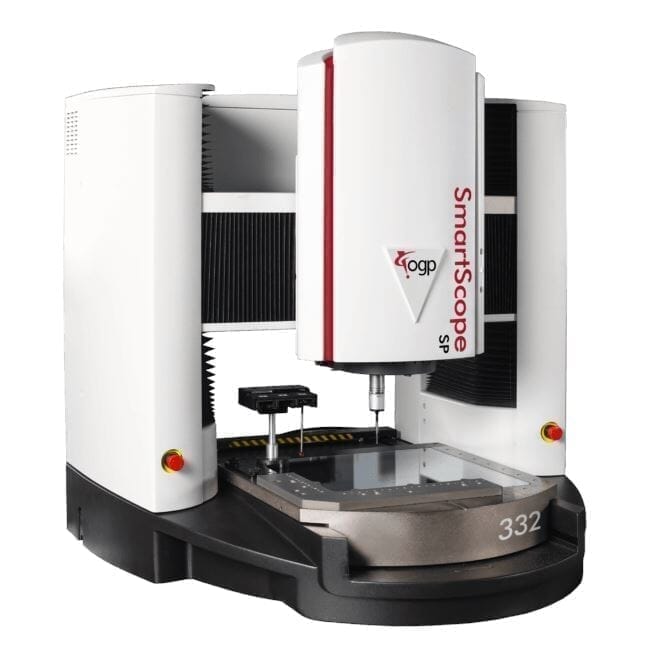

SmartScope SP 332

Large working volume on a benchtop system.



The SmartScope® SP systems are crafted to deliver peak performance when it comes to scanning probes. Beginning with a sturdy base structure, the mechanics of the system are meticulously engineered to enhance dynamic data acquisition, a crucial factor for optimal scanning probe performance. The majority of performance specifications for SP models adhere to the ISO 10360 standards.

SKU: smartscopesp332

OGP SmartScope SP 332 Features

Unrivaled Performance in a Space-Efficient Benchtop Format
High performance seamlessly integrated into a conveniently designed benchtop solution.

Precision Elevated-Bridge Design for Optimal Spatial Efficiency
Experience machined-in squareness and a spacious work envelope while conserving valuable floor space.
smartscope-sp-332-measurement-systems-ogp-indicate-technologies-771994
Friction-Free Motion and Stiffness: The Key to Superlative Scanning Probe Performance
Unlock exceptional scanning probe capabilities with an air-bearing Z-axis motion system.

Options: TeleStar TTL Laser

Smartscope SP 332 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL
Standard
300 x 300 x 250 mm

OPTICS
Standard
OGP SP zoom optics with AccuCentric autocompensation, one standard front lens and 5.5x optical zoom offer up to 60:1 digital/optical magnification range with maximum 90 mm WD.

Optional
2x, 5x lens

ILLUMINATION
Standard
All monochromatic LED: substage profile, coaxial surface, SmartRing ring light

Optional
LED focus grid illuminator

Sensors

Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
TeleStar Plus Through-the-Lens (TTL) Laser
The TeleStar Plus TTL laser utilizes distinctive interferometric sensing technology, providing exceptional measurement resolution, accuracy, and capability across Fusion, SmartScope SP, and SmartScope Quest/Vantage systems.
ogp-telestar-plus-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-999020

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

OGP SmartScope 3D Multisensor Measurement System
