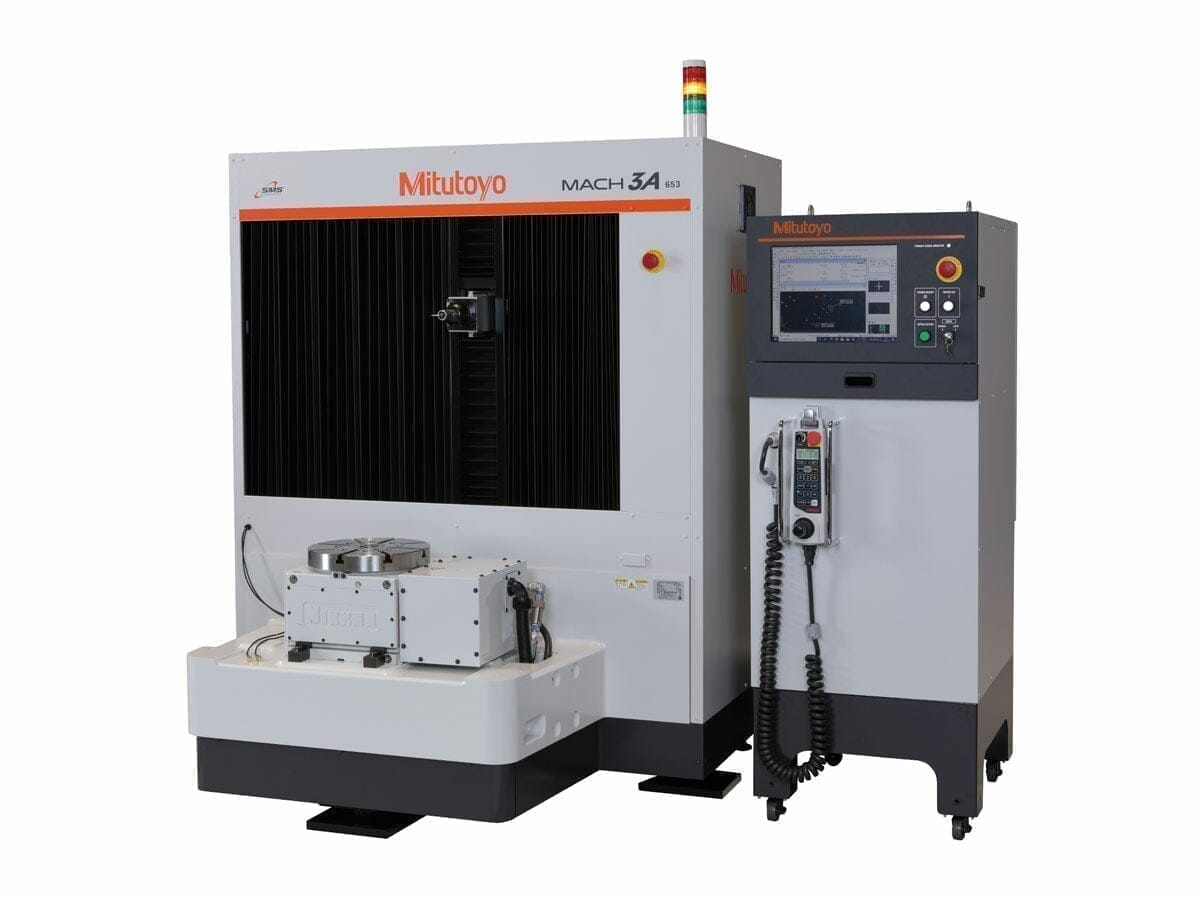

MACH-3A

The MACH 3A CNC CMM is specifically engineered for continuous 24-hour operation. With enhanced drive speed, acceleration, and measuring speed, it delivers exceptional throughput, positioning it among the fastest horizontal CNC CMMs available in the market.
SKU:

Product Features

The MACH-3A offers world-class acceleration, measuring speed, and drive speed, resulting in cost reductions as an automated measurement system.

Its horizontal-axis design allows seamless integration with the same workpiece handling and routing used by processing machines.
mach-3a-mitutoyo-indicate-technologies-207227
With an improved structural design, air-free operation, and an incorporated control unit and PC, the MACH-3A requires minimal maintenance.

Temperature compensation ensures accuracy within four different temperature ranges: 66.2~69.8°F (19~21°C), 59~77°F (15~25°C), 50~86°F (10~30°C), 50~95°F (10~35°C)

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo MACH-3A is a horizontal-type CNC Coordinate Measuring Machine (CMM) that integrates the CMM controller and host computer within the main unit.

This design optimizes space utilization on the shop floor, resulting in a compact footprint. The all-in-one superior structural design ensures stable and reliable operations for continuous measurements on the production line.

With its dust resistance and around-the-clock capability, the MACH-3A CMM offers high reliability in demanding manufacturing environments.
mach-3a-mitutoyo-indicate-technologies-207227

Technical Data

Technology:
Coordinate Measuring Machine - CNC

Units:
Inch, Metric

Resolution:
0.000004" (0.0001mm)

Guide Method:
Linear guide each axis

Vibration Stand:
Not Applicable

Probe System:
PH10MQ

Touch Trigger Probe:
TP7,TP20

Scanning Probe:
SP25

Laser Probe:
Special Order Optical

Probe:
Special Order

Surface Roughness Probe:
Special Order
