SmartScope Flash 635

High speed multisensor dimensional measurement system for large parts.

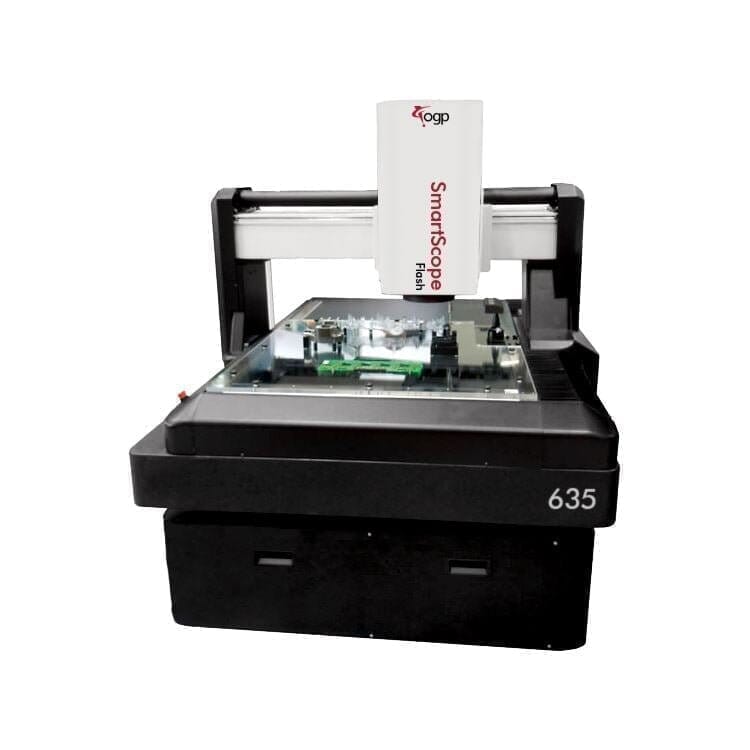

The SmartScope® Flash 635 is an advanced 3D multisensor dimensional measuring system designed for swift and stable measurements of large parts. Featuring a robust orthogonal structure with a granite base and an extruded, lightweight aluminum bridge, it ensures measurement stability. The measurement process involves the instrument head traversing along the X, Y, and Z axes, while the stationary part undergoes measurement.

SKU: smartscopeflash635
Request for Quote

OGP SmartScope Flash 635 Features

Floor Model, Moving Bridge, Air-Bearing Y-axis

Precision Optics – Superior AccuCentric Zoom Lens with Automatic Magnification Compensation

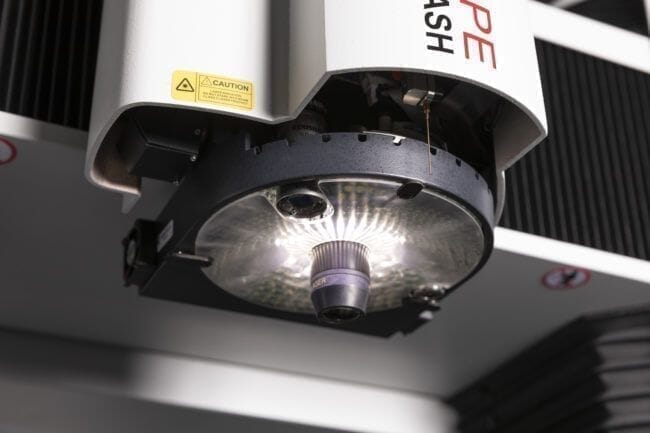

Benefit from precision optics with the inclusion of a high-quality AccuCentric zoom lens. This lens automatically compensates for magnification variations at each zoom position, ensuring accurate measurements.

High Speed Enhances Productivity – Swift Acceleration and Velocity Across All Three Measurement Axes
Experience heightened productivity with high acceleration and velocity in all three measurement axes. This speed enhancement contributes to efficient and swift measurement processes.
ogp-smartscope-flash-635-measurement-systems-ogp-indicate-technologies-795778_e714411b-a59d-48fd-b0cc-055749e6da7c
Download Datasheet
High Reliability Transport – Robust Drive System for Long-Term Reliability
Ensure long-term reliability with a rigid drive system that provides a robust transport mechanism. This feature enhances the overall stability and dependability of the measurement system.

Multisensor Versatility – Optional Non-Contact Sensors and Touch Probes
Enjoy versatile measurement capabilities with optional non-contact sensors and touch probes. This multisensor functionality allows for a diverse range of measurement options to suit various needs.

Options: Touch Probe, Scanning Probe, TTL or DRS Laser, Feather Probe, Rainbow Probe

Smartscope Flash 635 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL (MM)
Standard
635 x 635 x 200

OPTICS
Standard
AccuCentric auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional
Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional
Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Learn More
ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.

Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Learn More
ogp-rainbow-probe-measurement-systems-ogp-indicate-technologies-646293

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
Learn More
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

OGP SmartScope 3D Multisensor Measurement Systems
