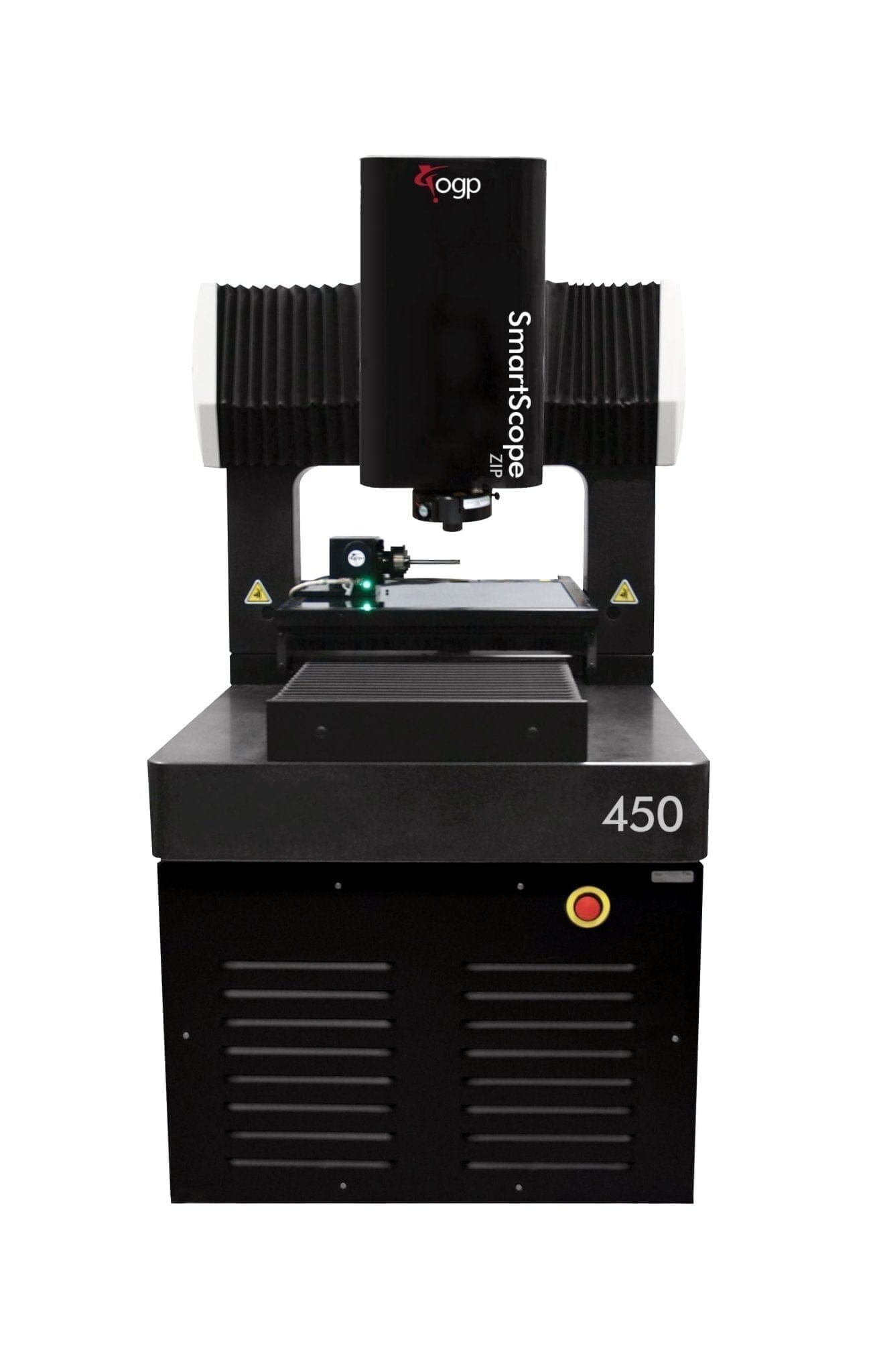

SmartScope ZIP 450

Heavy-duty multisensor measurement system.

The SmartScope ZIP® 450, a floor model metrology system, excels in providing both video and multisensor measurements tailored for large parts. Renowned for its remarkable reliability and demonstrated metrological performance, this system has traditionally excelled in video measurement. However, it also offers versatility by being equipped with contact and non-contact probes, along with the TTL laser, expanding its capabilities to address diverse measurement requirements.



Each SmartScope ZIP 450 is multisensor capable. Simply add scanning probe, laser, touch probe, or micro-probing sensors and you’ll measure your most complicated parts in a single setup.

SKU: smartscopezip450

OGP SmartScope ZIP 450 Features

Floor Model, Fixed Bridge

Precise Video Metrology
The AccuCentric® motorized zoom lens ensures accuracy by automatically compensating for magnification changes at each zoom position during video metrology.

Built-in Measurement Stability
Utilizing a granite base and bridge, the system establishes a rigid and orthogonal structure, contributing to inherent measurement stability.
ogp-smartscope-zip-450-measurement-systems-ogp-indicate-technologies-167623
Download Datasheet
Versatile Multisensor Capabilities
With optional non-contact sensors and touch probes, the system offers versatility, accommodating different measurement approaches for diverse applications

Options: Touch Probe, Scanning Probe, TTL or DRS Laser, Feather Probe, Rainbow Probe, TeleStar Probe

Smartscope ZIP 450 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL (MM)
Standard
450 x 450 x 200

Optional
Extended Y axis, 610
Extended Z axis, 300

OPTICS
Standard
AccuCentric auto-compensating zoom, motorized;
1.0x lens; 2.0x lens attachment; 1.0x adapter tube

Optional
Focus Grid Projector: LED or Tungsten fiber-optic sources
Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer
Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x
Laser Lenses: 2.0x (included with TTL Laser), 5.0x
Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x
Factory Installed Adapter Tubes: 0.67x, 2.0x

ILLUMINATION
Standard

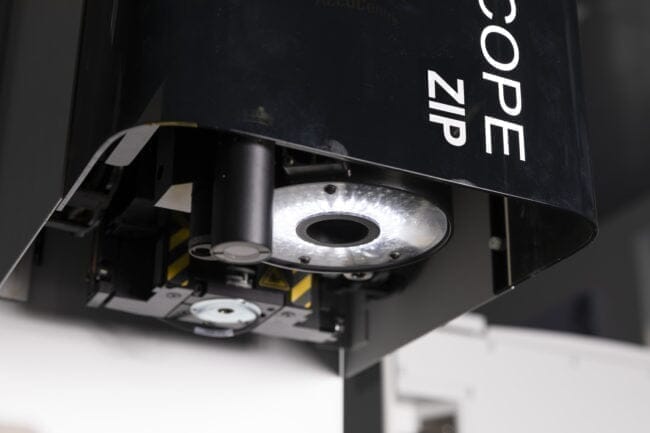

Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional
Coax Light: Tungsten Fiber-Optic
Ring Lights: Red, Green, or Blue SmartRing; Standard or Low Incidence VuLight; Tungsten Fiber-Optic Ring mounted below, integrated with, or in lieu of SmartRing

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.

Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
ogp-rainbow-probe-measurement-systems-ogp-indicate-technologies-646293
Laser Sensor
Telestar Probe
Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
ogp-telestar-probe-measurement-systems-ogp-indicate-technologies-931025

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
