SmartScope Flash 1500|1550|1552

Large and extra-large XY-travel 3D multisensor measurement system.

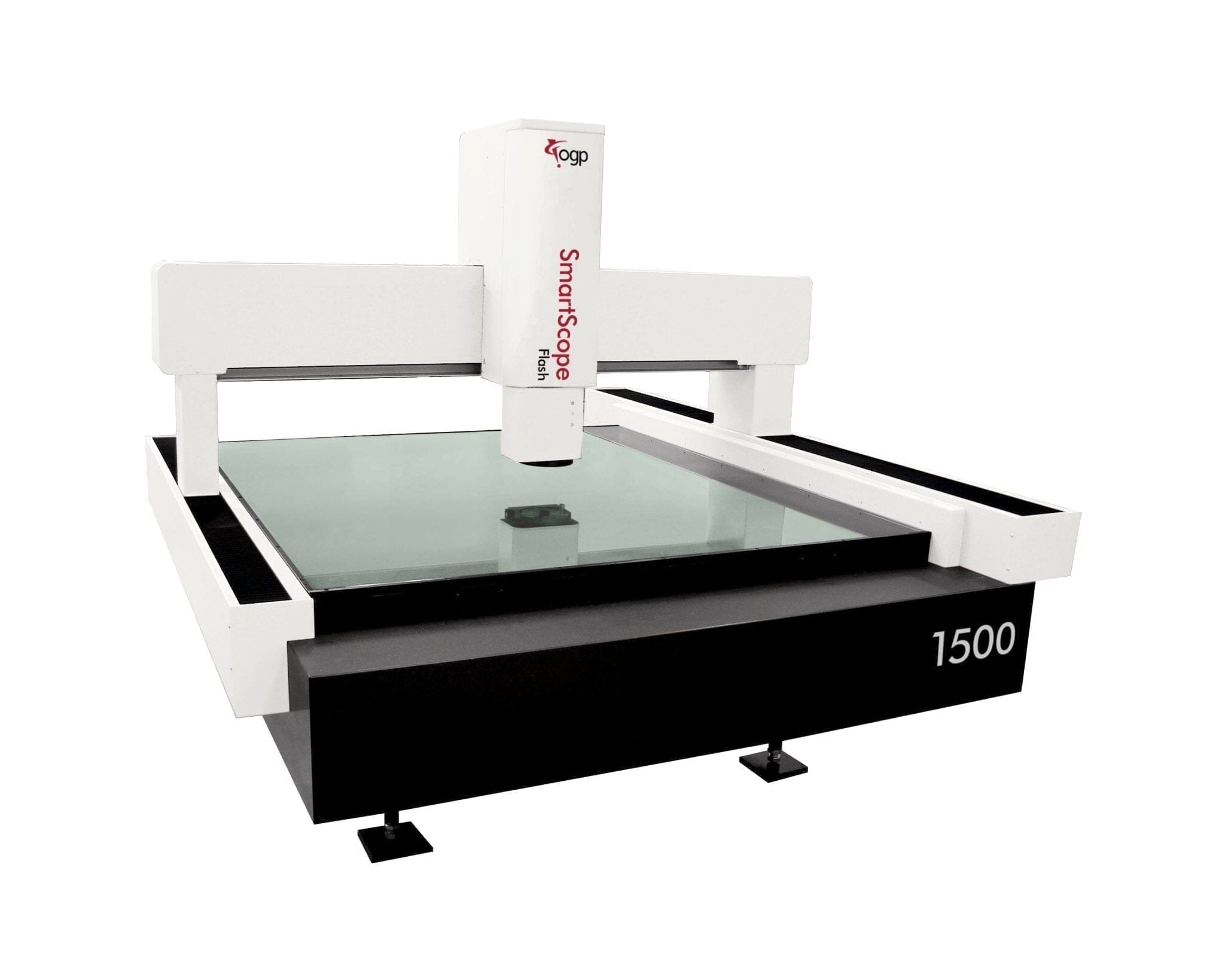

The SmartScope® Flash™ 1500 | 1550 | 1552 represent floor model 3D multisensor measurement devices with an expanded XY measuring capacity. In these systems, the instrument head traverses along the X axis across a steel bridge, while the entire bridge moves on parallel tracks in the Y axis. Designed to accommodate sizable components like LCDs, plasma displays, circuit boards, and multi-component fixtures, these machines offer an extensive measurement range.

SKU: smartscopeflash1500
Request for Quote

SmartScope Flash 1500|1550|1552 Features

Floor Model, Moving Bridge

Spacious Work Area
The optics are positioned on a mobile bridge, ensuring that the component remains stationary and easily accessible.

Accurate Optics
A high-quality AccuCentric® zoom lens is employed, automatically adjusting magnification for each zoom position to ensure precision.
ogp-smartscope-flash-150015501552-measurement-systems-ogp-indicate-technologies-411850_781dcdae-e8a2-4f55-820b-27d7c2d9add3
Download Datasheet
Options: Touch Probe, TTL or DRS Laser, Rainbow Probe

Optimal Illumination for Video Measurements

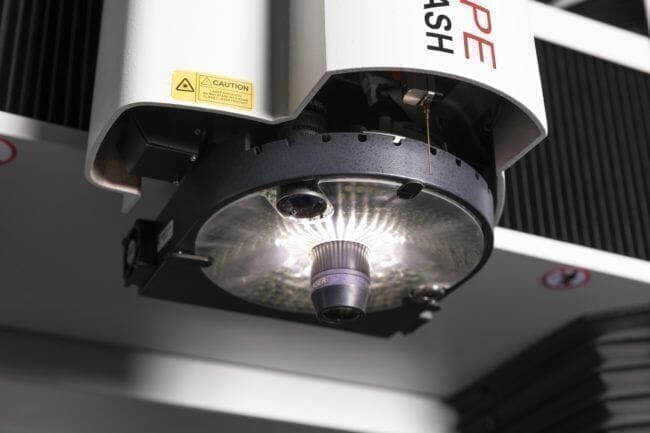

Standard profile light, coaxial surface light, and SmartRing™ light are utilized to illuminate parts from all angles, ensuring optimal conditions for video measurements.

Versatile Multisensor Capabilities
The system offers flexibility with optional touch probe and laser sensors, enhancing its capability to accommodate various measurement methods.

Smartscope Flash 1500|1550|1552 Configurations

Technical

Sensors & Accessories

Software

Technical Data

Models XYZ Travel (MM)
Standard
1500: 900 x 1500 x 200
1550: 1250 x 1500 x 200
1552: 1500 x 1500 x 200

OPTICS
Standard
AccuCentric auto-compensating zoom with up to 25 calibrated positions, 1.0x lens

Optional
Focus Grid Projector: LED Source
Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer
Replacement Lenses: 2.5x, 5.0x
Laser Lenses: 2.0x (Included with TTL Laser), 5.0x
Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x

ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)

Optional
Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Learn More
ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

Measure-X

Measure-X includes a comprehensive array of image processing tools, autofocus functionalities, geometric features, ANSI/ISO tolerances, user-friendly editing options, and contour analysis.

With compatibility extending to touch probes, lasers, and rotary indexers, Measure-X stands out as the optimal selection for versatile video and multisensor metrology applications.
Learn More
ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336

OGP SmartScope 3D Multisensor Measurement Systems
