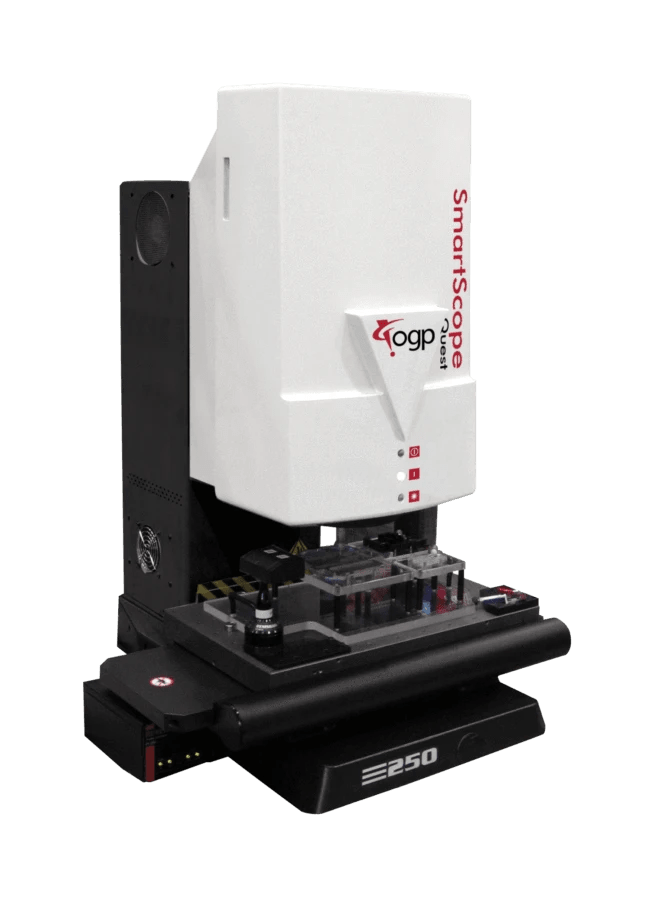

SmartScope Quest 250

Advanced-technology dimensional measuring system with a compact footprint.



The SmartScope® Quest™ 250 represents a state-of-the-art 3D multisensor measurement system, meticulously engineered for precision. Tailored for measuring smaller parts or scenarios with limited space, this benchtop system features a robust structural design that allows complete access to the measurement volume, enhancing fixturing flexibility.

SKU: smartscopequest250
Request for Quote

OGP SmartScope Quest 250 Features

Precision Video Metrology with TeleStar Telecentric Optics
Achieve unparalleled optical performance with TeleStar telecentric 10:1 zoom optics, ensuring accurate video metrology at the highest level.

Exceptional Illumination for Optimal Video Measurements
Experience superior illumination with standard profile light, coaxial surface light, and SmartRing light, providing comprehensive coverage from all angles for multisensor dimensional measurement.
ogp-smartscope-quest-250-measurement-systems-ogp-indicate-technologies-132610
Versatile Multisensor Capabilities
Enjoy flexibility with optional components such as a touch probe, off-axis DRS laser, on-axis TeleStar TTL interferometric laser, micro-probes, and the SP25 continuous contact scanning probe for a wide range of multisensor applications

Options: Touch Probe, Scanning Probe, TeleStar TTL or DRS Laser, Feather Probe, Rainbow Probe

Smartscope Quest 250 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL
Standard
300 x 150 x 200 mm

OPTICS
Standard
10:1 AccuCentric TeleStar auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens

Optional
Focus Grid Projector: LED source
Replacement Lenses: 0.5x, 2.0x, 4.0x
Laser Lenses: 0.5x, 2.0x, 4.0x

ILLUMINATION
Patented high performance substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing LED

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
Through the Lens Laser
An Integrated Laser Option for OGP Measurement Systems.

Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
Learn More
ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
Laser Sensor
Digital Range Sensor (DRS) Laser
Determines Surface Heights, Through Laser Triangulation
Learn More
ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.

Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Learn More
ogp-rainbow-probe-measurement-systems-ogp-indicate-technologies-646293

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

OGP SmartScope 3D Multisensor Measurement Systems
