Mitutoyo
Mitutoyo is a global leader in the field of precision measuring instruments. With a rich history spanning over eight decades, the company has consistently delivered leading metrology solutions.
Coordinate Measuring Machines
Multisensor Coordinate Measuring Machines (CMMs) represent the cutting-edge evolution in precision measurement technology. Unlike traditional probe-only CMMs, multisensor CMMs are equipped with a combination of video optics, laser, and/or touch probe. This unique integration allows for complete 3D measurement data capture from a single machine, revolutionizing the speed and accuracy of part characterization.
The Mitutoyo coordinate measuring machines come in a wide variety of sizes, accuracy levels, and designs, enhancing precision and efficiency in almost any 3D measuring task. Featuring a wide variety of sizes and accuracy levels. Delivering reliable solutions with low cost of ownership.
Standard CMM
High-Accuracy CMM
Ultra High-Accuracy CMM
Shop Floor CMM
Mitutoyo's Standard Coordinate Measuring Machines (CMMs) are versatile and reliable measurement systems designed for general inspection needs. These CMMs offer precise dimensional measurement capabilities, making them suitable for a wide range of applications across various industries. They provide accurate and repeatable results for basic dimensional checks and geometrical measurements, ensuring part quality and compliance with specifications. Standard CMMs are commonly used in automotive, aerospace, and manufacturing industries for inspecting components like machined parts, molds, and fixtures.
CRYSTA-Apex V series
Affordable and high-performance standard CNC CMM that offers a measurement range spanning from 400mm to 2000mm (15.7" to 78.7").
CRYSTA-Apex EX 1200R
A standard CNC CMM equipped with REVO technology, designed to deliver ultra-high-speed scanning capabilities of up to 4,000 points per second in a 5-axis configuration. The measuring range of this CMM starts at 1000mm.
Mitutoyo's High-Accuracy CMMs are engineered to deliver enhanced precision and advanced measurement capabilities. These machines are equipped with high-quality components and advanced probing systems, providing superior accuracy and increased measuring efficiency. High-Accuracy CMMs are ideal for critical inspection tasks that demand tight tolerances and exacting measurements. Industries like medical device manufacturing, precision optics, and electronics often utilize these CMMs to ensure the highest level of precision in their products.
STRATO-Apex 500/700/900/1600
A CNC CMM that combines high precision with rapid drive speed.
FALCIO-Apex 2000G/3000G/4000G/4500G
Custom-built to perfection, our largest Mitutoyo high accuracy gantry CNC CMM offers unparalleled size and precision for your specific measurement needs.
Mitutoyo's Ultra-High Accuracy CMMs represent the pinnacle of dimensional metrology. These cutting-edge machines are designed for applications that demand the utmost precision and accuracy, often in sub-micron or nanometer ranges. Ultra-High Accuracy CMMs are equipped with state-of-the-art technology, advanced error compensation systems, and environmental controls to mitigate external influences on measurements. They find applications in research and development, semiconductor manufacturing, and high-precision industries, where accuracy at the micro and nano scale is essential.
Legex 500/700/900/1200
Experience unparalleled precision with our ultra-high accuracy fixed bridge type CNC CMM
Mitutoyo's Shop Floor CMMs are rugged and durable measurement systems tailored for use in harsh manufacturing environments. These machines are designed to withstand the rigors of shop floor conditions while maintaining accuracy and reliability. Shop Floor CMMs enable in-process and on-the-spot inspections, reducing downtime and ensuring quality control right on the production floor. They are extensively used in industries such as automotive, metalworking, and heavy machinery manufacturing for quick, real-time inspections of workpieces without the need for transporting them to a separate inspection area.
MiSTAR 555
Experience the speed and simplicity of our highly versatile and compact CMM designed specifically for precision measurements on the shop floor.
MACH-V
Introducing the world's fastest near-line/in-line vertical-axis CNC CMM, setting new standards for speed and efficiency.
MACH-3A
Efficient and space-saving, the in-line horizontal CNC CMM offers a compact solution for precise measurements.
MACH-Ko-Ga-Me
Discover the power of automation with our compact near-line/in-line 3D CNC CMM, offering precision measurements in a streamlined and efficient design.
Form Measurement Machines
Mitutoyo offers advanced form measuring solutions that are highly effective in accurately evaluating intricate geometries. Whether the task involves measuring form shape, roundness, or surface roughness, Mitutoyo provides a wide range of solutions to cater to diverse applications.
We provide compact manual instruments and high-precision motorized models to meet strict standards and tolerances.
Surface Roughness
Contracer
Roundness
Formtracer
We offer high-precision and high-performance surface roughness testers in both skid and skidless types.
SJ-210 – Portable Surface Roughness Tester
Compact and portable surface roughness measuring instrument for convenient on-the-go measurements.
SJ-310 – Portable Surface Roughness Tester
Compact and portable skidded surface roughness measuring instrument with a built-in printer for convenient on-the-go measurements and instant result printing.
SJ-410 – Portable Surface Roughness Tester
High-accuracy, portable surface roughness measuring instrument available in both skidded and skidless types. Equipped with a high-resolution drive unit and detector for precise and detailed measurements.
Surftest SJ-500 / 500P
High-performance and high-precision surface roughness tester designed to deliver accurate measurements with exceptional precision.
SV 2100 – Dedicated Processor – Column Type
High-precision, high-performance column/dedicated processor surface roughness measuring instrument.
SV-3000 CNC – Extreme Type
The high-accuracy CNC surface roughness measuring instrument enables simultaneous surface roughness measurement in both the X and Y axes.
FTA-S3000
Features industry-leading drive unit and column axis speeds, offering the best-in-class performance. The quick stroke return speed allows for significantly faster measurements.
Mitutoyo offers a range of Contour measuring system models that are user-friendly and designed to accommodate a wide range of workpieces. These systems come in various sizes and accuracy levels, ensuring that there is an ideal Contour solution available for virtually any form measurement application.

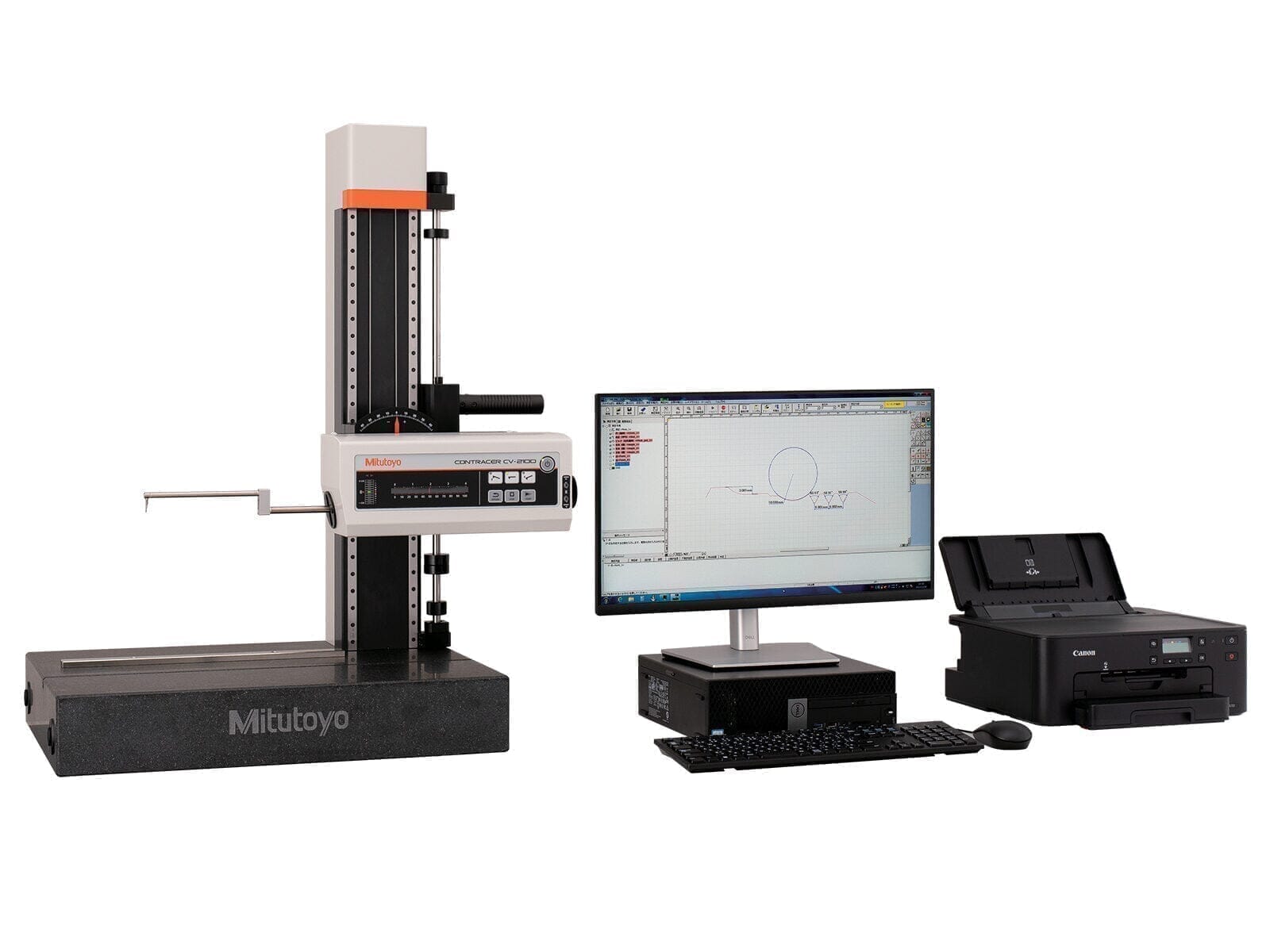

Contracer CV-2100 – Contour
The FTA-C3000, equipped with a single-sided stylus, stands out as one of the swiftest contour measurement machines in its category.
FTA-C3000
Custom-built to perfection, our largest Mitutoyo high accuracy gantry CNC CMM offers unparalleled size and precision for your specific measurement needs.

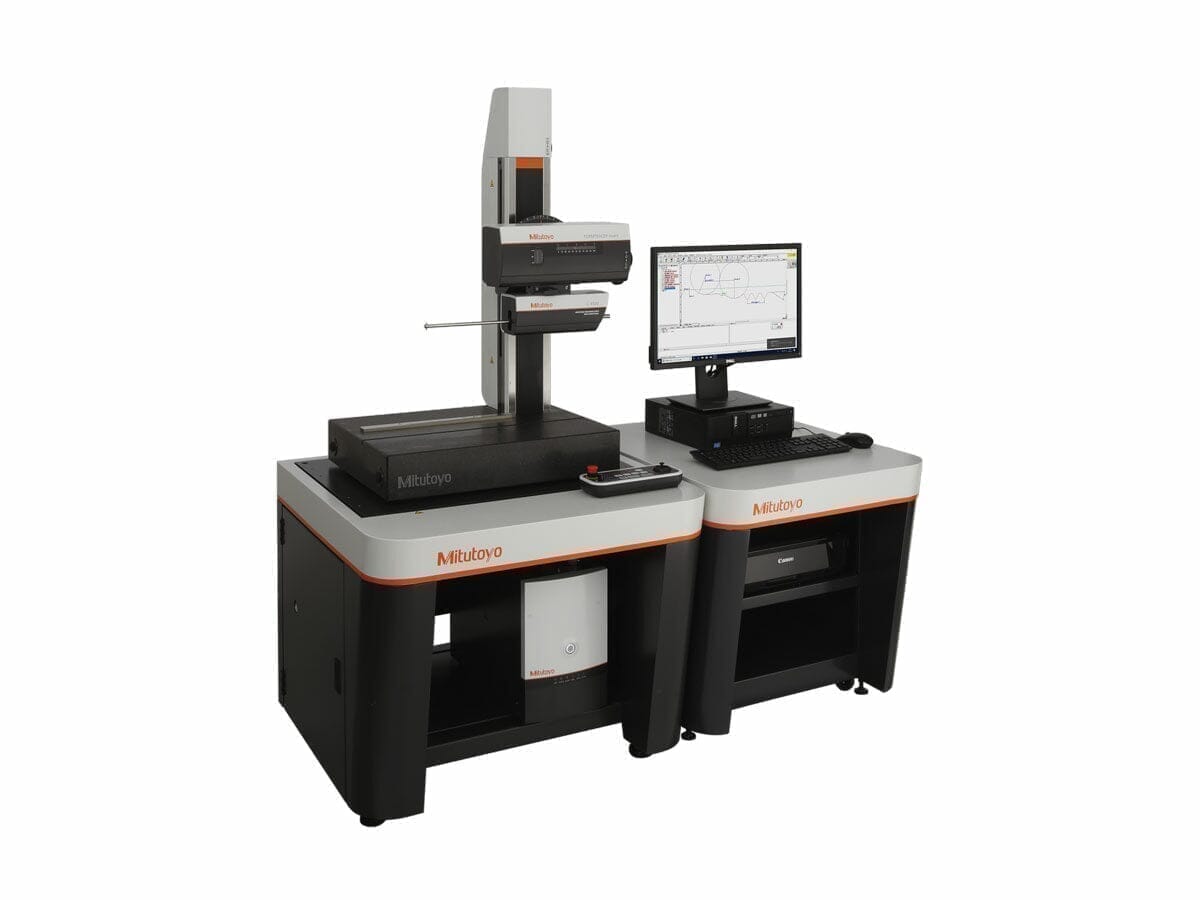

FTA-C4000
The user-friendly FTA-C4000 is equipped with a dual-sided stylus, enabling rapid and efficient measurements.
Mitutoyo's roundness measuring instruments are renowned for their exceptional rotational accuracy and industry-leading precision in measuring roundness and cylindricity. Each model is equipped with a high-accuracy rotary turntable on an air bearing, ensuring stability and wear resistance. These instruments are designed to provide easy operation while delivering top-tier performance in roundness and cylindricity measurement.

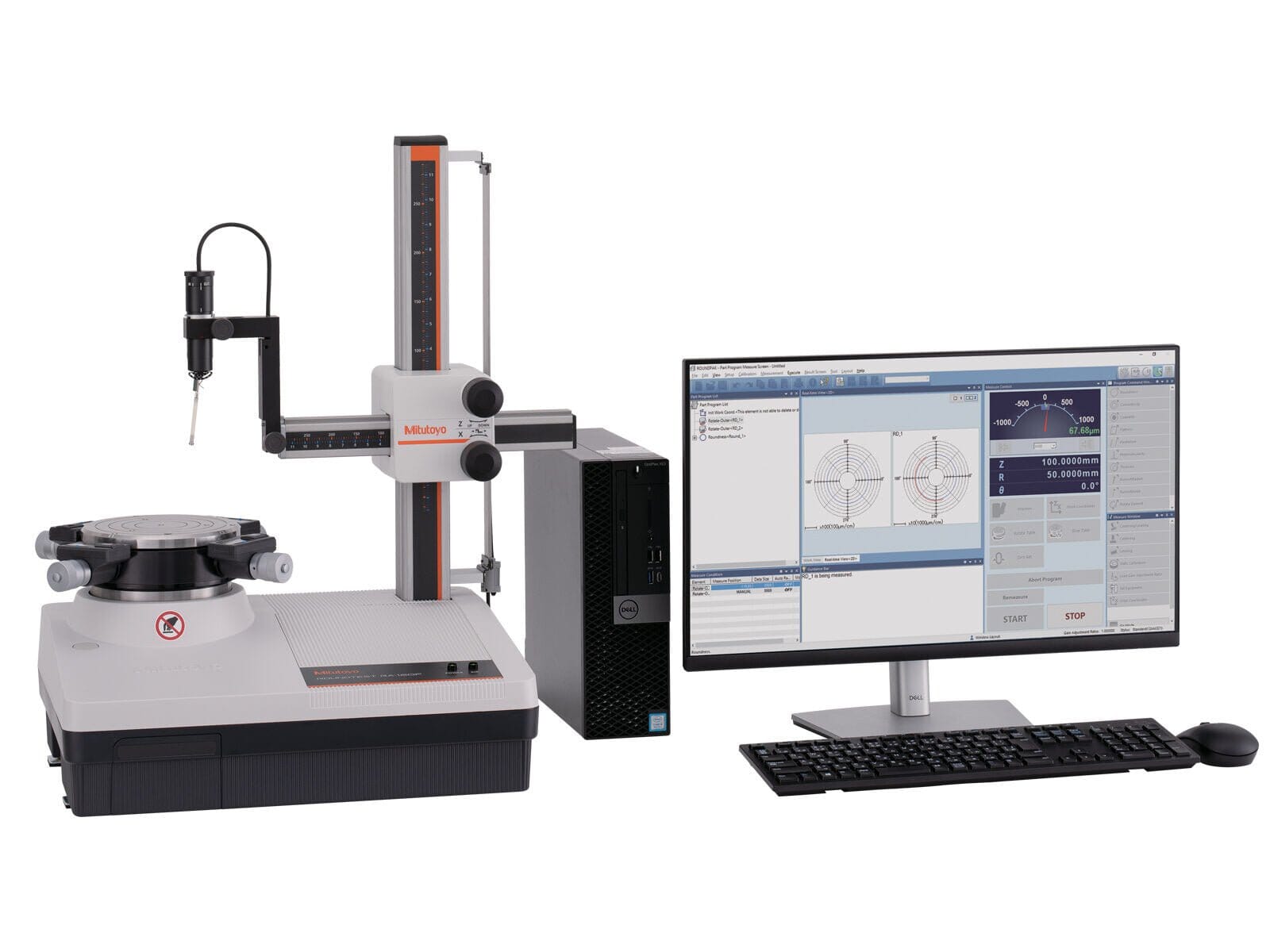

RA-120 /120P – Roundness
The Roundtest RA-120/120P is a compact, affordable, and user-friendly solution for measuring part geometry directly on the shop floor. It offers simplicity in operation while providing accurate measurements of part geometry.
Roundtest RA-1600/RA-1600M
The high-precision PC-based roundness/cylindricity measuring system offers exceptional accuracy in measuring roundness and cylindricity. With its integration with a PC, it provides advanced functionality and precise measurements for comprehensive analysis of part geometry.
RA-2200 – Roundness / Cylindricity Capable
The multi-functional, high-accuracy CNC roundness/cylindricity and surface roughness measuring system offers comprehensive capabilities for precise measurement and analysis. With its CNC functionality, it enables accurate assessments of roundness, cylindricity, and surface roughness, making it a versatile and reliable solution for advanced dimensional analysis.
RA-H5200 – Roundness / Cylindricity Capable
The high-accuracy, highly maneuverable roundness/cylindricity measuring system excels in precise measurements and offers advanced analysis capabilities. Its exceptional maneuverability allows for easy positioning and measurement of various components, making it a versatile solution for in-depth roundness and cylindricity analysis.
RA-2200 CNC – Extreme Type
Multi-functional, high-accuracy CNC measuring system for roundness, cylindricity, and surface roughness.
RA-H5200 CNC – Extreme type
Highly accurate CNC measuring system with automatic orientation control for roundness, cylindricity, and surface roughness measurements.

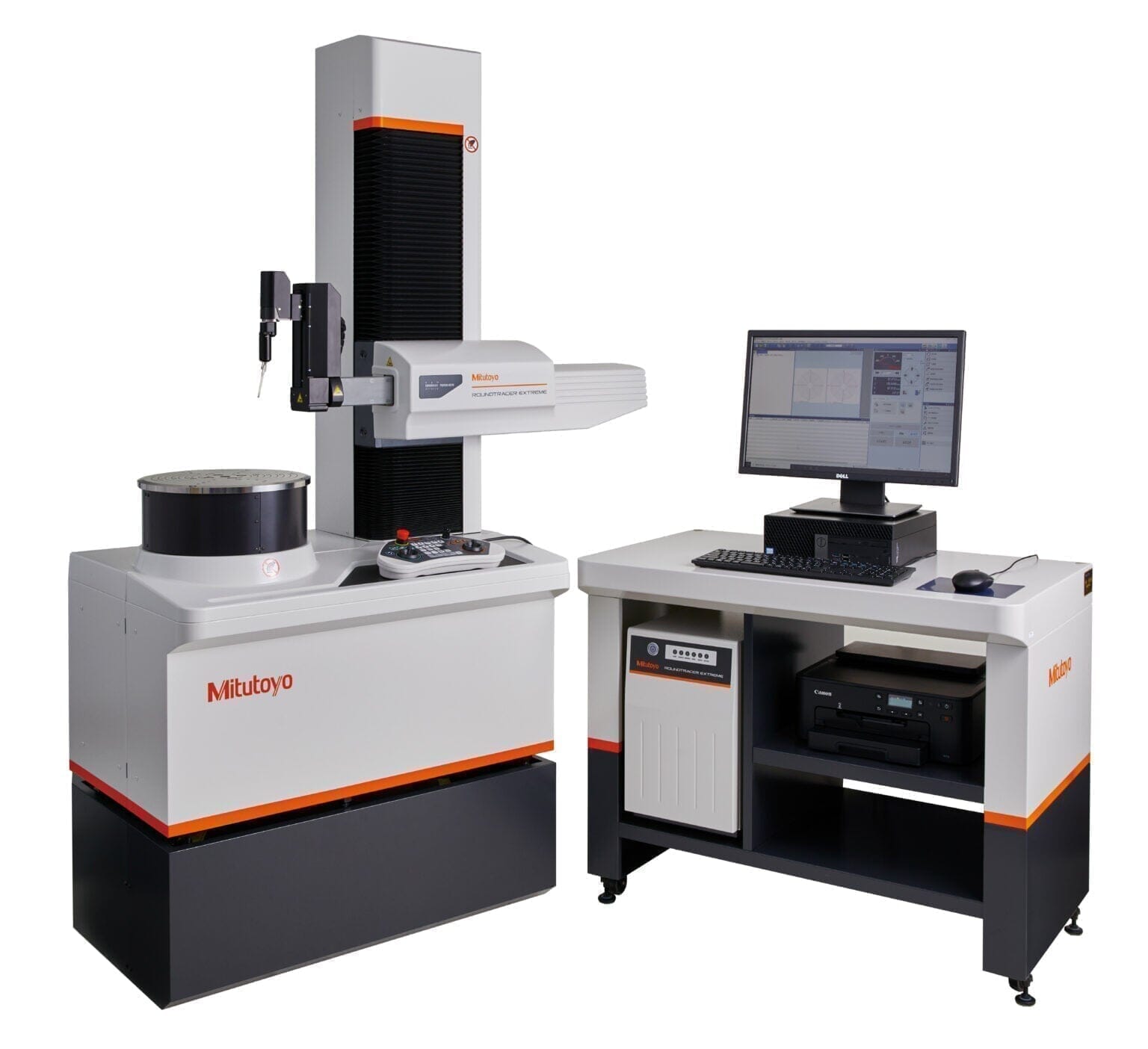

Roundtracer Extreme
High-end, all-in-one measuring machine for roundness, contour, and surface roughness measurements.

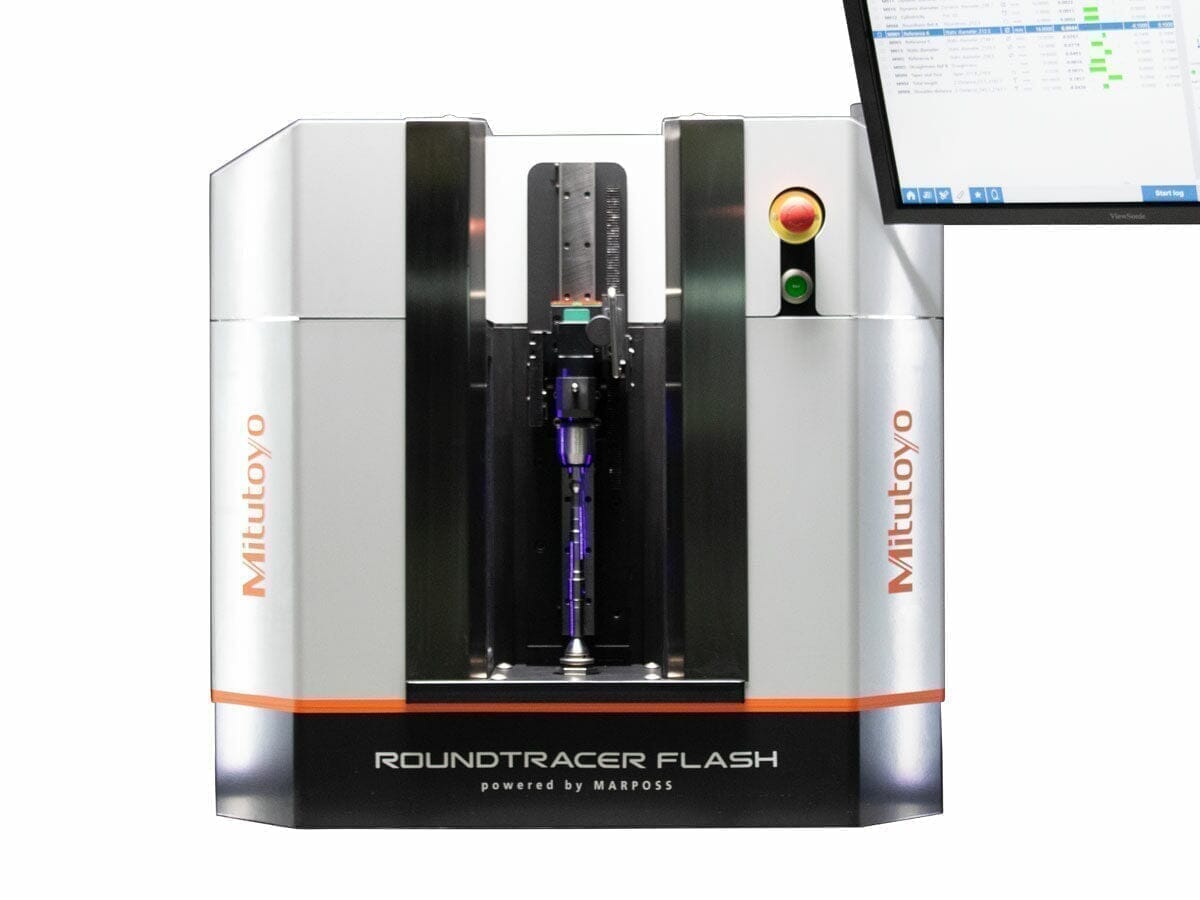

Roundtracer Flash
Roundtracer Flash is an optical measuring unit utilizing a side-by-side 2D image architecture for precise measurements.
The Mitutoyo Dual Type contour and surface roughness measuring systems integrate two essential form measuring capabilities, enhancing inspection efficiency.

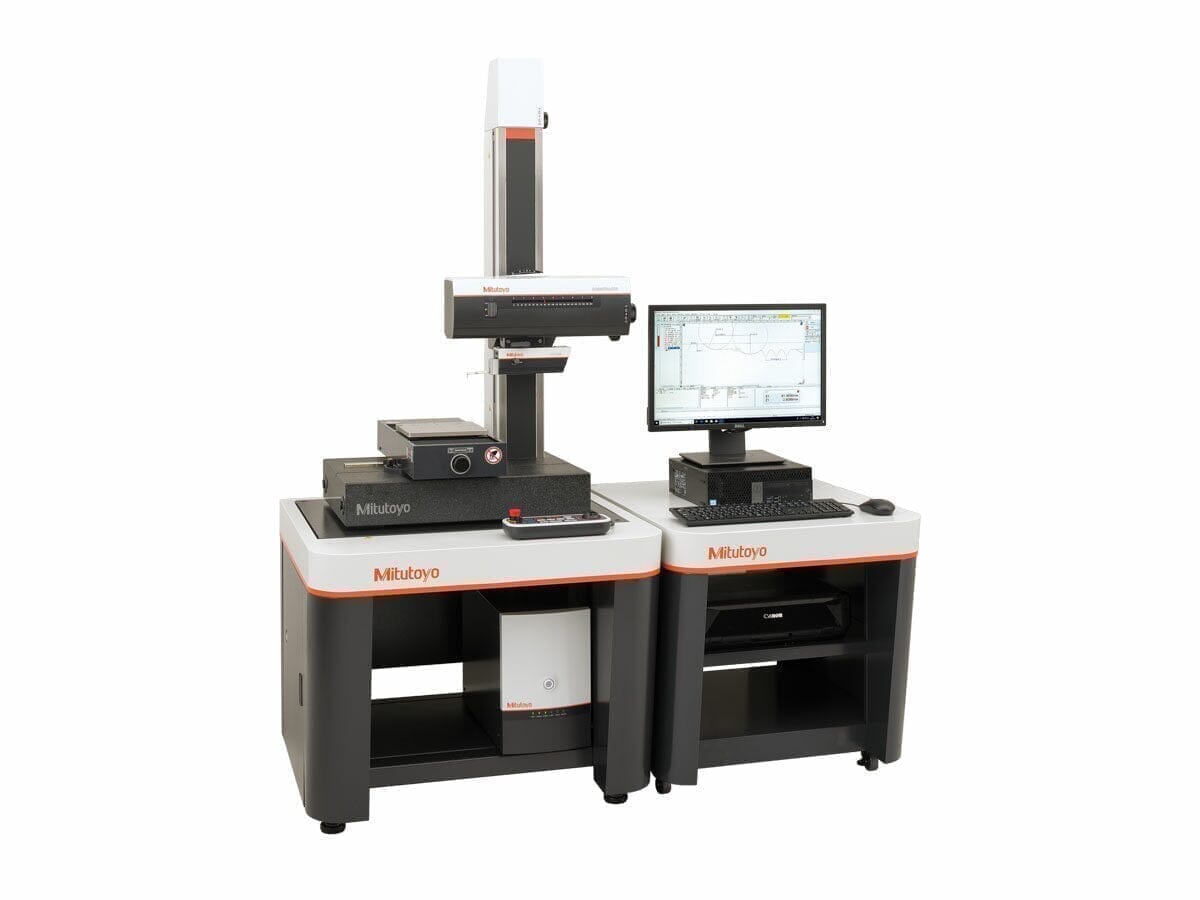

CS-3300 – Singular Detector Type
The Formtracer CS-3300 Series is a collection of surface roughness and contour measuring systems that offer high functionality and user-friendliness. These systems are designed with innovative features that enhance their performance and usability.

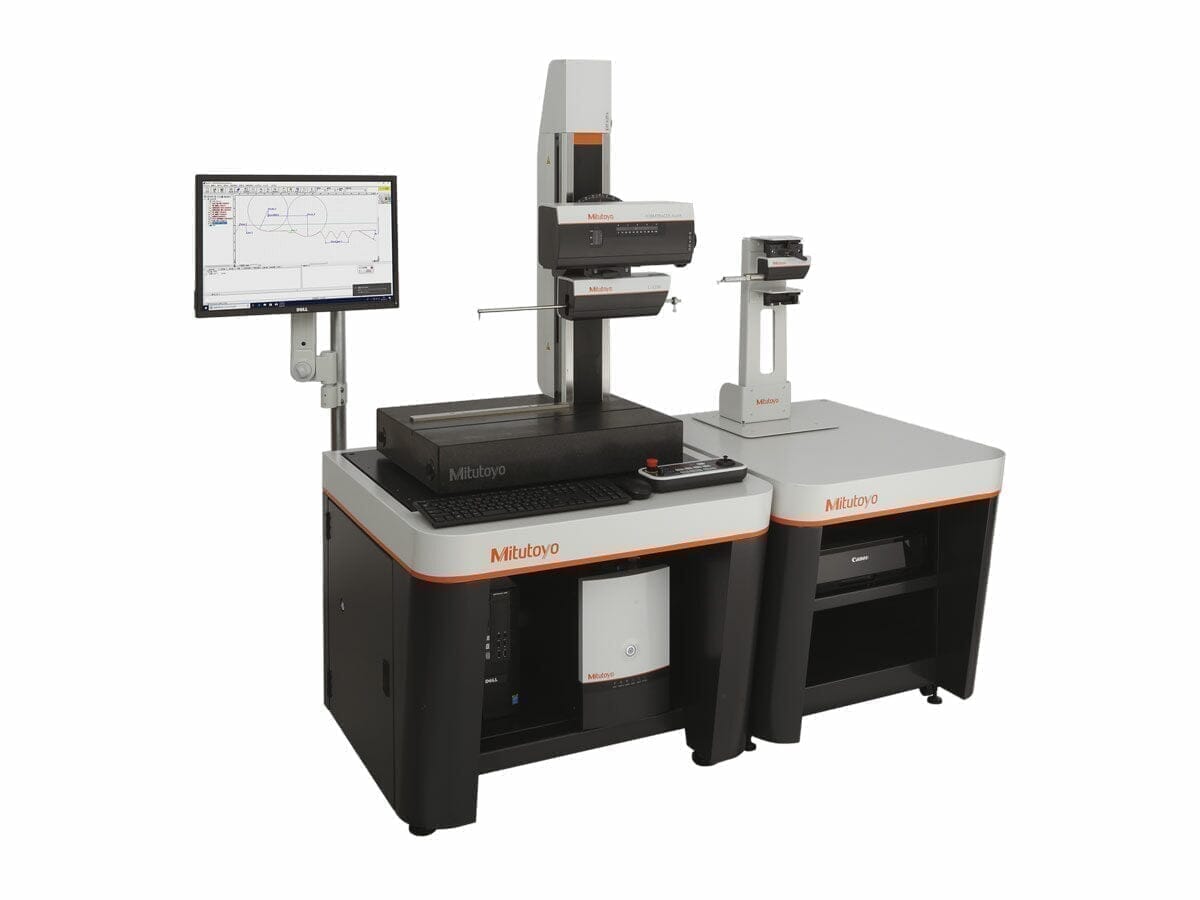

FTA-D3000 – Dual Detector – One Sided Contour Stylus Type
This system is a flexible combination of detectors that can efficiently and rapidly measure contour and surface roughness. It consists of a single-sided stylus and supports interchangeable detector heads for different measurement purposes.

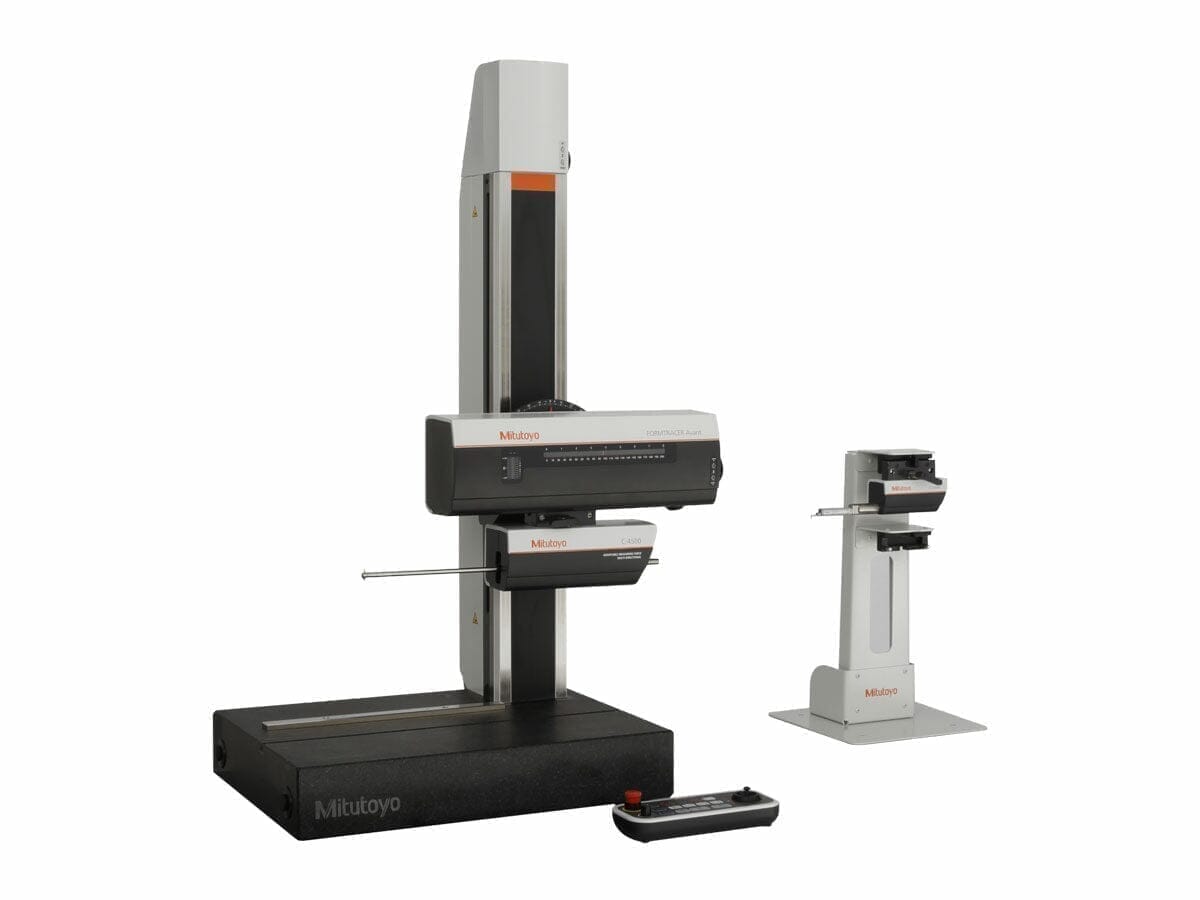

FTA-D4000 – Dual Detector – Dual-sided Contour Stylus Type
A measuring system has been developed that combines a hybrid dual detector and a dual-sided contour stylus for accurately measuring surface roughness. This system offers improved measurement speed and efficiency, along with automation features to enhance ease of use. It provides a diverse array of features and can be expanded with optional detectors for added functionality.

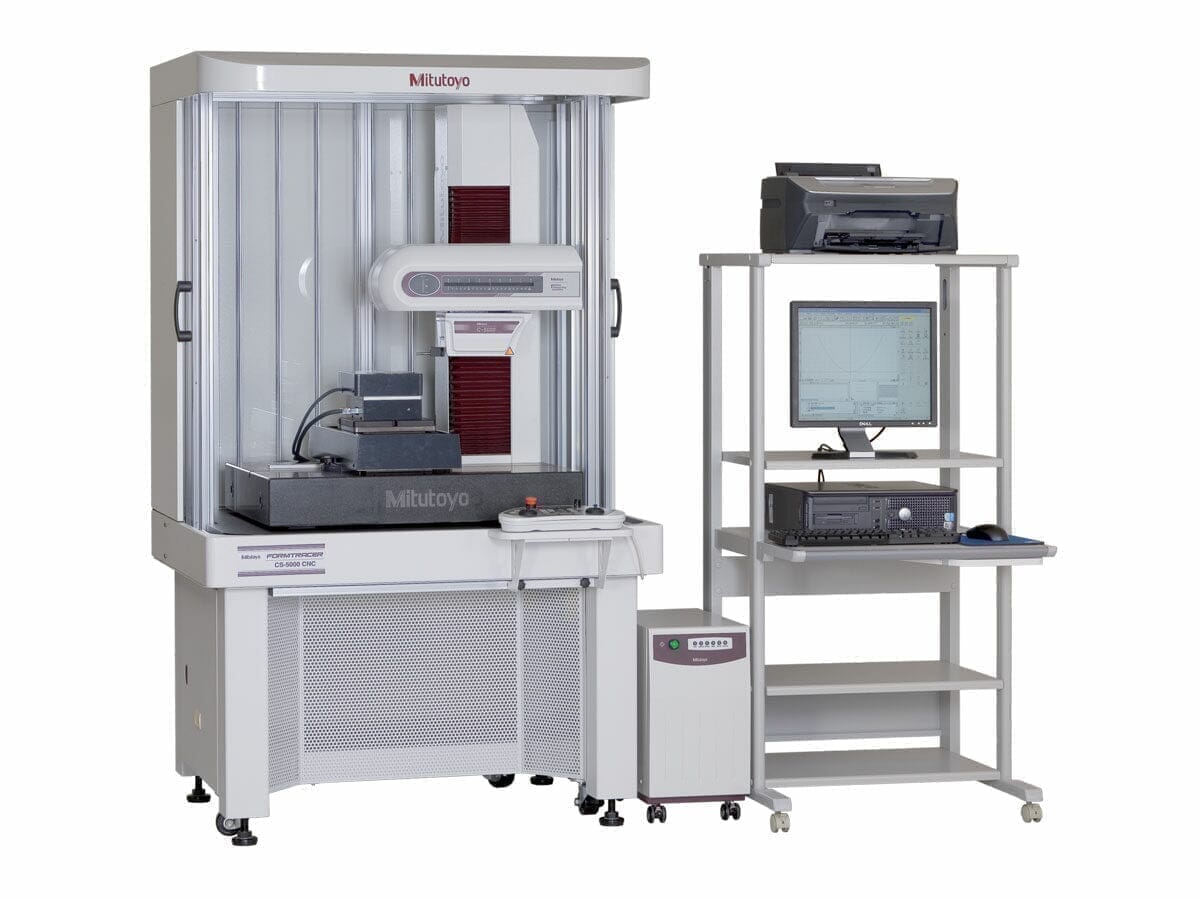

Formtracer Extreme CS-5000CNC / CS-H5000CNC
The Formtracer Extreme CS-5000CNC/ CS-H5000CNC measurement device achieves fast and precise measurements by simultaneously capturing surface roughness and contour in a single trace. It operates at high speeds while maintaining high levels of accuracy.
About
Mitutoyo
THE COMPANY
Mitutoyo is a renowned global company specializing in precision measuring instruments and metrology solutions. With over 80 years of experience, they have earned a reputation for their high-quality and innovative products. Mitutoyo's diverse range of instruments includes calipers, micrometers, coordinate measuring machines, and optical systems.
Their commitment to precision and reliability has made them a trusted choice for industries such as manufacturing, automotive, aerospace, and research laboratories worldwide.
MEASUREMENT SYSTEMS
Mitutoyo offers a comprehensive range of precision measuring instruments designed to meet the diverse needs of industries worldwide. Their product lineup includes calipers, micrometers, height gauges, depth gauges, bore gauges, optical comparators, coordinate measuring machines, and vision measuring systems.
With a strong emphasis on accuracy, reliability, and advanced technology, Mitutoyo products are trusted by professionals in various sectors such as manufacturing, automotive, aerospace, medical, and research. These instruments enable precise measurements, quality control, and process optimization, contributing to enhanced productivity and product excellence.
