Roundtracer Flash

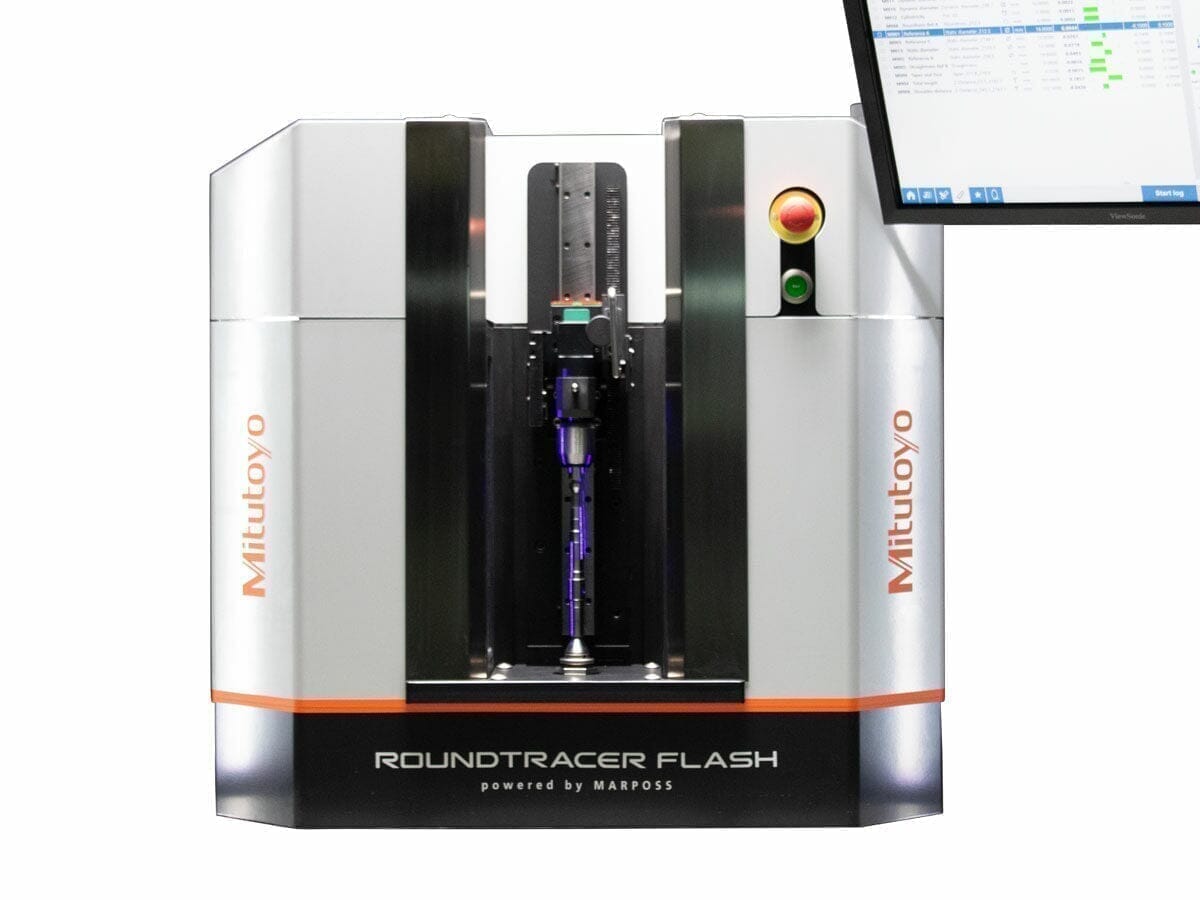

The Mitutoyo Roundtracer Flash optical measuring unit has the capability to measure parts up to 300mm in length without requiring any vertical movement of the sensors or the part. This feature allows for efficient and precise measurements while minimizing the need for complex adjustments or repositioning of the part during the measurement process.
SKU:

Product Features

Executes 100 static measurements in just 2 seconds, regardless of the distribution of measurement sections along the shaft length.

Thru-hole measurements require only a few milliseconds between image acquisition and execution.

Fixed position sensors eliminate mechanical stress, ensuring better durability.
roundtracer-flash-measurement-systems-mitutoyo-indicate-technologies-218383
Metrological performance remains consistent and stable over millions of cycles with minimal maintenance requirements.

Enables quick and easy measurement of screws, pins, or rivets.

Includes threads analysis in the standard measurement toolkit, covering parameters such as maximum and minimum diameter, pitch diameter, pitch value, thread angle, and thread linearity.

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo Roundtracer Flash is an all-in-one measurement system that utilizes multiple image sensors positioned throughout its structure to cover the entire measurement range. These sensors capture multiple images and seamlessly stitch them together, resulting in a single image of the part without any gaps or discontinuities.

This innovative approach enables the Roundtracer Flash to measure parts up to 300mm in length without requiring any vertical movement of the sensors or the part itself. By eliminating the need for Z-axis motion, the system achieves rapid and near-instantaneous optical acquisition of the entire part. This significantly reduces cycle times and enhances overall productivity compared to other systems that rely on time-consuming Z-axis movements for complete part measurement.
roundtracer-flash-measurement-systems-mitutoyo-indicate-technologies-218383
Technical Data
Technology:
Non-contact

Units:
Inch, Metric

Measuring Range:
Diameter: 2.4" / 60mm

Maximum part weight:
13 lb / 6 kg

Measuring uncertainty 1:
Length: U95 (2+L[mm]/200)μm

Measuring uncertainty 1:
Diameter: U95 (1+D[mm]/200) μm

Part loading mode:
Manual / Auto (by robot)

Part rotation:
Standard

Measuring mode:
Static / Dynamic
roundtracer-flash-measurement-systems-mitutoyo-indicate-technologies-218383
