Legex 500/700/900/1200

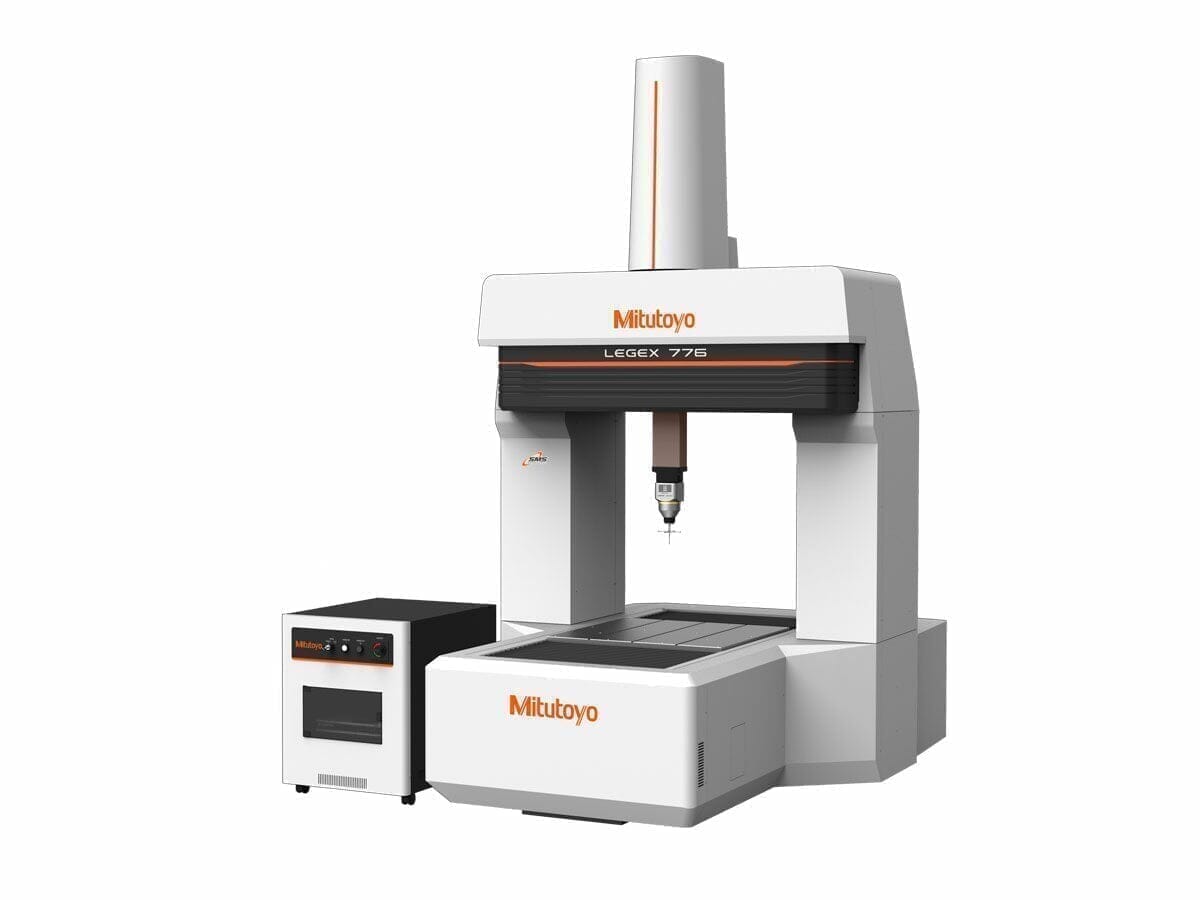

The Mitutoyo LEGEX Series is a line of fixed-bridge CNC CMMs renowned for their exceptional precision in measurement technology. These CMMs represent the epitome of high-accuracy measurement capabilities worldwide. The LEGEX series is particularly well-suited for intricate small-to-medium-sized workpieces that demand precise dimensional accuracies within narrow tolerances. Examples of such workpieces include gears, bearings, lenses, and precision dies.
SKU:

Product Features

Mitutoyo LEGEX series CMMs utilize air-damped spring isolators with auto-leveling to eliminate floor vibrations.

The rigid fixed-bridge design ensures stable measurements by eliminating axis movement fluctuations.
legex-5007009001200-indicate-technologies-indicate-technologies-844206
FEM structure analysis guarantees minimal errors in geometric motion accuracy caused by load fluctuations and other variables.

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo LEGEX series CMMs are equipped with an ultra-high accuracy scale unit featuring crystallized glass scales. These scales have a thermal expansion coefficient of 0.01×10-6/K, ensuring precise measurements. Additionally, the CMMs employ a high-resolution, high-performance reflection linear encoder, which contributes to superior positioning performance.

The fixed-bridge design of the LEGEX series allows independent operation of the X- and Y-axes, effectively eliminating pitch and yaw errors. This design enhances the overall accuracy of the measurements.

The LEGEX CMMs utilize a "center of gravity" drive system, enabling them to achieve high speeds while maintaining ultra-accurate measurements. This drive system ensures optimal performance and efficiency during operation.
legex-5007009001200-indicate-technologies-indicate-technologies-844206

Technical Data

Technology:
Coordinate Measuring Machine - CNC

Units:
Inch, Metric

Resolution:
0.0000004" (0.00001mm)

Guide Method:
Air bearing on each axis

Vibration Stand:
Standard

Probe System:
PH10MQ

Touch Trigger Probe:
TP7

Scanning Probe:
MPP, SP25

Laser Probe:
SurfaceMeasure Optical

Probe:
QVP

Surface Roughness Probe:
SurfTest
