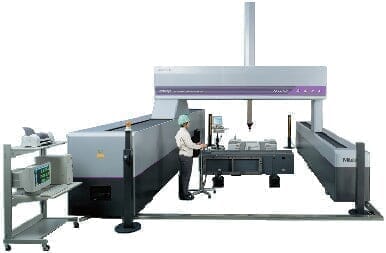

FALCIO-Apex 2000G/3000G/4000G/4500G

The FALCIO-Apex series represents a family of CNC CMMs featuring a large gantry design specifically created to measure sizable and heavy workpieces with utmost precision and high-speed capabilities.
SKU:
Request for Quote

Product Features

The MOVAC system
is included as a standard feature in the FALCIO-Apex series.

The CMMs offer various options for the measuring ranges:
X-Axis range: 2000, 3000, 4000, or 4500 mm
Y-Axis range: 3000, 4000, 5000, or 6000 mm
Z-Axis range: 1200, 1500, or 2000 mm

Standard safety features
of the FALCIO-Apex include an optional Z-axis beam sensor, tape switch, and area sensor.
falcio-apex-2000g3000g4000g4500g-indicate-technologies-indicate-technologies-994498
Speed
The FALCIO-Apex CMMs achieve a maximum drive speed of 500mm/s while maintaining high-accuracy measurements.

Easy configuration
These CMMs are custom-built and can be configured with or without a workpiece table based on specific requirements.

Temperature compensation
ensures accuracy within the range of 18 to 22°C even without a temperature-controlled environment.

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo FALCIO Apex series of CNC Coordinate Measuring Machines is specifically engineered to measure large and heavy workpieces with exceptional precision.

These CMMs excel in both measuring accuracy and drive speed within the X-axis measuring range of 2000 mm and 4500 mm, positioning them among the top-performing CNC CMMs globally.

The series includes a standard feature called MOVAC (Mitutoyo Onsite Volumetric Accuracy Compensation) system, which automatically restores accuracy degradation caused by foundation deformation. This ensures consistent and reliable measurement accuracy over time.
falcio-apex-2000g3000g4000g4500g-indicate-technologies-indicate-technologies-994498

Technical Data

Technology:
Coordinate Measuring Machine - CNC

Units:
Inch, Metric

Resolution:
0.000004"  (0.0001mm)

Guide Method:
Air bearing on each axis

Vibration Stand:
Not Applicable

Probe System:
PH10MQ

Touch Trigger Probe:
TP200

Scanning Probe:
SP25. SP80

Laser Probe:
SurfaceMeasure
Optical

Probe:
QVP

Surface Roughness Probe:
SurfTest
