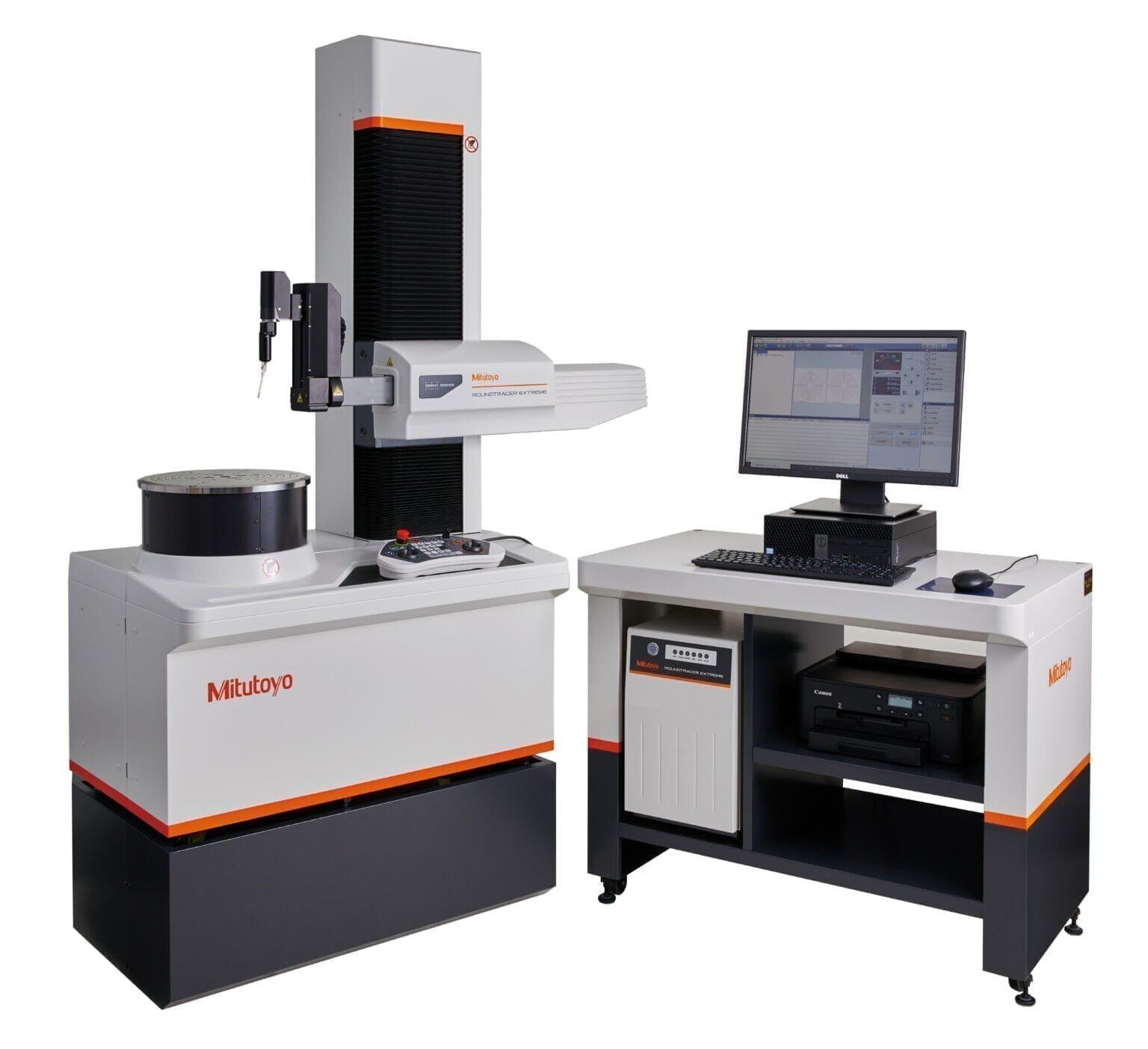

Roundtracer Extreme

The RTX Roundtracer Extreme is an all-in-one measuring system that combines roundness, contour, and surface roughness measurement functions onto a single platform, enhancing efficiency and productivity. This advanced CNC machine offers exceptional speed, accuracy, and operability, enabling the measurement of diverse workpieces with varying geometries, including camshafts and bearings. It saves time and streamlines the measurement process, making it an ideal solution for demanding measurement tasks.
SKU:

Product Features

Best-in-class maximum speed of 100 mm/sec. with improved positioning accuracy and reduced positioning times, leading to a significant increase in throughput compared to conventional models.

Curvilinear measurement throughput is enhanced as data can be acquired independently of the turntable's 0° position.
roundtracer-extreme-measurement-systems-mitutoyo-indicate-technologies-969948
New centering table architecture minimizes positional changes of the workpiece during measurement, resulting in more accurate and reliable results.

Ergonomic remote box with clearly laid out buttons and controls enhances the user's experience, ensuring ease of use and efficient operation.

Technical Specifications

Benefits

Technical Data

Benefits
The Mitutoyo Roundtracer Extreme offers exceptional speed, accuracy, and operability, making it ideal for measuring various workpiece shapes like camshafts and bearings. The system features a new 3-step motorized sliding axis, detector, and detector holder, which prevent workpiece interference and eliminate the need to replace the stylus. This allows for automatic measurement, enhancing flexibility and efficiency in the process.
roundtracer-extreme-measurement-systems-mitutoyo-indicate-technologies-969948
Technical Data
Model:
RTX-0605-A

Technology:
Automated

Units:
Inch, Metric

Table Adjustment Method:
Automatic

Table positioning drive speed in CNC mode:
30 (Max rpm)

Table Diameter:
11.8" / 300mm

Table Centering Range (With DAT function):
± .2" / ± 5mm

Table Leveling Range:
±1°

Max Table Loading:
132lbs / 60kg

Table Max Probing Diameter:
14.1" / 358mm

Table Max Loading Diameter:
26.8" / 680mm

Column Traverse Method:
Motorized

Column Drive Speed (Max):
100mm/s

Column Drive Speed using remote box mode (Max):
40mm/s

Column Measuring Speed:
0.1, 0.2, 0.5, 1, 2, 5mm/s

Column parallelism:
1.2 / 550μm/mm

Column Max Probing Height:
21.6" / 550mm

Radial Traverse Method:
Motorized

Radial Drive Speed (Max):
100mm/s

Radial Drive Speed using Remote Box mode (Max):
40mm/s

Radial measuring speed:
0.1, 0.2, 0.5, 1, 2, 5mm/s

Detector Measuring Direction:
One-direction

Data Sampling Points:
14,400/rev

Air Pressure:
0.39 Mpa

Main Unit Dimensions:
50.5 x 26 x 64.2" / 1282 x 660 x1630mm

Main Unit Mass:
2183lbs / 990kg
