FTA - D3000 – Dual Detector – One Sided Contour Stylus Type - Measurement Systems - Mitutoyo - Indicate Technologies

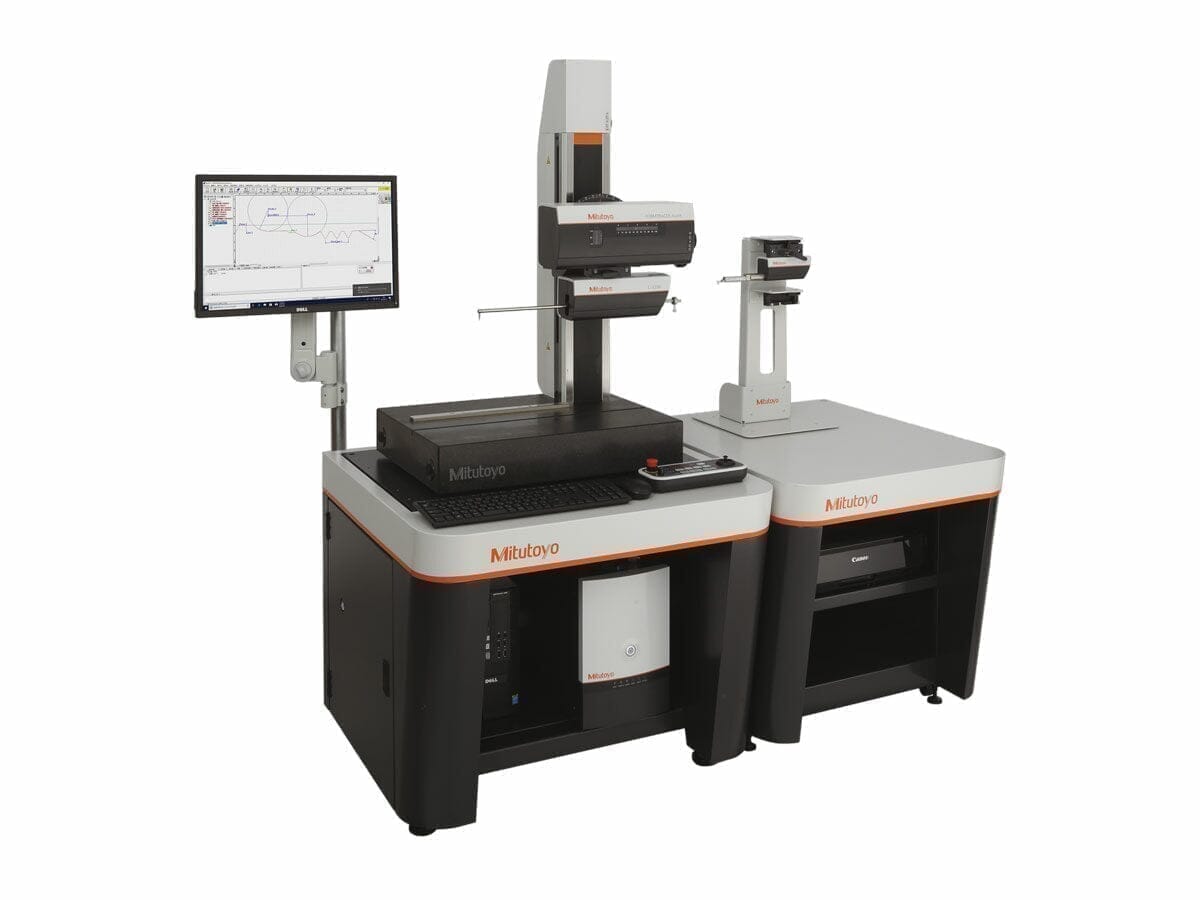

FTA-D3000 – Dual Detector – One Sided Contour Stylus Type

This system is a flexible combination of detectors that can efficiently and rapidly measure contour and surface roughness. It consists of a single-sided stylus and supports interchangeable detector heads for different measurement purposes.
SKU:

Product Features

The hot swapping capability enables seamless switching between the contour detector and roughness detector without the need to power off the machine.

The tool-less replacement mechanism, utilizing a thumb-turn clamp, allows for quick and efficient switching between detectors without the need for additional tools.

The stylus drop detection feature promptly identifies any sudden drop of the stylus and automatically stops the measurement process.
fta-d3000-dual-detector-one-sided-contour-stylus-type-measurement-systems-mitutoyo-indicate-technologies-921035
Collision monitoring ensures the safety of measurements by monitoring the magnet arm and detector cover, even during rapid movements.

Optional accessories for automatic measurement offer the convenience of automating processes from setup to measurement, streamlining operations.

Technical Specifications

Benefits

Technical Data

Benefits
The Formtracer Avant D3000 is a versatile system that can perform measurements for both contour and surface roughness. The machine allows for easy swapping of the two detector heads without requiring the machine to be turned off.

Specifically, the FTA-D3000 model is equipped with a single-sided stylus that enables measurements of inner diameters and the calculation of pitch diameters.
fta-d3000-dual-detector-one-sided-contour-stylus-type-measurement-systems-mitutoyo-indicate-technologies-921035
Technical Data
Resolution X-Axis:
1.97μin / .05μm

Measuring Method:
Ultra high precision linear encoder

Drive speed (software):
0 - 3.1in/s / 0 - 80mm/s

Drive speed (joystick):
0 - 1.57in/s / 0 - 40mm/s

Measuring Speed:
.00078 - 1.18 in/s / .02 - 30 mm/s

Measuring direction (Surface):
Backward

Detector Z-Range (Surface):
320, 3200, 32000μin / 8, 80, 800μm

Detector Z-resolution (Surface):
.004, .04, .4μin / .0001, .001, .01μin

Detection Method (Surface):
Differential inductance

Skid Radius of Curvature:
1.57"

Measuring Force (Surface):
0.75mN

Stylus tip (Diamond, angle °/ tip radius) (Surface):
60/2μm

X-axis inclination angle:
±45°

Z1-Axis Detector Measuring Range (Contour):
2.4" / 60mm

Z1-Axis Detector Measuring Method (Contour):
RT detector

Z1-Axis Detector Resolution (Contour):
1.57μin / .04μm

Measuring Direction (Contour):
Forward/Backward

Measuring Force (Contour):
30mN

Stylus tip (Diamond, angle °/ tip radius) (Contour):
12°/ 1000μin / 12°/ 25μm

Column resolution:
39.4μin

Column Resolution:
1μm

Z2-axis Measuring Method:
ABS linear encoder

Column Z2-axis drive speed (Software):
0 - 1.2in/s / 0 - 30mm/s

Z2-axis drive speed (manual joystick):
0 - 1.2in/s / 0 - 30mm/s
