STRATO-Apex 500/700/900/1600

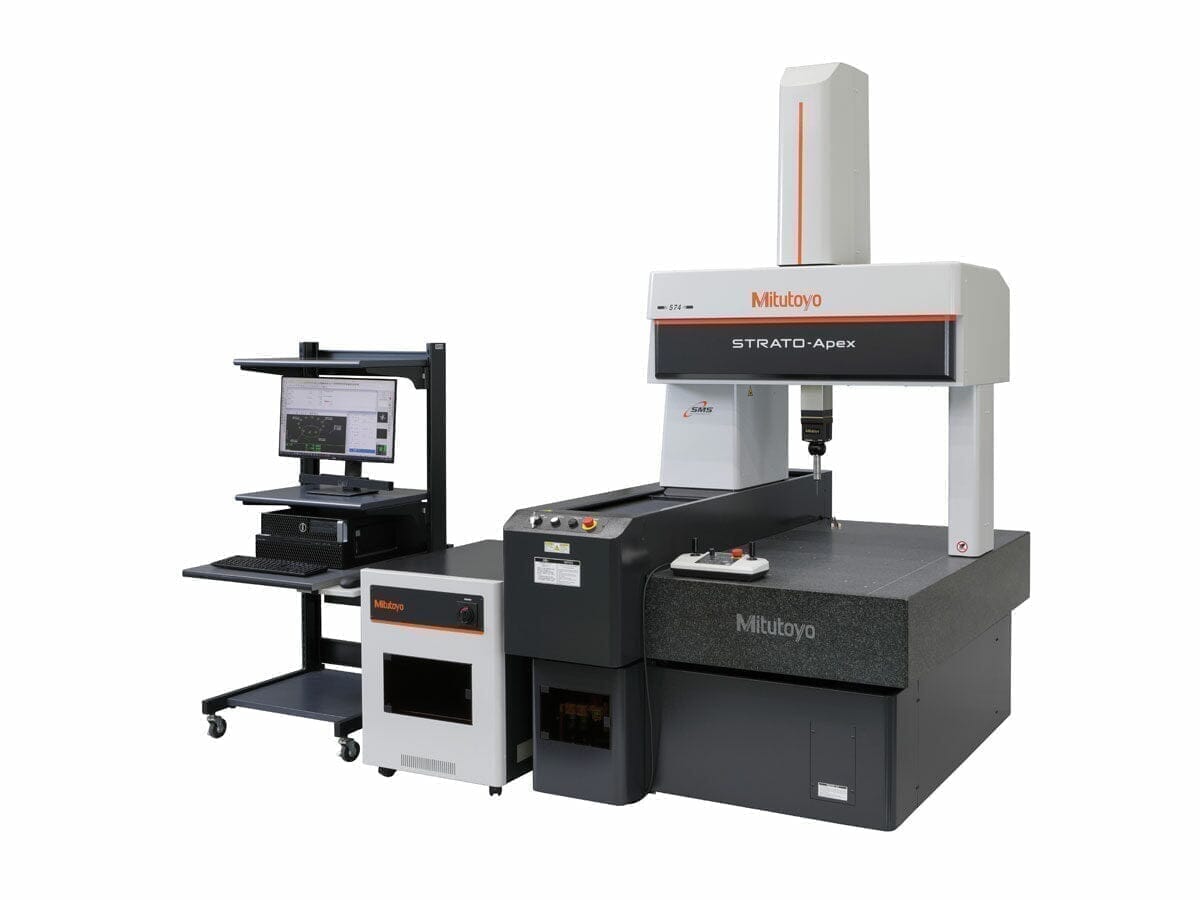

The advanced STRATO Apex Series of CNC Coordinate Measuring Machines by Mitutoyo offers precise measurements with seamless, fast operation to achieve exceptional scanning performance.
SKU:
Request for Quote

Product Features

Temperature compensation
The STRATO-Apex series CMMs feature temperature compensation that ensures accuracy within the range of 18 to 22°C (for the STRATO APEX 574, the range is 19 to 21°C), even without a temperature-controlled environment.

Vibration-damping unit
To prevent floor vibrations from affecting the main unit, a vibration-damping unit is implemented. It detects load changes resulting from the movement of individual axes.
strato-apex-5007009001600-measurement-systems-mitutoyo-indicate-technologies-745597
Ultra-high accuracy
The combination of ultra-high precision glass scales and high-performance reflective linear encoders enables ultra-high accuracy measurements on each axis of the CMM.

Technical Specifications

Download Brochure

Benefits

Technical Data

Benefits
The STRATO-Apex series of CNC CMMs is designed in various model sizes, each providing exceptional drive speed and acceleration to ensure superior scanning performance and accurate measurements.

These CMMs incorporate an innovative built-in controller that utilizes a digital servo system. This system processes position, speed, and current control loops as digital signals, resulting in reduced drift and deterioration.

With enhanced structural rigidity and advanced compensation technology, the STRATO-Apex series CMMs deliver high-performance capabilities and exceptional accuracy while minimizing probing errors.
strato-apex-5007009001600-measurement-systems-mitutoyo-indicate-technologies-745597

Technical Data

Technology:
Coordinate Measuring Machine - CNC

Units:
Inch, Metric

Resolution:
0.00000078" (0.00002mm)

Guide Method:
Air bearing on each axis

Worktable Material:
Granite

Worktable Tapped Inserts:
M8 x 1.25mm

Environment:
64.4-71.6°F / 18-22°C

Vibration Stand:
Standard

Probe System:
PH10MQ

Touch Trigger Probe:
TP200

Scanning Probe:
MPP, SP25, SP80

Laser Probe:
SurfaceMeasure Optical

Probe:
QVP

Surface Roughness Probe:
SurfTest
