SmartScope ZIP HR 250

Advanced Performance Multisensor Measurement System

SmartScope ZIP HR 250 integrates a wide field objective lens, digital zoom, and a 5-megapixel monochrome digital camera to deliver distortion-free images at low zoom and high resolution at high zoom.

Exclusive to SmartScope ZIP HR systems, ZONE3 serves as the dedicated metrology software, ensuring comprehensive functionality for precise measurements.

    SKU: smartscopeziphr250

    OGP SmartScope ZIP HR 250 Features

    Featuring a 5.5X zoom optical system with up to 60:1 digital/optical magnification, the ZIP HR 250 utilizes AccuCentric, automatically compensating the optics after each magnification change.

    Benchtop, Compound Stage
    ogp-smartscope-zip-hr-250-measurement-systems-ogp-indicate-technologies-727188
    Download Datasheet

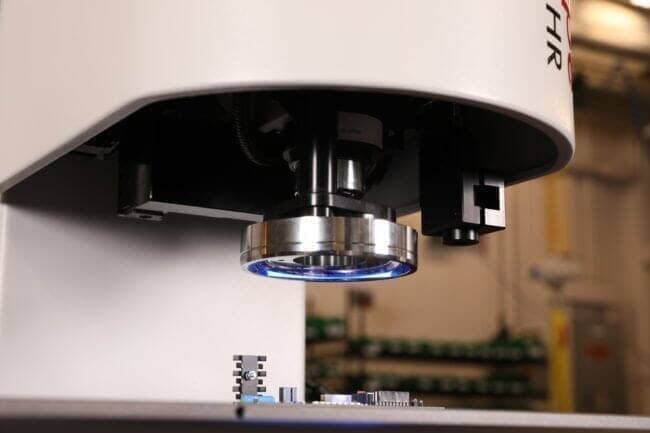

    Standard illumination includes all green LED coaxial, substage profile, and Programmable Ring Light (PRL). The PRL not only offers programmable intensity and direction of illumination but also the capability to automatically change the angle of incidence.

    Options: Touch Probe, Scanning Probe, TTL Laser, TeleStar Probe

    Smartscope ZIP HR 250 Configurations

    Technical

    Sensors & Accessories

    Software

    Technical Data

    XYZ TRAVEL (MM)
    Standard
    North America: 300 x 150 x 200
    International: 250 x 150 x 200

    Optional
    International: Extended X axis, 300

    OPTICS
    Standard
    AccuCentric auto-compensating motorized optical zoom; digital zoom; 1X and 2X interchangeable objective lenses

    Optional
    Focus Grid Projector: LED source
    Laser Adapter: Allows for field retrofit of TTL laser. Includes Laser Pointer
    Replacement Lens: 5X

    ILLUMINATION
    Standard
    Substage LED profile (green), coaxial LED surface (green), PRL with motorized angle of incidence adjustment (green)

    Optional
    Multicolor (R/G/B) PRL with motorized angle of incidence adjustment,
    SmartRing LED ring light in lieu of PRL,
    Tungsten Fiber-Optic ring light mounted below SmartRing light (for use with 2X and 5X lens only

    Sensors

    Tactile Sensor
    Touch Probe
    Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
    touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
    Tactile Sensor
    Scanning Probe
    Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
    scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
    Laser Sensor
    Through the Lens Laser
    An Integrated Laser Option for OGP Measurement Systems.

    Through-the-Lens Lasers provide a non-contact approach to surface measurement, utilizing point focus for single-point measurements or scanning for multi-point measurements.
    ogp-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-302082
    Laser Sensor
    Telestar Probe
    Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
    ogp-telestar-probe-measurement-systems-ogp-indicate-technologies-931025

    Accessories

    Accessories
    Rotary Indexes
    Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
    ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
    Accessories
    Grid Projectors
    Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
    grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

    Software

    Zone 3

    The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
    Gold_QVI_Training_Part_-_ZONE3_Programming_Points
