SmartScope Quest 300

Advanced-technology large volume dimensional measuring system that fits on a benchtop.

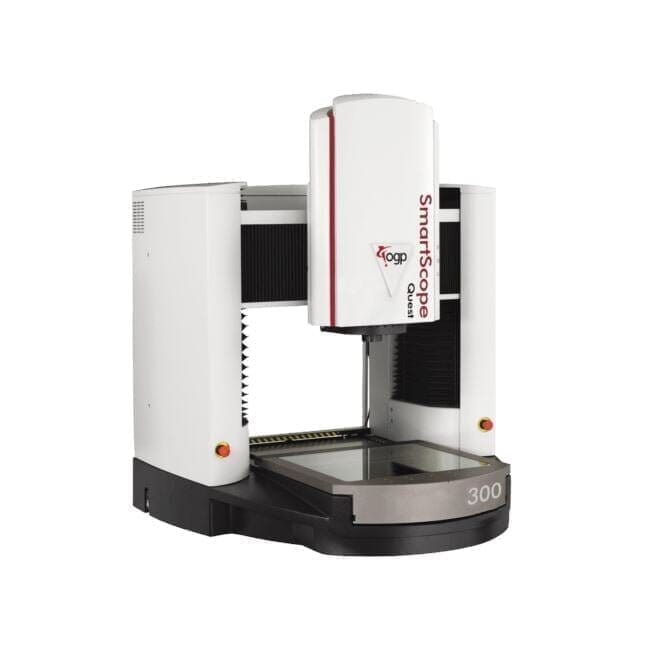

SmartScope® Quest™ 300 provides the necessary precision and versatility for 3D multisensor measurements of highly critical and demanding parts. Featuring a compact design with a distinctive "elevating bridge," this machine offers a spacious XYZ measurement volume suitable for large parts. It incorporates cutting-edge video technology and autofocus, ensuring high productivity levels

SKU: smartscopequest300
Request for Quote

OGP SmartScope Quest 300 Features

Benchtop, Elevating Bridge, Air-Bearing Z-axis

Accurate Video Metrology
Leveraging TeleStar® telecentric 10:1 zoom optics to achieve top-tier optical performance.

Superior Illumination for Optimal Video Measurements
Utilizing standard profile light, coaxial surface light, and SmartRing™ light to illuminate parts comprehensively for multisensor dimensional measurement from various angles.
ogp-smartscope-quest-300-measurement-systems-ogp-indicate-technologies-849254_a42005cd-b008-43d5-b197-7015938d773e
Options: Touch Probe, Scanning Probe, TeleStar TTL Laser or Feather Probe

Outstanding Scanning Probe Performance
Featuring an air-bearing Z-axis motion system that ensures both friction-free motion and stiffness.

Versatile Multisensor Capability
Offering optional touch probe, on-axis TeleStar TTL interferometric laser, micro-probes, and SP25 continuous contact scanning probe for a wide range of measurement options.

SmartScope Quest 300 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL
Standard
300 x 300 x 250 mm

OPTICS
Standard
10:1 AccuCentric TeleStar auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens

Optional
Focus Grid Projector: LED source
Replacement Lenses: 0.5x, 2.0x, 4.0x
Laser Lenses: 0.5x, 2.0x, 4.0x

ILLUMINATION
Patented LED numeric matching substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring Smartsing LED

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Feather Probe
Micro-touch probing to measure fragile or miniature features.
The Feather Probe by OGP offers access to petite features that cannot be reached by video measurement or traditional touch probes. It employs a specialized sensing technology to detect when a resonating stylus is in close proximity to a surface, allowing for data acquisition with minimal force, typically in milligrams.
Learn More
ogp-feather-probe-measurement-systems-ogp-indicate-technologies-526795
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
TeleStar Plus Through-the-Lens (TTL) Laser
The TeleStar Plus TTL laser utilizes distinctive interferometric sensing technology, providing exceptional measurement resolution, accuracy, and capability across Fusion, SmartScope SP, and SmartScope Quest/Vantage systems.
Learn More
ogp-telestar-plus-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-999020

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159
Accessories
Grid Projectors
Many surfaces (such as glass, clear plastic, and mirror-like finishes) create images with extremely low, or worse, nonexistent contrast. A Grid Projector accessory from OGP measures these surfaces.
Learn More
grid-projectors-measurement-accessory-ogp-indicate-technologies-491134

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points
