Fusion 400

Innovative large field-of-view 3D multisensor system.

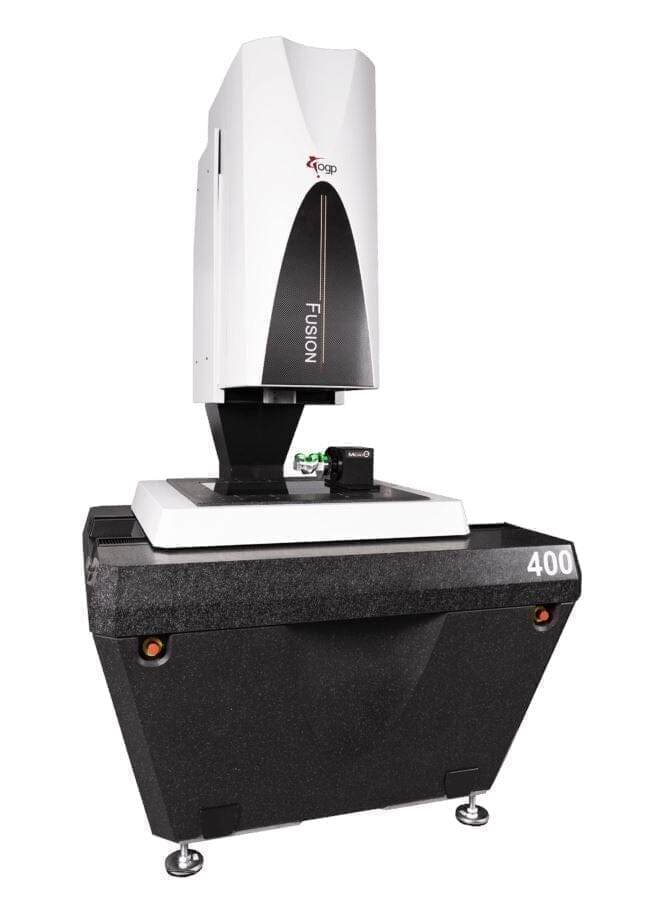

The OGP Fusion 400 systems are floor models known for their large field-of-view (LFOV) multisensor capabilities, featuring high accuracy and a 3D measuring range of 400 x 300 x 250 mm

SKU: ogpfusion400
Request for Quote

OGP Fusion 400 Features

Floor model, Fixed Optics

Optics
The system incorporates dual optical paths that facilitate an instant magnification change between a low magnification, providing a 100 mm viewing area, and high magnification for precise small feature measurements, equipped with autofocus and fully telecentric design for image accuracy.

Stable Platform
Built on a solid cast base with a granite surface plate and compound stage, the system ensures a stable and reliable foundation for extremely accurate measurements.
ogp-fusion-400-measurement-systems-ogp-indicate-technologies-655890
Options: touch and scanning probes, Telestar TTL Laser, Rainbow Probe, and rotary indexers.

Multisensor Versatility
The system offers optional sensors such as touch probe, Scanning Probe, TeleStar TTL laser, Rainbow Probe, and 4th and 5th axis rotary indexers. All sensors are meticulously placed on the optical centerline through a patented rotational deployment mechanism.

Productivity
Utilizing 3D CAD-based ZONE3 metrology software, the system incorporates integral AutoID and FeatureExtractor functions for convenient one-touch measurements. Full-field image processing and high-speed cameras enable the rapid measurement of entire scenes

 OGP Fusion 400 Configurations

Technical

Sensors & Accessories

Software

Technical Data

XYZ TRAVEL
Standard
350 x 250 x 250 mm

OPTICS
Telecentric, dual optical magnification with 100 mm low mag and 20 mm high mag field of view

ILLUMINATION
Standard
Profile – Collimated, full field, LED
Surface – Square-on internal
Oblique Surface – Oblique ring light with 8 programmable segments

Sensors

Tactile Sensor
Touch Probe
Expanding the measurement capabilities of OGP's systems, single-point touch-trigger probing allows for the assessment of features challenging to image or surface boundaries inaccessible to video, enhancing overall measurement versatility.
Learn More
touch-probe-tp20tp200-indicate-technologies-indicate-technologies-481215
Tactile Sensor
Scanning Probe
Automatically Acquires Data Points Between User-Defined Start and End Points - Regardless of Surface Complexity
Learn More
scanning-probe-measurement-accessory-ogp-indicate-technologies-836103
Laser Sensor
Telestar Probe
Self-Contained Off-Axis Partial Coherence Interferometric Range Sensor for Surface Contour Measurement
Learn More
TeleStarProbe
Laser Sensor
TeleStar Plus Through-the-Lens (TTL) Laser
The TeleStar Plus TTL laser utilizes distinctive interferometric sensing technology, providing exceptional measurement resolution, accuracy, and capability across Fusion, SmartScope SP, and SmartScope Quest/Vantage systems.
Learn More
ogp-telestar-plus-through-the-lens-ttl-laser-measurement-systems-ogp-indicate-technologies-999020
Laser Sensor
Rainbow Probe
High resolution, non-contact optical sensor for surface measurements.

Easily measures transparent, translucent, fragile, liquid or easily deformable surfaces and are a mounted in mechanical deployment mechanisms so they can be retracted when not in use.
Learn More
ogp-rainbow-probe-measurement-systems-ogp-indicate-technologies-646293

Accessories

Accessories
Rotary Indexes
Our measurement systems equipped with rotary indexers enable the comprehensive characterization of symmetric parts and those with significant features on multiple sides. These rotaries, available in various capacities, resolutions, and configurations (both simple and compound), facilitate complete 4 and 5-axis measurements within a single setup.
Learn More
ogp-dual-rotary-indexers-measurement-systems-ogp-indicate-technologies-803159

Software

Zone 3

The ZONE3 CAD-based metrology software offers utmost flexibility for multisensor measurements, whether utilizing a CAD model or not. Its entirely graphical user interface, visual validation at each stage, and graphical reporting contribute to making ZONE3 the most user-friendly and intuitive 3D metrology software currently accessible.
Learn More
Gold_QVI_Training_Part_-_ZONE3_Programming_Points

OGP Fusion Demo Video
