Cobra 3D

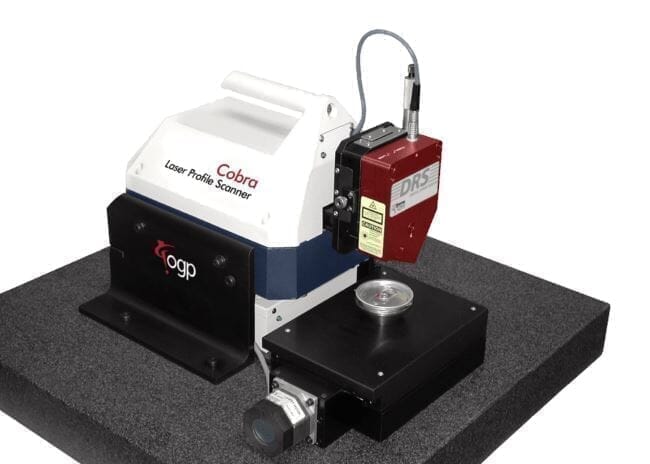

Portable Laser Scanning System With Motorized X Axis



Cobra 3D offers comprehensive area profiling capabilities, measuring profiles in both the X and Z axes. With a high-resolution laser scanning capability down to 5 µ inches, it ensures precise and detailed profiling results. The versatility of Cobra 3D allows it to be used on a benchtop or placed directly on a part, accommodating various work environments for diverse profiling needs.

    SKU: ogpcobra3d

    OGP Cobra 3D Features

    Precision Surface Profiles with Cobra
    Cobra ensures accuracy in surface height information, employing a low-power laser scanning mechanism as it moves across a surface.

    Versatile Laser Sensors
    Choose from a selection of available DRS lasers, each presenting various resolutions and standoff distances, catering to a diverse range of applications.
    cobra-3d-measurement-systems-ogp-indicate-technologies-568308
    Real-Time Imaging Capability
    Opt for the optional video camera to enable on-axis imaging during part measurement. Observe the laser spot traversing the part's surface, complemented by on-axis LED surface illumination under 15x magnification. Adjust this illumination through Scan-X for optimal image contrast

    OGP Cobra 3D Configurations

    Technical

    Sensors & Accessories

    Software

    Technical Data

    SCAN LENGTH & Z-AXIS ADJUSTMENT RANGE
    Standard
    Scan length – X-axis 100 mm, Y-axis 50 mm
    Z-axis adjustment range – 50 mm

    LASER SCANNING RESOLUTION
    0.125 µm

    SCANNING SPEED
    5 mm / sec. at 30 µm spacing on a specular surface

    Sensors

    Laser Sensor
    Digital Range Sensor (DRS) Laser
    Determines Surface Heights, Through Laser Triangulation
    ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529

    Software

    Scan X Software

    Scan-X is a powerful, yet easy-to-use, surface profiling software package that allows users to visualize and make measurements from surfaces. When used online with the Cobra Laser Profile Scanner, Scan-X analyzes laser scan data to produce a high-resolution, two-dimensional profile and/or three-dimensional raster.
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
