Cobra 2D

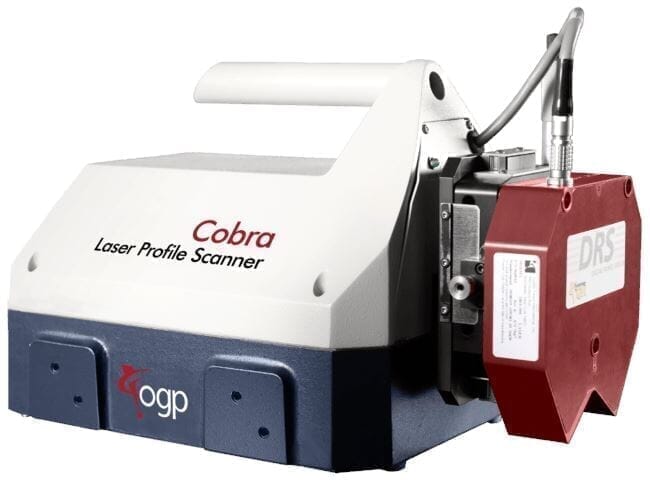

A portable laser scanning system that provides high resolution linear profiles.



Cobra 2D stands out as a portable laser scanning system offering high-resolution linear profiles. Its utilization of low-power laser light makes it particularly well-suited for fragile or pliable parts with critical surface contours. This system is efficient and enables the swift measurement of height, length, slope, and radius. Cobra 2D operates by measuring surface height as it scans along its Y-axis

    SKU: ogpcobra2d

    OGP Cobra 2D Features

    Accurate Surface Profiles with Cobra
    Experience precision in surface height measurements with Cobra as its low-power laser meticulously scans over a surface, ensuring accuracy.

    Selectable Laser Sensors for Varied Applications
    Tailor your laser setup with the available DRS lasers, offering a spectrum of resolutions and standoff distances to meet the requirements of diverse applications.
    cobra-2d-measurement-systems-ogp-indicate-technologies-952437
    Real-Time Imaging for Enhanced Visibility
    Opt for real-time imaging with the optional video camera, providing on-axis views of the part being measured. Watch the laser spot traverse the part's surface during measurement, complemented by on-axis LED surface illumination under 15x magnification, adjustable through Scan-X for optimal image contrast

    OGP Cobra 2D Configurations

    Technical

    Sensors & Accessories

    Software

    Technical Data

    SCAN LENGTH & Z-AXIS ADJUSTMENT RANGE
    Standard
    Scan length – X-axis NA, Y-axis 50 mm
    Z-axis adjustment range – 50 mm

    LASER SCANNING RESOLUTION
    0.125 µm

    SCANNING SPEED
    5 mm / sec. at 30 µm spacing on a specular surface

    Sensors

    Laser Sensor
    Digital Range Sensor (DRS) Laser
    Determines Surface Heights, Through Laser Triangulation
    ogp-drs-laser-measurement-systems-ogp-indicate-technologies-684529

    Software

    Scan X Software

    Scan-X is a powerful, yet easy-to-use, surface profiling software package that allows users to visualize and make measurements from surfaces. When used online with the Cobra Laser Profile Scanner, Scan-X analyzes laser scan data to produce a high-resolution, two-dimensional profile and/or three-dimensional raster.
    ogp-scan-x-measurement-systems-ogp-indicate-technologies-878336
