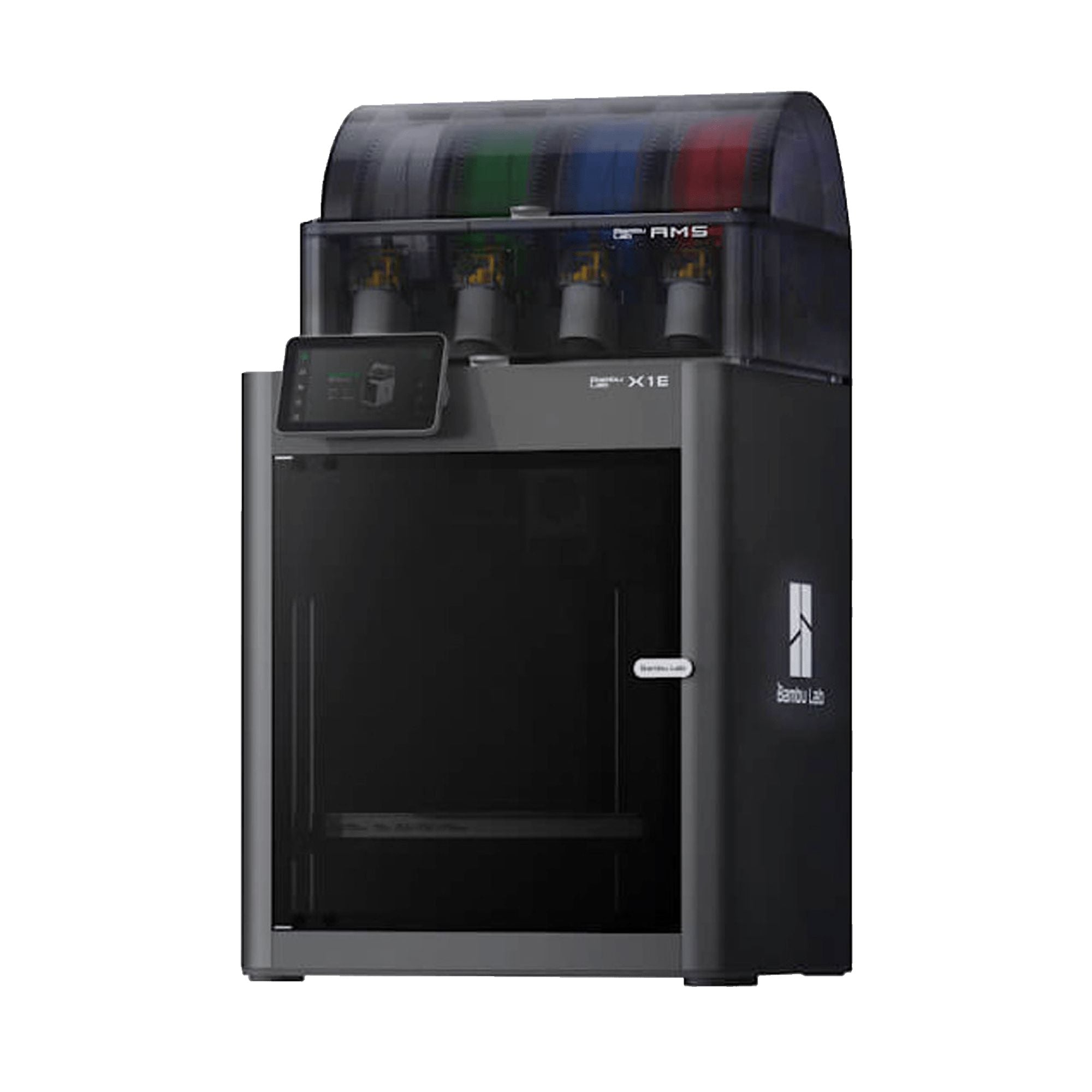

Bambu Lab X1E
For professionals and engineering applications
Unboxing Bambu Lab X1E
Watch Indicate Technologies' business development representative, Richard, unbox the X1E printer.
In this video, you'll see:
- A close-up look at the sleek design and features of the X1E.
- The unboxing experience, including all the included components.
Bambu Lab X1E Features
Enhanced And More Connection Options
Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection
The X1E presents the flexibility to connect to your devices via its recently incorporated Ethernet port, guaranteeing resilient network communication in intricate environments. Ethernet connectivity proves beneficial in crowded wireless signal settings. Furthermore, the X1E is equipped with WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/EAP-TTLS) and dedicated physical kill switches for both Wi-Fi and Ethernet, addressing rigorous network security demands
Off-Cloud Operation
Fully Functional With LAN Only Mode
The X1E has the capability to function autonomously without needing a connection to Bambu Cloud Service, operating seamlessly within your local network. Users can remotely manage the X1E through LAN communication, eliminating the need for an Internet connection.
Heavy Duty Air Filtration
Effectively Filter Particulates And VOCs Generated by 3D Printing
Bambu Lab has integrated a G3 pre-filter, an H12 HEPA filter, and a premium coconut shell activated carbon filter to deliver optimal air filtration. This enhanced filtration system is effective in reducing excess odors and particulates, particularly when printing in less ventilated environments
Active Heating And Controlled Chamber Temp
Reduce Warping, Improve Layer Bonding
The X1E is equipped to actively heat and regulate the chamber temperature. Precise control of the chamber temperature, reaching up to 60°C or 140°F, enhances print quality, particularly for filaments susceptible to warping, such as ABS and PC
320 °C (608 °F) Nozzle Temp
More Heat For Higher Temperature Materials
The X1E is equipped to actively heat and regulate the chamber temperature. Precise control of the chamber temperature, reaching up to 60°C or 140°F, enhances print quality, particularly for filaments susceptible to warping, such as ABS and PC
Robust High Speed CoreXY
Super Fast And Rigid Structure For Continuous High Speed Printing
The exceptional carbon-fiber rods integrated into the CoreXY motion structure empower the X1E to achieve a toolhead acceleration of 20,000 mm/s² by minimizing the weight of moving components. This increased acceleration enables the X1E to sustain its maximum travel speed of 500 mm/s for extended durations, effectively reducing the overall print time.
Vibration And Extrusion Compensation
Stable & Quality Prints Even At Higher Speeds
The X1E is capable of actively compensating for XY-axis vibrations and extrusion issues, ensuring exceptionally smooth print quality. This process is fully automatic, eliminating the necessity for manual adjustments.
AI Failure Detection
Reduce Filament Wastage And Machine Downtime
The X1E is capable of actively compensating for XY-axis vibrations and extrusion issues, ensuring exceptionally smooth print quality. This process is fully automatic, eliminating the necessity for manual adjustments.
Intelligent Filament Management
Supports Auto Filament Reload and Enables Multi-Material Printing with Support Material for Improved Surface Quality
The X1E is capable of actively compensating for XY-axis vibrations and extrusion issues, ensuring exceptionally smooth print quality. This process is fully automatic, eliminating the necessity for manual adjustments.
Bambu Lab X1E Technical Specifications
X1E
Wi-Fi
Frequency Range: 2400 MHz - 2483.5 MHz
WPA2-Enterprise:
EAP-PEAP
EAP-TLS
EAP-TTLS
Ethernet
Socket: RJ45
Speed: 100 Mbps / Full Duplex
Supported Filaments
PLA, PETG, TPU, PVA, BVOH: Optimal
ABS, ASA, PC, PA, PET: Superior
Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA: Superior
PPA-CF/GF, PPS, PPS-CF/GF: Ideal
Heating
Active Chamber Heating: Yes
Maximum Chamber Control Temperature: 60℃
Air Purification
Pre-filter grade: G3
HEPA filter grade: H12
Activated Carbon Filter type: Coconut Shell Granulated
VOC Filtration: Optimal
Particulate Matter Filtration: Yes
Network Control
Ethernet: Yes
Wireless Network: Wi-Fi
Network Kill Switch: Wi-Fi & Ethernet
Removable Network Module: Yes
802.1X Network Access Control: Yes
Toolhead
Hot End: All-Metal
Nozzle: Hardened Steel
Max Hot End Temperature: 320℃
Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20000 mm/s2
Sensors
Bambu Micro Lidar: Yes
Chamber Monitoring Camera: 1920*1080 Included
Physical Dimensions
Dimensions: 389*389*457 mm³
Net Weight: 16kg
X1-Carbon
Wi-Fi
Frequency Range: 2400 MHz - 2483.5 MHz
WPA2-Enterprise:
No
Ethernet
Socket: /
Speed: /
Supported Filaments
PLA, PETG, TPU, PVA, BVOH: Optimal
ABS, ASA, PC, PA, PET: Ideal
Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA: Ideal
PPA-CF/GF, PPS, PPS-CF/GF: No
Heating
Active Chamber Heating: No
Maximum Chamber Control Temperature: /
Air Purification
Pre-filter grade: None
HEPA filter grade: None
Activated Carbon Filter type: Coal Based Pellets
VOC Filtration: Capable
Particulate Matter Filtration: No
Network Control
Ethernet: No
Wireless Network: Wi-Fi
Network Kill Switch: No
Removable Network Module: No
802.1X Network Access Control: No
Toolhead
Hot End: All-Metal
Nozzle: Hardened Steel
Max Hot End Temperature: 300℃
Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20000 mm/s2
Sensors
Bambu Micro Lidar: Yes
Chamber Monitoring Camera: 1920*1080 Included
Physical Dimensions
Dimensions: 389*389*457 mm³
Net Weight: 14.13kg
