Name: S5 Pro Bundle
Brand: UltiMaker
SKU: 218252, 217950, & 218053
Price: 11340.0 USD
Availability: InStock

Ultimaker S5 Pro Bundle 3D Printers Ultimaker - Indicate Technologies

S5 Pro Bundle 3D Printers Ultimaker - Indicate Technologies

UltiMaker

S5 Pro Bundle

$11,340.00

Save {}Sold out

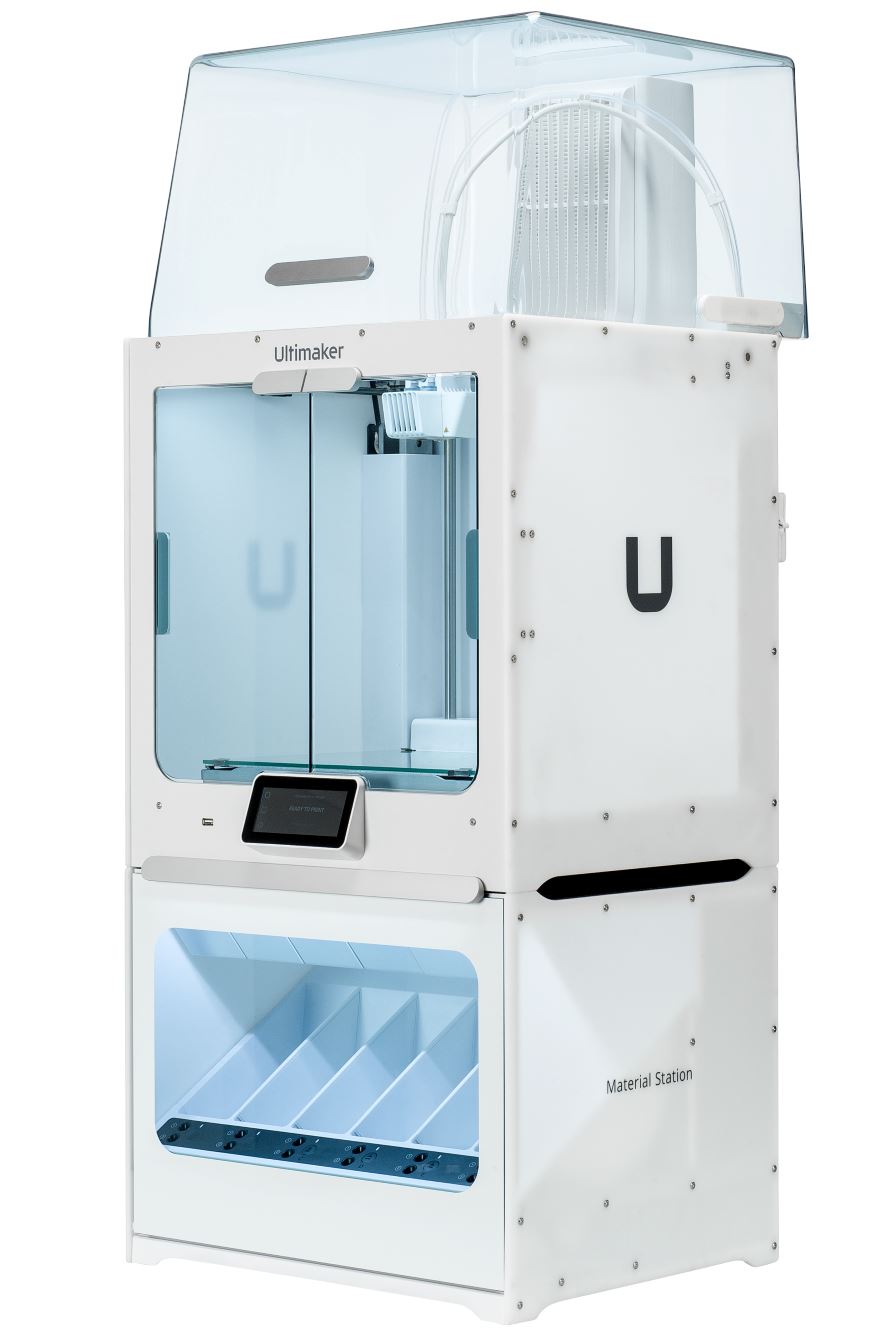

The Ultimaker S5 Pro Bundle consists of the S5 printer combined with the Air Manager and Material Station add-ons. The easy-to-use and industrially capable S5 Pro Bundle delivers an automated professional 3D printing experience. The Air Manager provides efficient air filtering and helps maintain a stable printing temperature, while the Material Station offers automatic material handling and humidity control to keep 3D printing materials in optimal conditions. Together, these features unlock 24/7 productivity and demanding applications with an extended range of materials.

Highlights:

Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Compatible with high-strength glass and carbon fiber filament
Down to 20 micron (0.001 inch) layer resolution
Open filament system – print with any 2.85 mm material
4.7-inch touchscreen interface – Winner of iF Design Award 2019
EPA air filtration for up to 95% of ultra fine particles
Automatic material handling for up to 6 spools with humidity controlled storage

Compatible Materials

General Purpose Materials: PLA, Tough PLA, PETG
Engineering Materials: ABS, Nylon, TPU 95A, PC, PP, CPE, CPE+
Composite Materials: PET-CF
Support Materials: PVA, Breakaway
Third-party materials are also compatible.

SKU: 218252, 217950, & 218053

Quantity:

Request for Quote

Product Features

Larger build volume: Scale up with bigger parts or batch production

Touch screen: Effortless operation via an award-winning user interface

Advanced active leveling: Reliable first-layer adhesion enables unattended use

Front enclosure: Improved printing environment for better print results

Flow sensor: Stay informed when filament runs out to increase print success

Easy setup and monitoring: With NFC material recognition and internal camera

Air Filtration: Filter up to 95% of ultra fine particles with a replaceable EPA filter

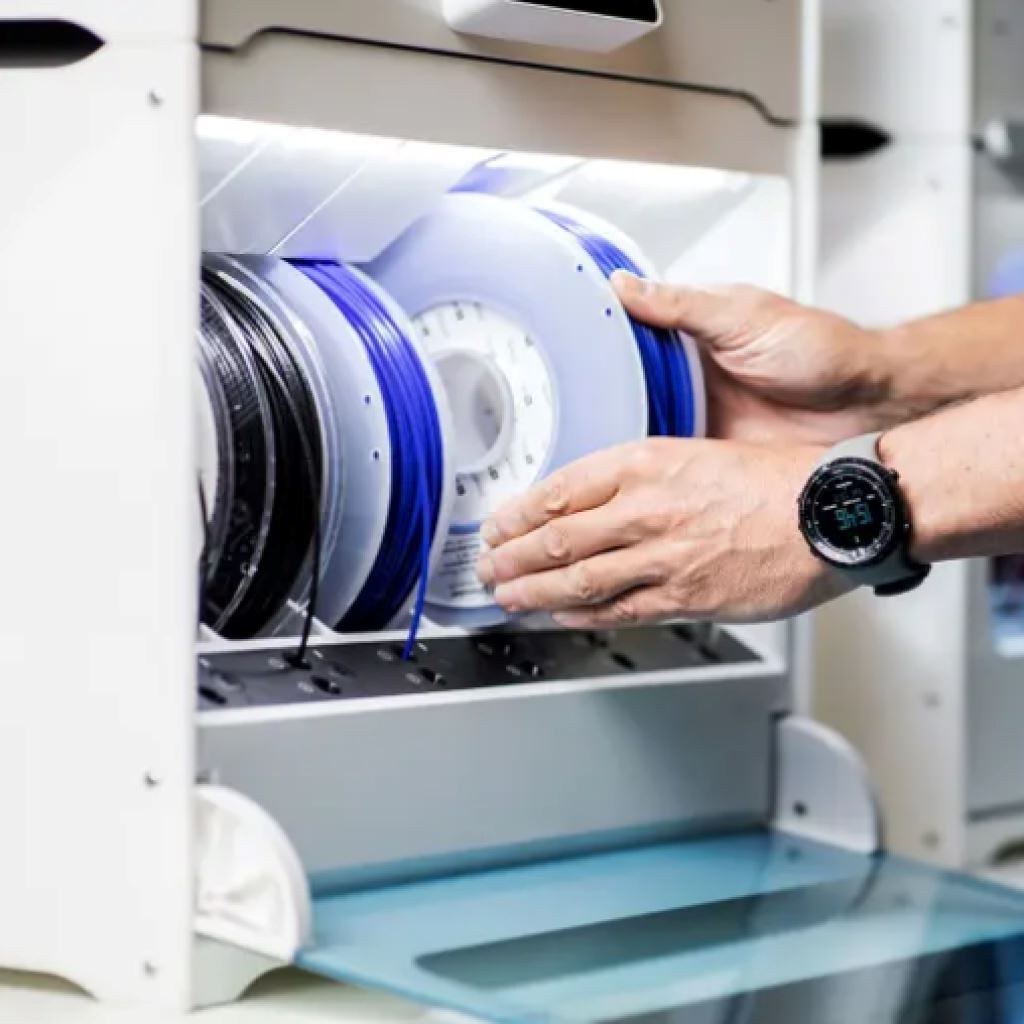

Automatic Material Handling:

Load up to 6 spools and unlock easy material switching with humidity control for optimal printing

Composite materials compatible: Print parts with high strength and unique properties

Print with 200+ materials: Ready to sync via UltiMaker Marketplace. These material profiles have been tested for thousands of hours by their manufacturers and users in the field.

Network connectivity: Print via Wi-Fi, LAN, cloud, or with USB

Technical Specifications

Dimensions

Build Volume

330 x 240 x 300 mm

(13 x 9.4 x 11.8 inches)

Assembled dimensions

495 x 500 x 1197 mm

(19.5 x 19.5 x 47.1 inches)

Print technology

Fused filament fabrication (FFF)

Compatible filament diameter

2.85 mm

Weight

41.9 kg (92.4 lbs)

Power input

100-240 VAC, 50-60 Hz

Maximum power output

600W

Printer Properties

Layer Resolution

0.25 mm nozzle: 150 - 60 micron

0.4 mm nozzle: 200 - 20 micron

0.6 mm nozzle: 300 - 20 micron

0.8 mm nozzle: 600 - 20 micron

XYZ resolution

6.9, 6.9, 2.5 micron

Feeder type

Dual-geared feeder, reinforced for composite materials

Display

4.7-inch (11.9 cm) color touchscreen

Print core replacement

Swappable print cores

Print head

Dual extrusion print head with a unique auto-nozzle lifting system and swappable print cores

Nozzle diameters

0.4 mm (included)

0.25 mm, 0.6 mm, 0.8 mm (sold separately)

Operation Parameters

Air extraction rate

1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)

Filter efficiency

Up to 95% of UFP's

Material capacity

6 spools

Compatible spools

Width: 50-70 mm (2-2.7 in)

Diameter: 197-203 mm (7.8-8 in)

Core diameter: > 98 mm (3.8 in)

Nozzle temperature

180 - 280 °C

Nozzle heat up time

< 2 minutes

Build speed

< 24 mm3/s

Operating sound

< 51 dBA

Build plate leveling

Advanced active leveling

Build plate

20 - 140 °C heated glass build plate

Build plate heat up time

< 4 minutes (from 20 to 60 °C)

Operating ambient temperature

15-32 °C (59-90 °F)

Non-operating temperature

0-32 °C (32-90 °F)

ultimaker-s5-pro-bundle-3d-printers-ultimaker-indicate-technologies-986388

Ecosystem

Supplied Free Software

UltiMaker Cura – print preparation software/full settings and monitoring compatibility

UltiMaker Digital Factory – remote printer management software

UltiMaker Academy Essentials - (3D Printing e-learning modules)

Plugin Integration

SolidWorks, Siemens NX, Autodesk Inventor

Supported OS

MacOS, Windows, and Linux

Supported File Types

UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG

Printable formats: G, GCODE, GCODE.gz, UFP

File Transfer

Wi-Fi (2.4 GHz), Ethernet, USB

ultimaker-s5-pro-bundle-3d-printers-ultimaker-indicate-technologies-192396

Service and Support

Training

Training is available online. Register your Ultimaker S5 Pro Bundle for a free online setup and onboarding tutorial in the Ultimaker 3D Printing Academy.

Warranty Period

12 months , Extended warranty available

Expert Support

Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support

Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
