Air Manager for S5

$1,101.45
Save {}Sold out

The Ultimaker S5 Air Manager ensures a safer working environment, providing a closed, inside-out airflow for the Ultimaker S5 3D printer. It filters up to 95% of all ultrafine particles (UFPs) emitted during 3D printing and forms a safe, physical barrier to the print area. Optimized software profiles precisely control filtering for every Ultimaker material and over 40 third-party filaments, so you can focus on creating the perfect 3D printed part with any material you choose. No worries about UFPs, and no extra time configuring your printer.



The Air Manager and Material Station empower the Ultimaker S5 to deliver high-quality 3D printed parts and models at maximum output. Together, the Ultimaker S5 Pro Bundle’s huge capacity and end-to-end material handling increases print success rate and uptime to 24/7 reliable production – while minimizing human error, print job time, and operator time.

SKU: 217950

Product Features

Air Filtration: The Ultimaker S5 Air Manager uses EPA filtration to remove up to 95% of ultrafine particles

Controlled extraction: Inside-out airflow optimized for filtering and print quality

Enhanced safety: Physical barrier prevents reaching inside the printer and touching moving parts and hot components
S5_AM1
Optimized for your application: Detects material being used and adjusts airflow

Easy setup: Printer detects when the Air Manager is connected

Smart monitoring: Printer tracks filter usage and prompts replacement

Technical Specifications

Dimensions

Properties

Compatibility

Service and Support

Dimensions


Dimensions
490 x 503 x 350 mm (19.3 x 19.8 x 13.8 in)

Dimensions (including Ultimaker S5)
490 x 503 x 967 mm (19.3 x 19.8 x 38 in)

Net weight
3.6 kg (7.9 lbs)
S5AM2

Properties

Filter Technology
Replaceable EPA filter

Fan Technology
Air extraction by low-noise brushless fan

Air refresh rate
1 - 50 m3/h (35 m3/h nominal rate for most materials at 23°C)
Filter Efficiency
Up to 95%

Filter Replacement
Recommended every 1,500 print hours (approx. 1 year)

Operating Sound
< 51 dBA (including Ultimaker S5)

S5Am3

Compatibility

Connection (data and power)
UMB connection (included)

Compatible 3D Printers
Ultimaker S5 3D printer is required for use

Compatible Materials
Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA, Breakaway (Also supports third-party materials)

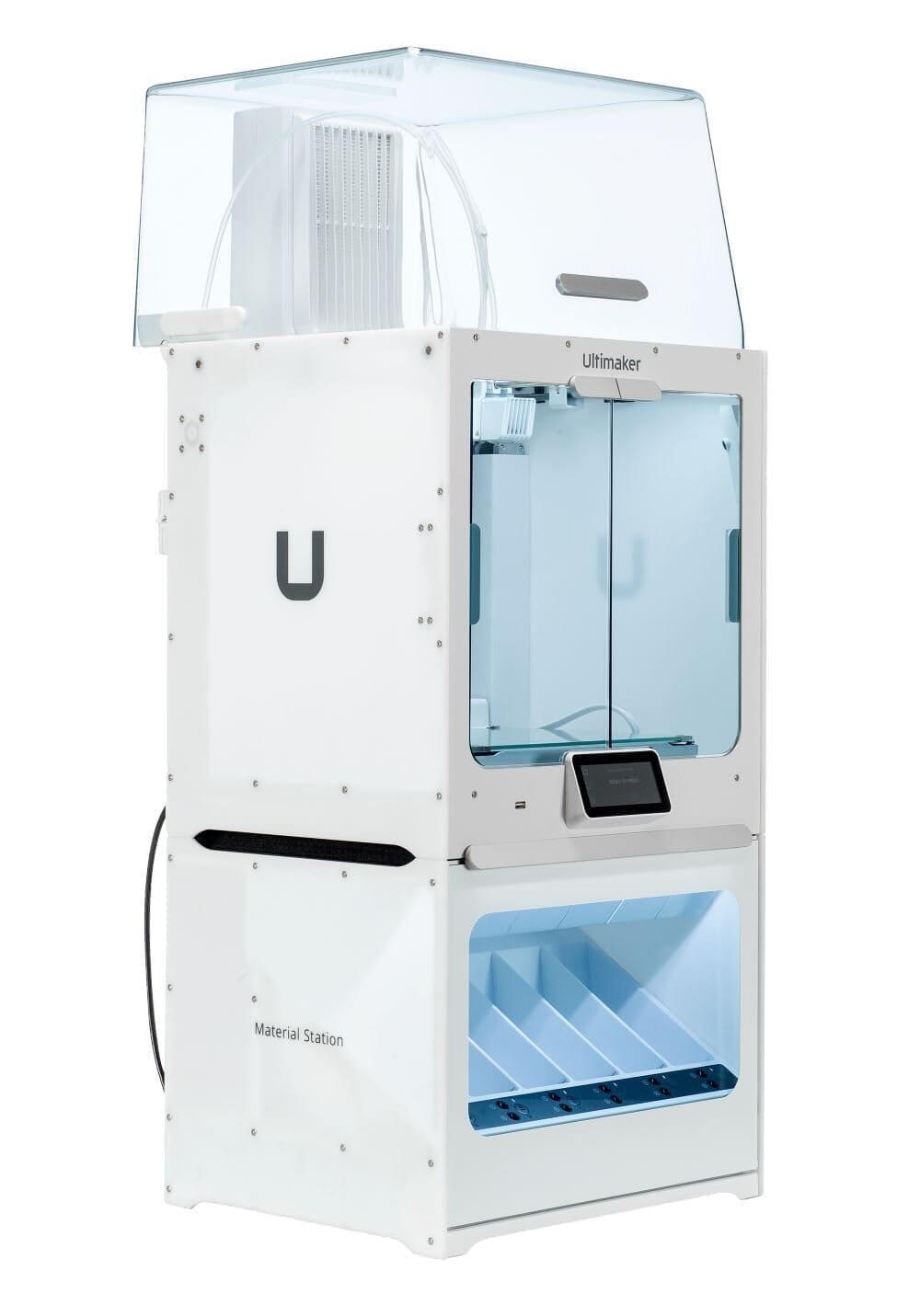

Ultimaker S5 Material Station
Simplify and automate material handling

Metal Expansion Kit
The Air Manager is highly recommended when printing with the Ultimaker Metal Kit
ultimaker-s5-pro-bundle-safe-for-unattended-use

Service and Support

Warranty Period
12 months

Expert Support
Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support
Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more
S5_AM4

Product Video

Watch the introduction video for the UltiMaker S5 Pro Bundle:
