About This Item
The 3DeVOK MQ combines professional 3D geometry scanning with high-resolution true-to-life color capture, creating photorealistic digital twins in minutes. Whether you’re developing digital assets, preserving cultural heritage, or creating AR/VR content, the 3DeVOK MQ brings vibrant realism to all your scans.
Technical Specifications
3DeVOK USA — Technical Datasheet

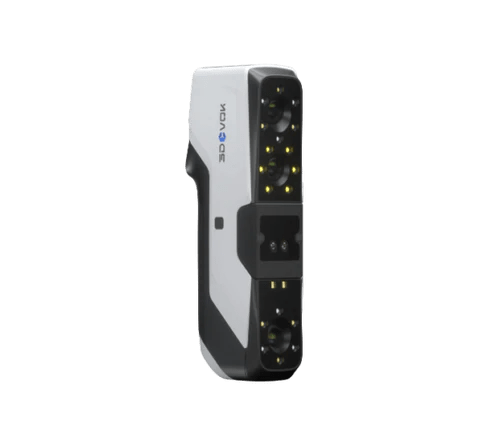

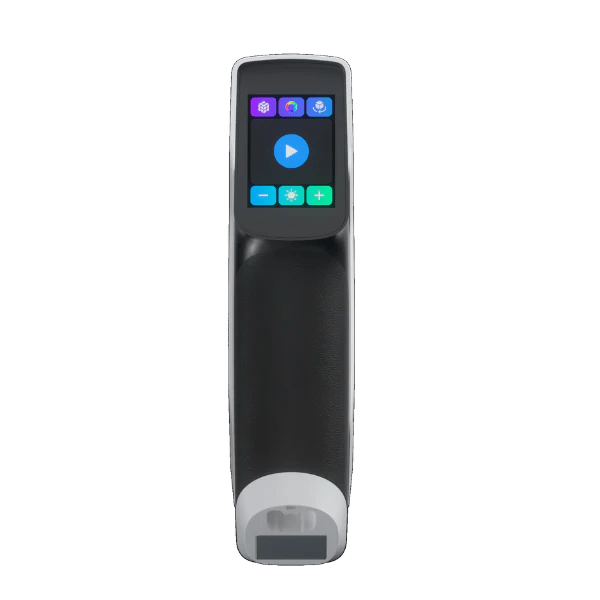

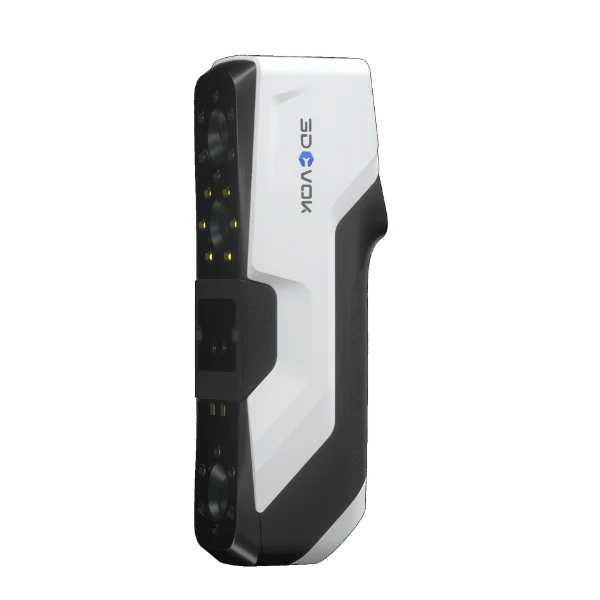

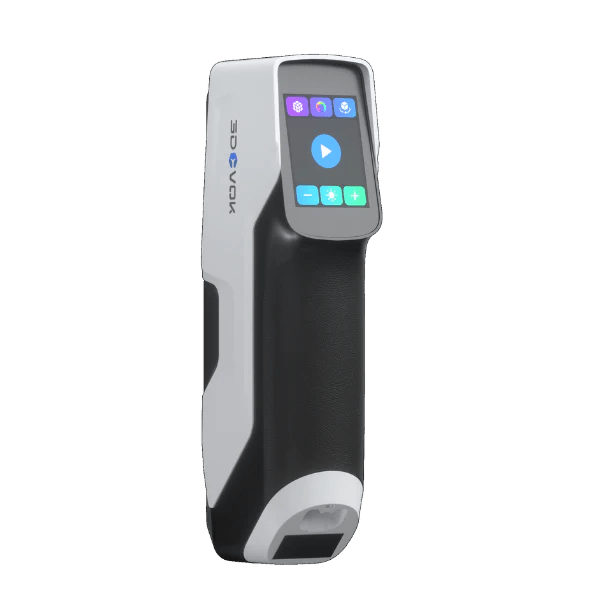

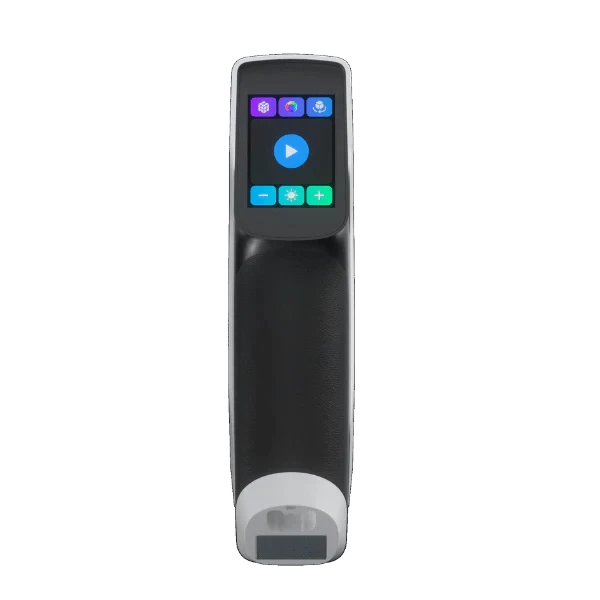

3DeVOK MQ
Full-Color 3D Scanner
Professional 3D geometry scanning with high-resolution true-to-life color capture. Creates photorealistic digital twins in minutes — no spray, no markers, no limits.
Markerless
Eye-Safe Laser
Dual IR Mode
True-Color Texture
0.08 mm
Basic Accuracy
4.5M
Points / Second
70 FPS
Max Scan Speed
24-bit
Color Depth
Highlights
Key Features
Accurate
Industry-grade precision for demanding applications.
Up to 0.08 mm
Detailed
Captures intricate surface details, edges, and complex contours.
0.1 mm resolution
Vivid Color
True-to-life color textures directly from scan — no post-processing needed.
24-bit color & texture
Fast
High-speed point acquisition for efficient workflows.
4.5 million pts/s
Versatile Size Range
Scan tiny mechanical parts or large furniture with the same device.
2 in — 16.5 ft
All-Environment
Scan indoors, outdoors, low-light, or direct sunlight reliably.
No spray needed
Technology
Dual-Mode Scanning System
Mode 1
22-Line Infrared Laser
Ideal for small objects as tiny as 2 inches. Picks up fine details across a wide range of materials with no preparation required. Invisible and completely eye-safe (Class I).
Mode 2
Infrared VCSEL Speckle — 2 Sub-modes
For scanning people, body parts, or large objects over 12 inches. Choose Fine mode for extra detail or Rapid mode for faster results at ultra-large FoV.
Specifications
Technical Specifications — 3DeVOK MQ
| Parameter | 3DeVOK MQ | 3DeVOK MT (reference) |
|---|---|---|
| Light Source | 22 infrared laser lines (invisible) Infrared VCSEL structured light (invisible) |
22 IR laser lines + Infrared VCSEL + 34 blue laser lines |
| Laser Class | Class I (eye-safe) | Class I & Class II (eye-safe) |
| Basic Accuracy* | Up to 0.08 mm | Up to 0.04 mm |
| Point Distance | 0.1 – 5 mm | 0.05 – 5 mm (Blue) / 0.1 – 5 mm (IR) |
| Scanning Rate | Up to 2,450,000 pts/s (IR Laser) Up to 4,500,000 pts/s (IR Speckle) |
Up to 2,450,000 / 4,500,000 / 3,300,000 pts/s |
| Scanning Speed | Up to 70 FPS (IR Laser) Up to 30 FPS (IR Speckle) |
Up to 70 FPS / Up to 30 FPS |
| Field of View | 5.51×5.51 in – 19.29×19.29 in (IR Laser) 1.97×2.95 in – 43.31×39.37 in (IR Speckle) |
Same as MQ |
| Scanning Distance | 5.91 – 39.37 in (IR Laser) 5.91 – 59.06 in (IR Speckle) |
Same as MQ |
| Texture Capture | ✓ Available — 24-bit true color | ✓ Available |
| Alignment Modes | Geometric Features, Hybrid, Texture, Markers | Same as MQ |
| Scan Features | Markerless, Light-free, Partial fine, Rapid ultra-large FoV | Same as MQ |
| Object Size Range | 2 inches – 16.5 feet | 2 inches – 16.5 feet |
| Wireless Option | Optional Airgo Handle (wireless) | Optional Airgo Handle (wireless) |
*Laboratory theoretical accuracy test results are subject to uncertainty errors.
Software
3DeVOK Studio
Export File Formats
OBJ
STL
PLY
ASC
MK2
TXT
EPJ
APJ
SPJ
MAP
SK
Compatible Software
AutoCAD
SolidWorks
Blender
Fusion 360
3ds Max
Maya
Cinema 4D
ZBrush
PolyWorks
MeshLab
Geomagic Design X
QuickSurface
Minimum PC Configuration
- OS: Windows 10, 64-bit
- CPU: Intel® Core™ i7-10750H @ 2.60 GHz
- RAM: 32 GB (Virtual memory ≥ 32 GB recommended)
- GPU: NVIDIA GeForce GTX 1660 Ti (6 GB VRAM)
- Note: Smooth scanning up to 40 FPS; hybrid alignment up to 15 FPS
Recommended PC Configuration
- OS: Windows 10/11, 64-bit
- CPU: Intel® Core™ i7-13650HX or above
- RAM: 32 GB and above
- GPU: NVIDIA RTX 3060 or above, 6 GB+ dedicated memory
- Note: Stable high frame rates, large data processing, and hybrid alignment
Applications
Industries & Use Cases
Reverse Engineering
Medical Rehabilitation & Orthotics
Digital Art & 3D Creation
Game Development, AR/VR & VFX
Museums, Galleries & Cultural Heritage
Education & Research
Product Design & Engineering
Interactive Media
3D Printing & Prototyping
Workflow
3-Step Scan Process
01
Scan your object
Move the scanner freely. Real-time feedback shows what's captured so you never miss a spot.
02
Refine your scan
Clean, align, and optimize your 3D model with powerful yet intuitive tools in 3DeVOK Studio.
03
Export and create
Export in common formats. Ready for 3D printing, design, or rendering in the software you already use.
