Technical Specifications
SCANOLOGY

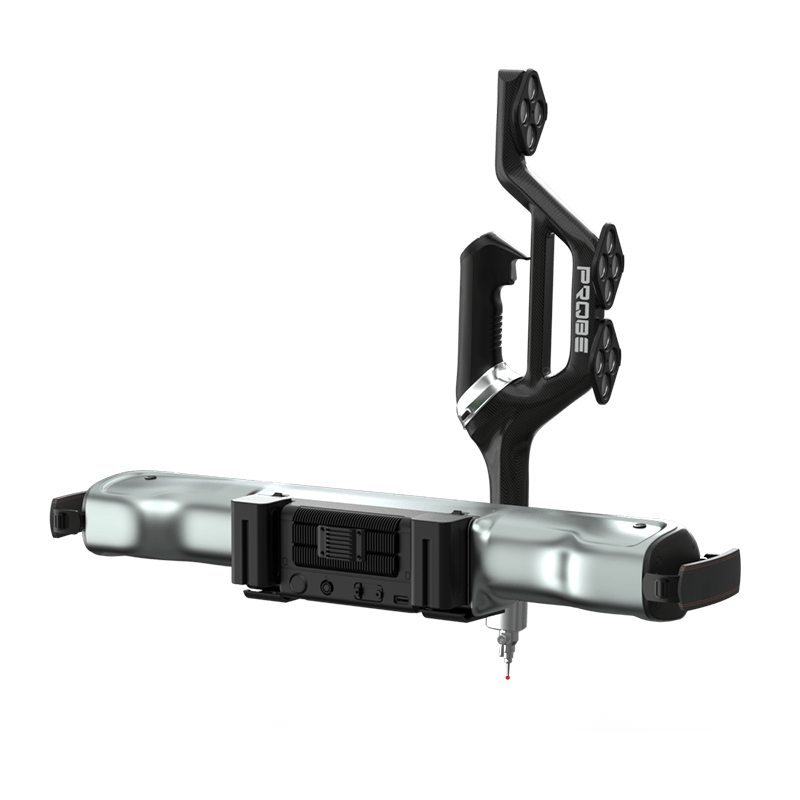

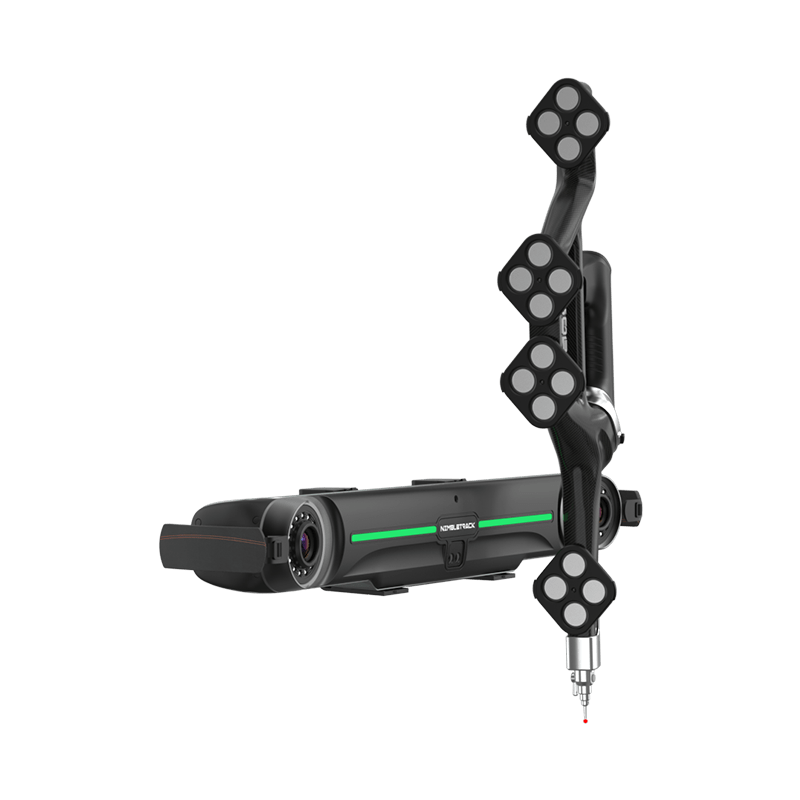

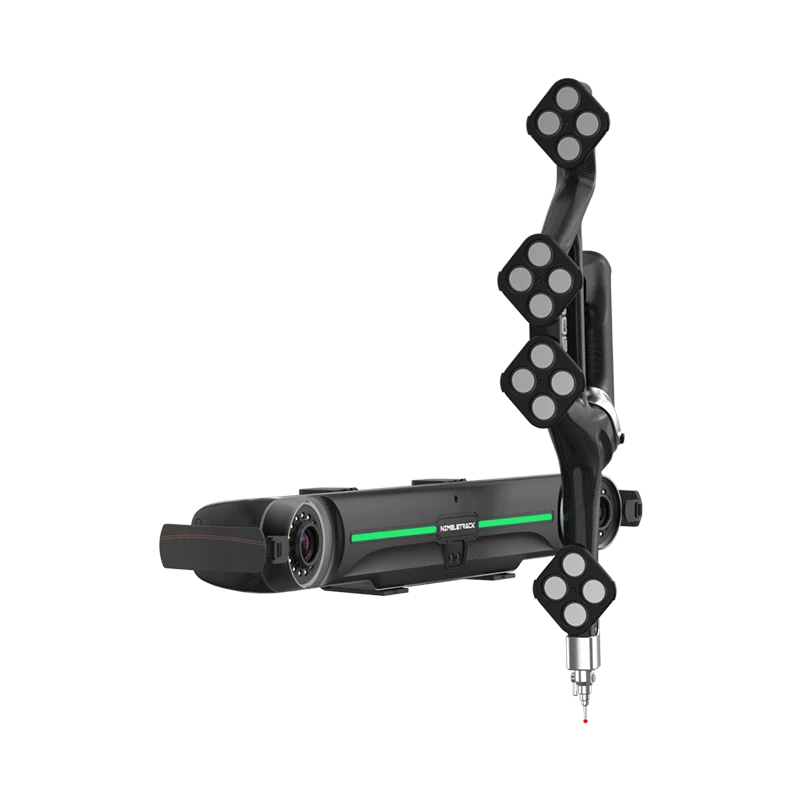

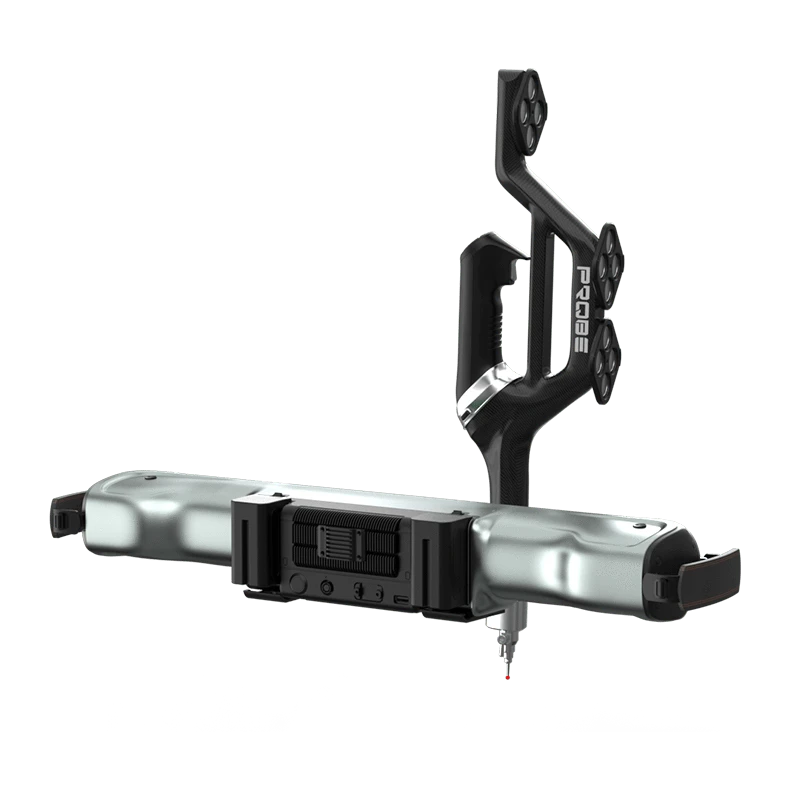

NimProbe
Compact Optical 3D Probing System
Product Overview
The NimProbe Compact Optical 3D Probing System represents the latest advancement in portable optical measurement technology. Designed for precision metrology applications, this system combines high accuracy with exceptional portability for on-site and laboratory measurements.
≤ 0.025mm
Measurement Accuracy
Technical Specifications
Measurement Accuracy
Up to 0.025 mm
Volumetric Accuracy
≤ 0.064 mm
Measurement Range
Up to 10 meters
Weight
Approximately 1.3 kg
Operating Temperature
-10°C to +40°C
Technology
Optical Tracking System
System Performance
| Parameter | Specification | Conditions |
|---|---|---|
| Point Accuracy | Up to 0.025 mm | Standard conditions |
| Measurement Distance | 0.3 - 10 m | Optimal tracking range |
| Measurement Speed | High-speed acquisition | Real-time processing |
| Resolution | Sub-millimeter | Optical imaging system |
Key Features
- Compact and lightweight design for exceptional portability
- High-precision optical tracking technology
- Wireless operation with built-in battery system
- Resistant to environmental factors (vibration, temperature, humidity)
- Real-time 3D measurement and data processing
- Compatible with various lighting conditions
- User-friendly interface and operation
- Metrology-grade precision for industrial applications
- Extensive measurement range capability
- Advanced optical imaging system
Applications
Quality Control
Reverse Engineering
Automotive
Aerospace
Manufacturing
Research & Development
Environmental Specifications
Operating Temperature
-10°C to +40°C
Storage Temperature
-20°C to +60°C
Humidity
10% to 90% RH (non-condensing)
Vibration Resistance
Industrial grade
Note: This datasheet presents general specifications based on SCANTECH's optical 3D probing technology. For detailed NimProbe-specific specifications, please contact SCANTECH directly or refer to the official product documentation.
