S5 legacy, S8 power. Up to 4x productivity, now more accessible.

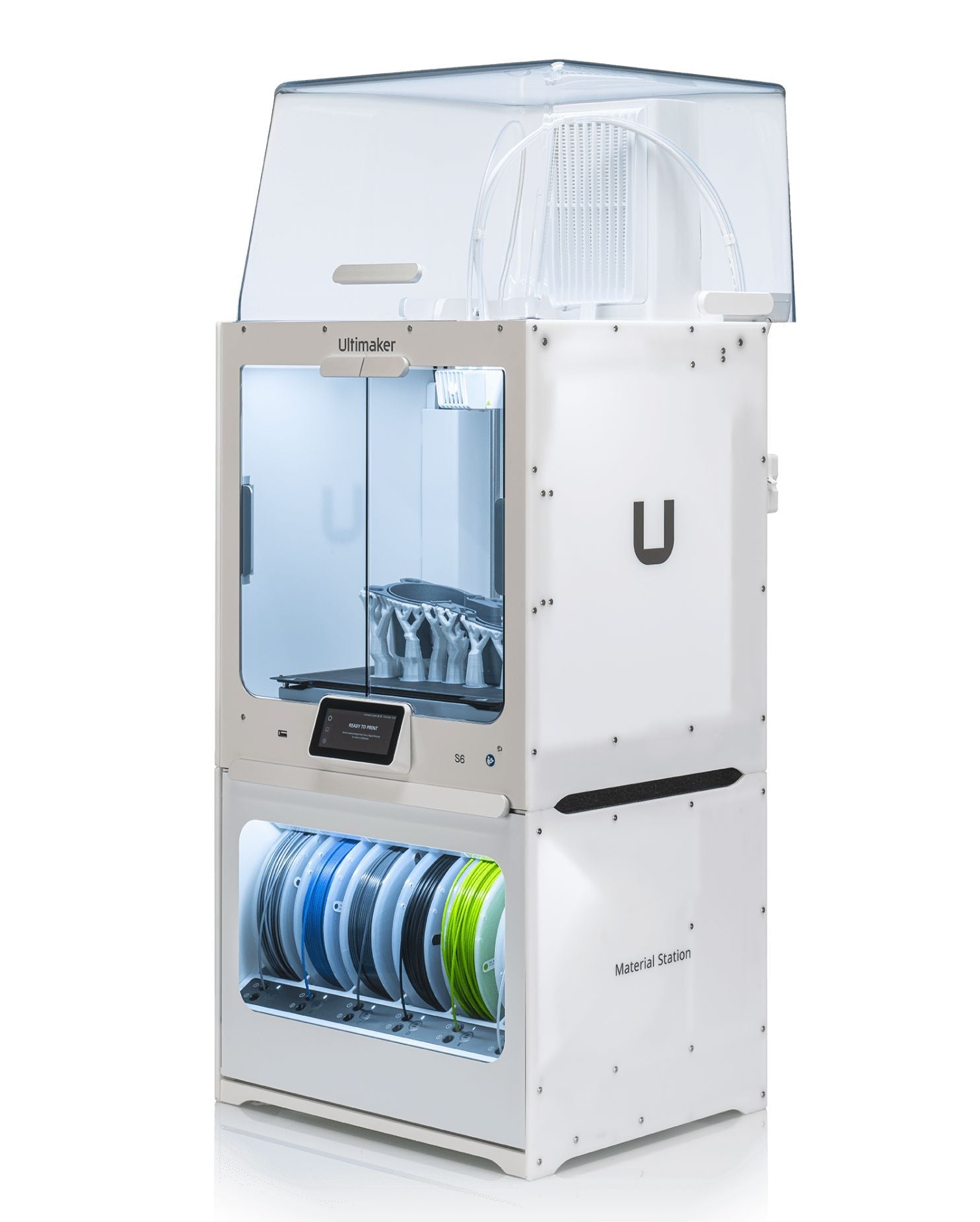

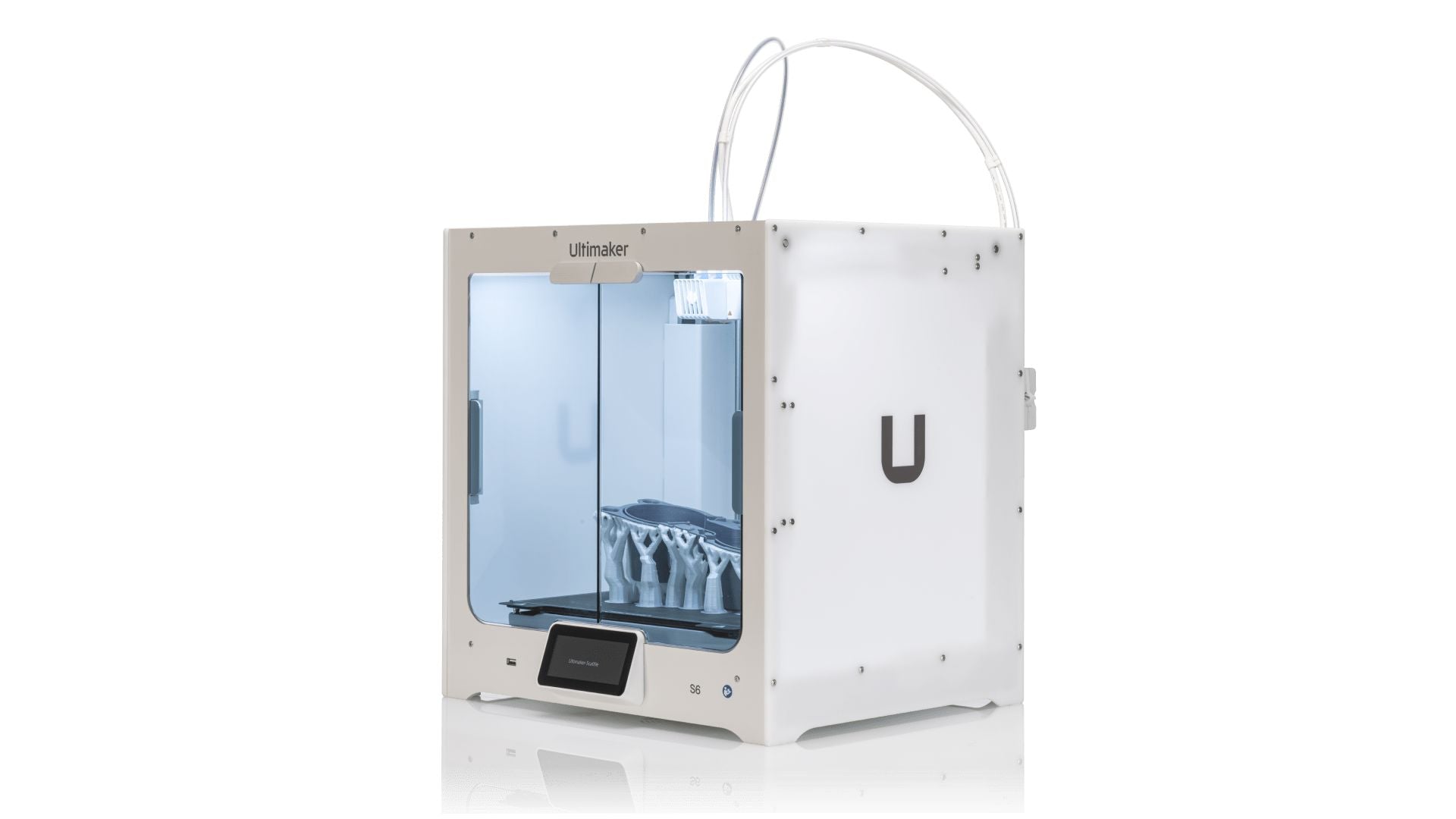

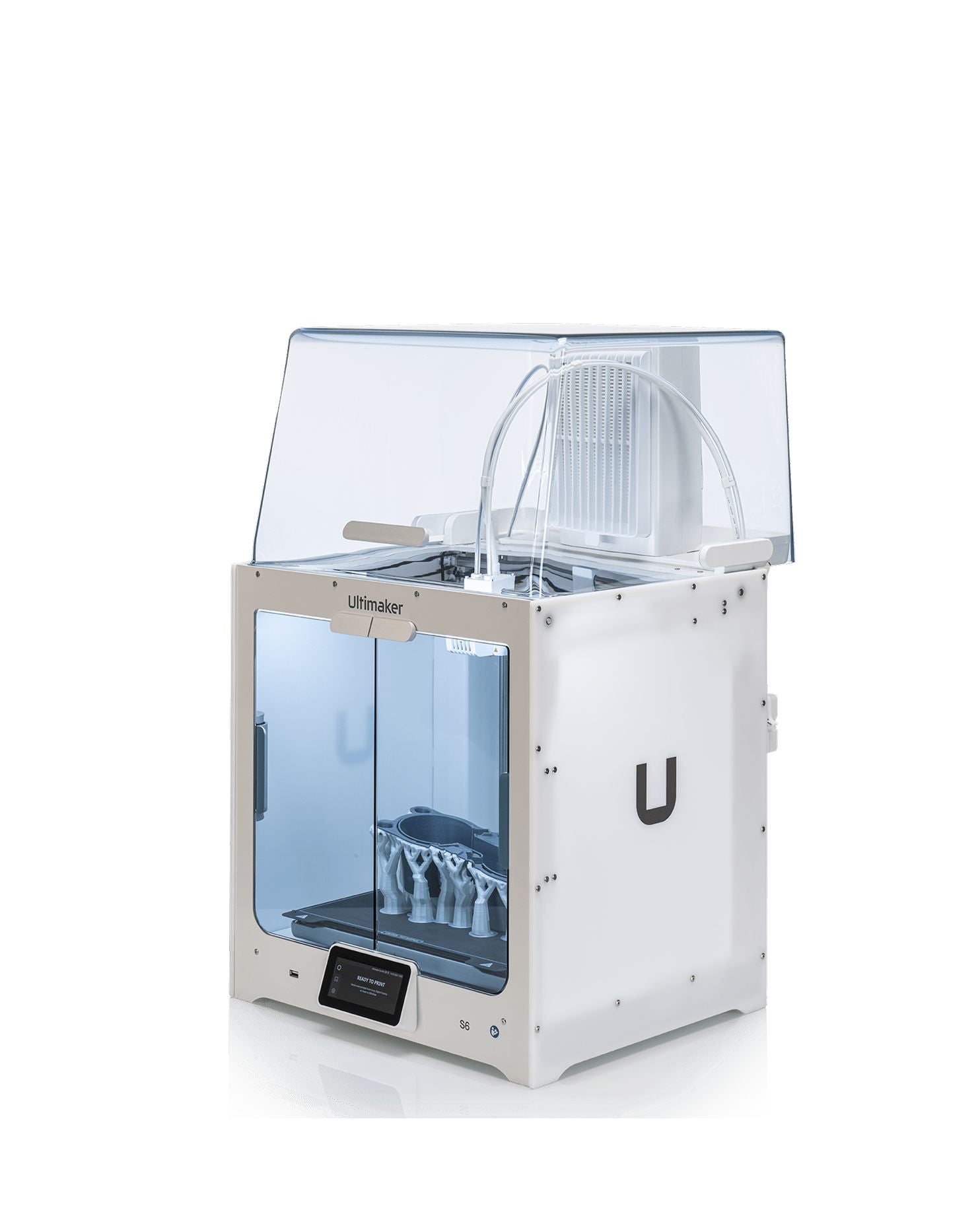

The UltiMaker S6 empowers you to innovate with speed and confidence. By building on the S5's great legacy of versatility and reliability, and adding powerful new features like the UltiMaker Cheetah, better bed leveling, and flex plate, you can accelerate your development cycles up to 4x, turning concepts into reality more efficiently than ever before.
Like its bigger brother the S8, the UltiMaker S6 achieves up to 4x the productivity of the S5, without compromising on the reliability UltiMaker is known for. This leap in performance is now more accessible, empowering more users.
FEATURING ULTIMAKER CHEETAH MOTION PLANNER SOFTWARE
Up to 500 mm/s travel speed 50,000 mm/s2 acceleration while also improving the quality of the print to 0.15mm ± 0.15%
Technical Specifications
UltiMaker S6 Technical Specifications
| Specification | Value |
|---|---|
| Build Volume | 330 × 240 × 300 mm |
| Technology | Fused Deposition Modeling (FDM) |
| Layer Resolution | 60 - 400 microns |
| Nozzle Diameter | 0.4 mm (standard) |
| Print Speed | Up to 500 mm/s |
| Filament Diameter | 2.85 mm |
| Compatible Materials | PLA, Tough PLA, PETG, ABS, CPE, Nylon, TPU 95A, PET-CF, CPE+, PC, PVA, Breakaway |
| Extruder Temperature | Up to 340°C |
| Heated Bed | Up to 120°C |
| Print Head | Dual-extrusion with auto nozzle-lifting |
| Motion Planner | UltiMaker Cheetah |
| External Dimensions | 495 × 585 × 780 mm |
| Weight | 25 kg |
| Operating Sound | < 50 dBA |
| Software | UltiMaker Cura 5.10.1+ |
| File Formats | STL, OBJ, AMF, 3MF |
| Connectivity | Wi-Fi, Ethernet, USB |
| Control Interface | Color Touchscreen |
| Auto-Leveling | Yes |
| Filament Runout Detection | Yes (NFC Recognition) |
| Print Resume | Yes |
| Build Plate | Heated Flexible PEI or Glass |
| Remote Monitoring | Yes (HD Camera) |
| Dual Extruder Support | Yes |
| Extrusion Flow | Up to 35 mm³/s |
| Acceleration | Up to 50,000 mm/s² |
| Operating Temperature | 15 - 32°C |
| Warranty | 24 months |
