S5 Pro Bundle Upgrade

$4,437.00
Save {}Sold out

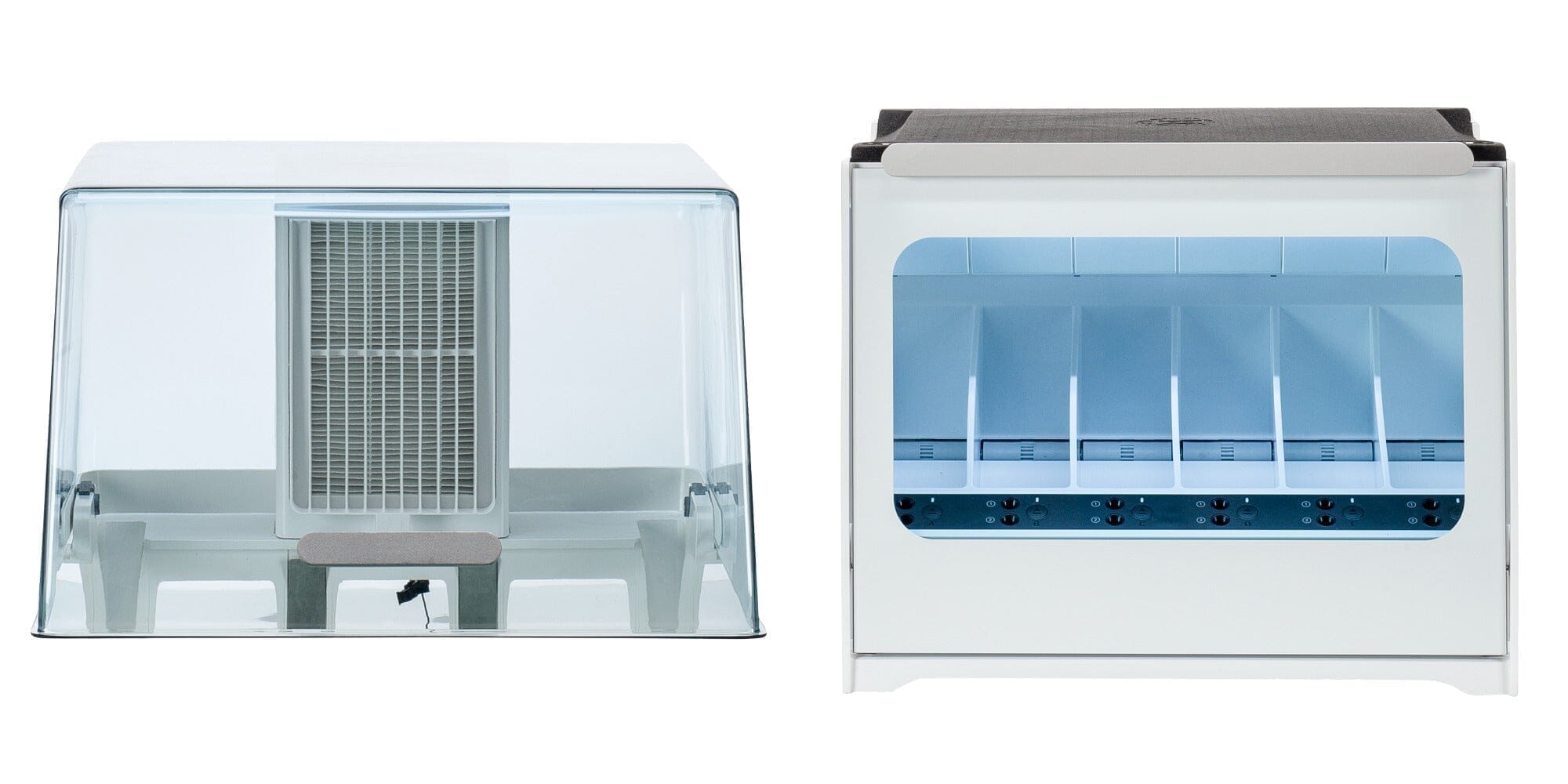

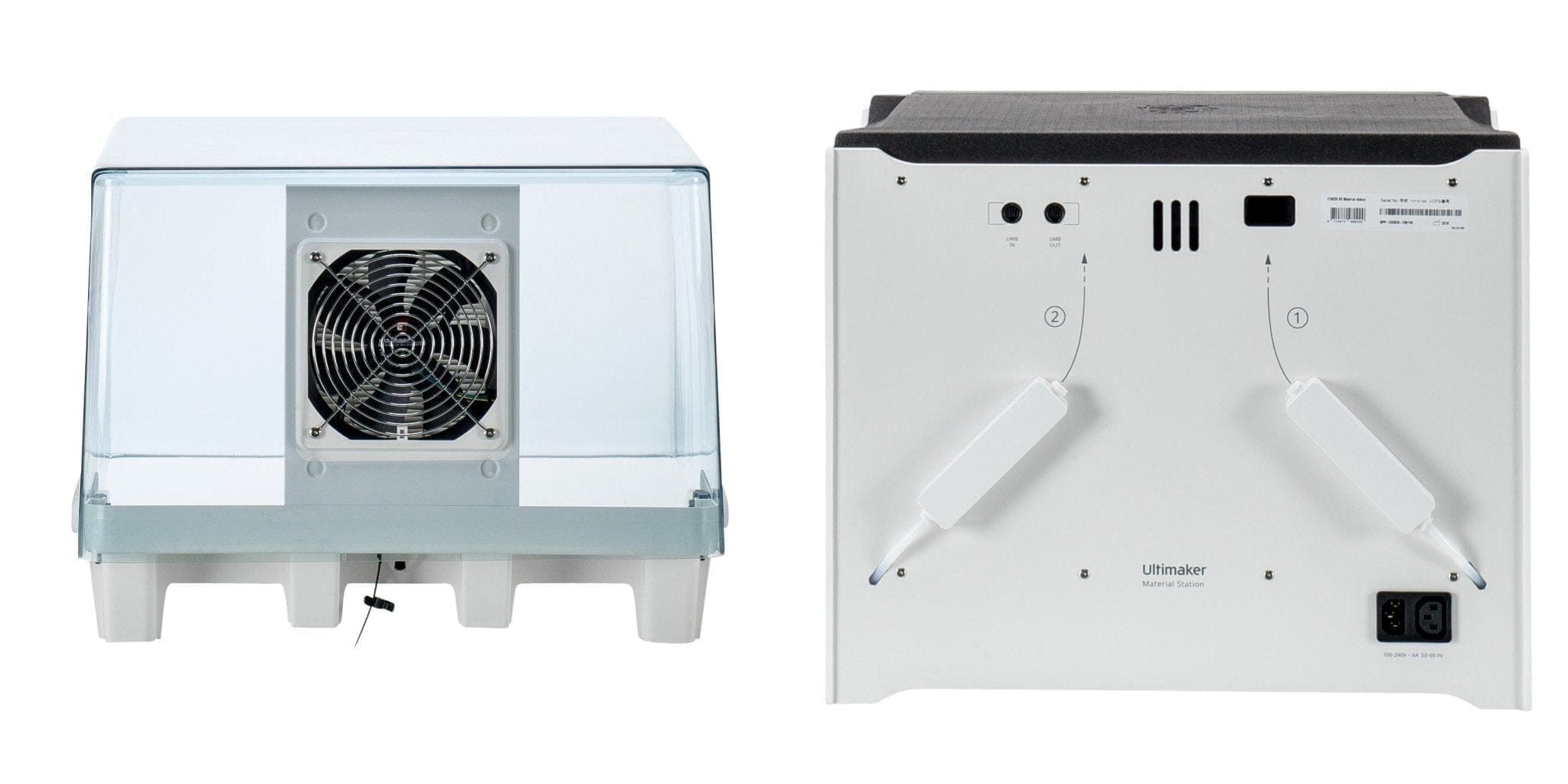

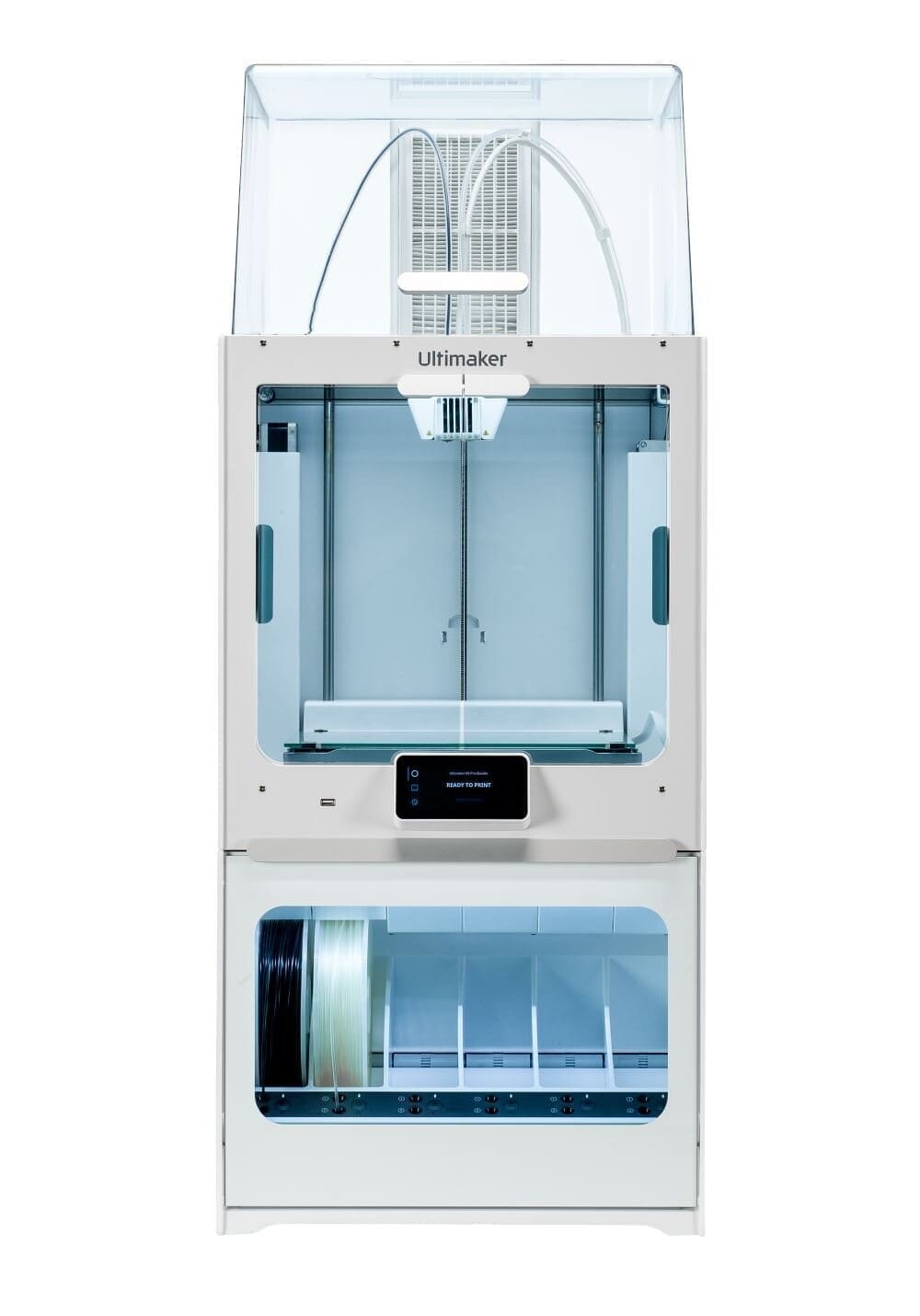

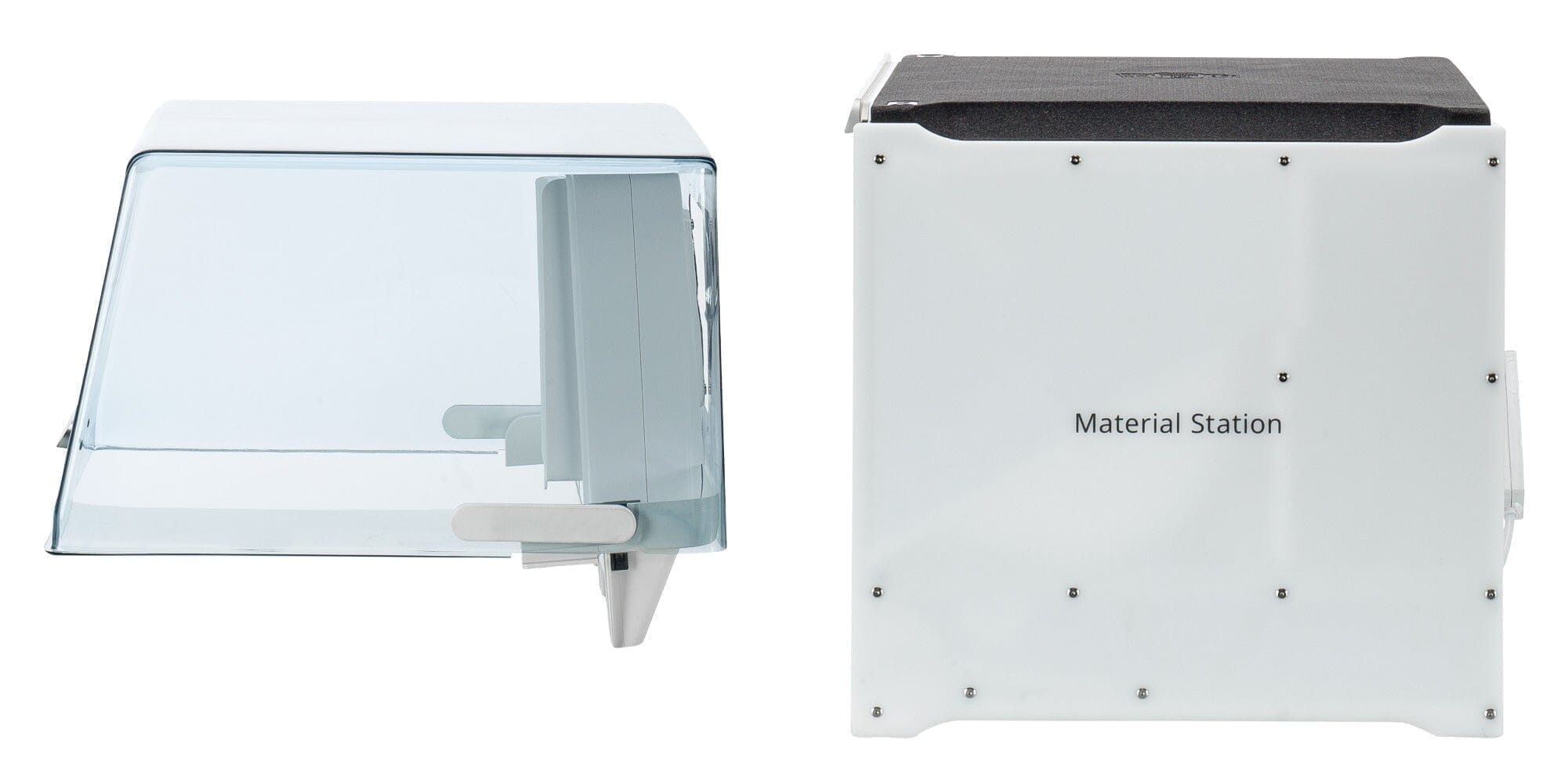

Transform your UltiMaker S5 printer into the industrially capable S5 Pro Bundle for an automated professional 3D printing experience by upgrading with these two game-changing add ons. The Air Manager provides efficient air filtering and helps maintain a stable printing temperature, while the Material Station offers automatic material handling and humidity control to keep 3D printing materials in optimal conditions. Together, these features unlock 24/7 productivity and demanding applications with an extended range of materials.
SKU: 217950, & 218053

Product Features

Air Filtration: The Ultimaker S5 Air Manager uses EPA filtration to remove up to 95% of ultrafine particles

Controlled extraction: Inside-out airflow optimized for filtering and print quality

Enhanced safety: Physical barrier prevents reaching inside the printer and touching moving parts and hot components

Optimized for your application: Detects material being used and adjusts airflow

Easy setup: Printer detects when the Air Manager is connected

Smart monitoring: Printer tracks filter usage and prompts replacement
S5PB4_c3359457-5cdb-4a7b-b764-642407a5f7e9
Easy setup and monitoring: NFC material auto-recognition and seamless integration with Ultimaker software

Limitless configurations: Keep your most-used materials ready to print when you need – Ultimaker and third-party filaments

Fast and easy loading: Front-facing bay for up to six materials reduces loading time to a few seconds

Uninterrupted printing: Sensors detect when one material spool ends and automatically loads the next

Humidity control: Intelligent atmospheric management keeps relative humidity below 40%

Technical Specifications

Air Manager

Material Station

Compatibility

Service and Support

Properties

Dimensions
490 x 503 x 350 mm (19.3 x 19.8 x 13.8 in)

Net weight
3.6 kg (7.9 lbs)

*S5 Pro Bundle
Assembled Dimensions
495 x 500 x 1197 mm
(19.5 x 19.5 x 47.1 inches)

Operating Sound
< 51 dBA (including Ultimaker S5)
Filter Technology
Replaceable EPA filter

Fan Technology
Air extraction by low-noise brushless fan

Air refresh rate
1 - 50 m3/h (35 m3/h nominal rate for most materials at 23°C)

Filter Efficiency
Up to 95%

Filter Replacement
Recommended every 1,500 print hours (approx. 1 year)
S5Am1_09b0b91f-839c-4d08-bd5f-5bf8cbc70db9

Properties

Dimensions
491 x 438 x 400 mm (19.3 x 17.2 x 15.7 in)

Net weight
17.7 kg (39 lbs)

Filament diameter
2.85 mm

Material capacity
6 spools

Material recognition
Auto-recognition enabled with NFC scanner
Material spool dimensions
Width: 50 - 70 mm (2 - 2.7 in)
Diameter: 197 - 203 mm (7.8 – 8 in)
Core diameter: > 98 mm (3.8 in)

Feeder type
Dual-geared, abrasion-resistant

Power input
85 - 264VAC, max. 125 W

Power output
Max. 10A (for Ultimaker S5)
S5MS1_b0fecaba-47af-47e4-bec4-83d5024bf9e8

Compatibility

Connection (data and power)
UMB connection (included)

Compatible 3D Printers
Ultimaker S5 3D printer is required for use

Compatible Materials
Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA, Breakaway (Also supports third-party materials)


S5PB4_fb4f22e4-347d-479d-a595-598bb29bd802

Service and Support

Warranty Period
12 months

Expert Support
Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support
Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more
S5PBUpgrade4

Introducing the S5 Pro Bundle
