Dual HD Projector Technology
Dual 7-watt HD projectors deliver up to 5x faster curing layer times compared to laser-based technology, with exceptional print quality and 90µm pixel resolution.
- Projector Power 7 Watts x2
- Pixel Resolution 90µm
- Speed Improvement 5x Faster
- First Article Success ✓
Large Build Volume
True mid-frame build volume in a compact footprint that fits through standard doorways. Perfect balance of size and workspace efficiency for production applications.
- Build Volume (XYZ) 242 x 265 x 300mm
- Build Volume (in) 9.5 x 10.4 x 11.8"
- Footprint Compact
- Installation Standard Doorway
Roll-In Vat System
Precisely located roll-in-place vat with frame datums simplifies material leveling and enables fast, easy material changeovers for continuous production workflow.
- Vat Design Roll-In-Place
- Frame Mounting Precision Datums
- Material Changes Fast & Easy
- Leveling System Displacement
Dual-Rail Recoater
Advanced dual-rail recoater system enhances part quality at higher movement speeds with precision attachment features for efficient material handling.
- Recoater Type Dual-Rail
- Movement Speed High
- Part Quality Enhanced
- Attachment Precision
Touch UI & Remote Monitoring
Contemporary HD multi-touch interface with step-by-step workflow guidance. Built-in HD camera enables remote monitoring and oversight for increased productivity.
- Interface HD Multi-Touch
- Workflow Step-by-Step
- Remote Monitoring HD Camera
- UI Position Left/Right Flip
Production-Grade Materials
Compatible with Figure 4 material portfolio including rigid, flexible, high-temp, flame-retardant, and biocompatible options for diverse applications.
- Material Types 8+ Options
- High Temp Resistance 300°C HDT
- Flame Rating UL94 V-0
- Auto-Fill System Resin Pump
Performance & Capabilities

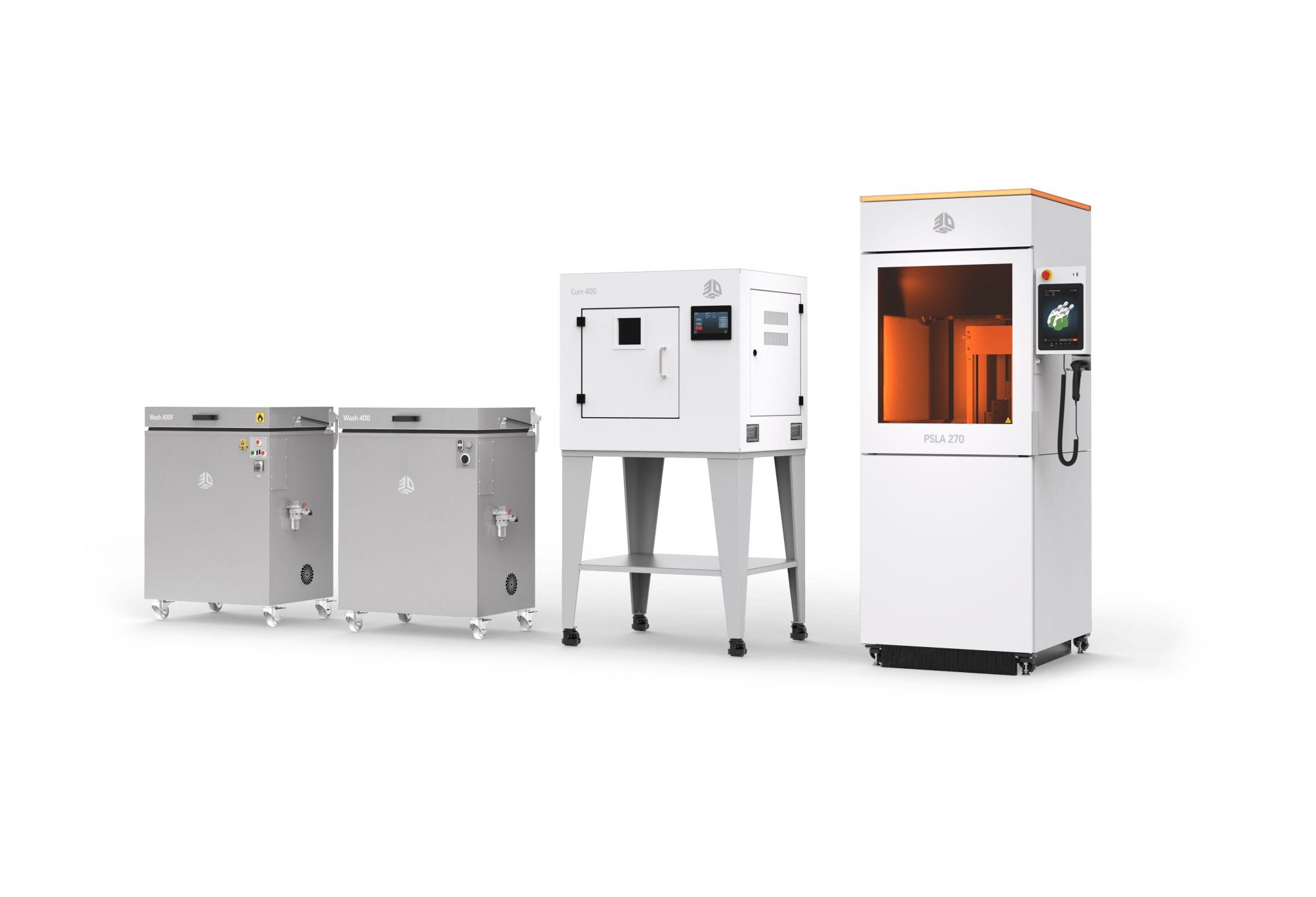

3D Systems PSLA 270
High-Speed Projector-Based SLA 3D Printer
Overview
The PSLA 270 is a high-speed, projector-based SLA additive manufacturing solution designed for time-sensitive and high part volume customers. This compact, cost-efficient, and extremely versatile mid-frame 3D printing solution delivers unrivaled accuracy and first article success with incredible speed and material portfolio versatility.
Technical Specifications
| Specification | Value |
|---|---|
| Build Volume (XYZ) | 242 × 265 × 300 mm (9.5 × 10.4 × 11.8 in) |
| Technology | Dual HD Projector-based SLA |
| Projector Power | Dual 7-watt HD projectors |
| Pixel Resolution | 90 µm |
| Recoating System | Dual-rail precision system |
| Material Loading | Hand pouring or auto-fill resin pump |
| Vat Design | Roll-in-place, frame-mounted |
| User Interface | HD multi-touch screen |
Key Benefits
- Fast: Up to 5x faster curing layer times compared to laser-based technology
- Precise: 90µm pixel resolution with exceptional print quality and repeatability
- Versatile: Compact size with large build volume capacity
- Easy to Use: Simple user interface guides end-to-end printing process
Key Features
- Industrial-grade durability
- Remote monitoring with HD camera
- Flexible design (UI can be flipped left or right)
- Fits through standard doorway
- Stainless steel interior covers
- Displacement leveling system
- 3D Sprint software integration
- 3D Connect cloud connectivity
- Fast and easy material changeovers
- Continuous print operation capability
Compatible Materials
- Figure 4 PRO-BLK 10: Production-grade, rigid material for production parts
- Figure 4 Rigid White: Opaque rigid white production-grade plastic
- Figure 4 Rigid Gray: High contrast gray plastic for long-term use parts
- Figure 4 HI TEMP 300-AMB: High temperature resistant translucent plastic with HDT over 300°C
- Figure 4 EGGSHELL-AMB 10: Process-optimized material for sacrificial tooling
- Figure 4 FLEX-BLK 20: High stability, durable and flexible plastic
- Figure 4 Tough 60C White: White plastic with good impact strength and elongation
- Figure 4 Tough FR V0 Black: UL94 V0 rated flame-retardant production plastic
Applications
- End-use durable plastic parts
- Rapid functional prototyping and fast concept models
- Short-run / low-volume production of plastic parts
- Jigs and fixtures
- Rapid tooling
- Tooling inserts
- Investment casting
- Environmentally stable parts
- Microfluidics
- Medical applications requiring biocompatibility and/or thermal resistance
Hardware Architecture
Vat Design
The roll-in-place vat is precisely located on the frame datums, simplifying the material leveling process and making material changes easy.
Recoater Design
The dual-rail recoater system enhances part quality at higher movement speeds with precision attachment features for fast material changes.
Clean Interior
Designed for frequent material changes with stainless steel covers to minimize maintenance and cleaning times.
Material Leveling
Displacement leveling system dramatically improves leveling performance while reducing overall system complexity.
Software
- Contemporary user interface designed for modern expectations
- HD multi-touch screen for easy visibility
- Step-by-step workflow guidance
- Remote monitoring capabilities
- 3D Sprint software for file preparation and production
- 3D Connect cloud connectivity for predictive service
