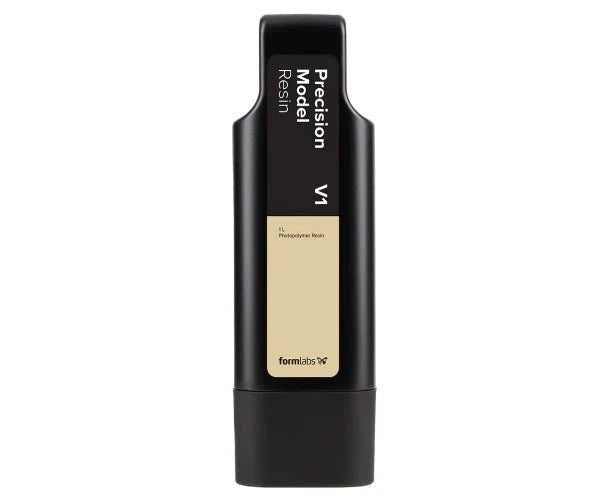

Precision Model Resin (Form 4)

$129.00
Save {}Sold out

Precision Model Resin

is a high-accuracy material for creating restorative models
with >99% of printed surface area within 100 μm of the digital model.

  • Create beautiful models with crisp margin lines thanks to high opacity, beige colour, and a smooth, matte finish to capture fine details.
  • Precision Model Resin is a new material that leverages the Form 4 ecosystem to 3D print three times as fast as previous formulations of Model Resin.

Applications

  • Restorative models
  • Implant models
  • Crown fit test models
  • Removable die models

Material Properties

  • Ultimate Tensile Strength: 50 MPa
  • Tensile Modulus: 2.2 GPa
  • Elongation at Break: 8.60%
  • Flexural Strength: 87 MPa
  • Notched Izod: 32 J/m
  • Unnotcheed Izod: 262 J/m
  • Heat Deflection Temp. @ 0.45 MPa: 53.5 °C
  • Thermal Expansion: 81.1 μm/m/°C

*Data for post-cured samples were measured on Type I tensile bars printed on a Formlabs Form 4 printer with 50 μm Precision Model settings, washed in a Form Wash for 5 minutes in ≥99% Isopropyl Alcohol, and post-cured at 35°C for 5 minutes in a Form Cure.

3D Printer Compatibility

  • Formlabs Form 4B
SKU: RS-C2-PMBE-01
Get a Quote

0.02mm

Accuracy

0.02mm

Resolution

120 FPS

Scanning Speed

Stunningly accurate models – every time

With super high accuracy, solid tracking, and dedicated modes for complex geometries, the Artec Point 3D scanner captures high-resolution metrology data you can count on.

Technical Specifications

View All Specs >

Scanner Type — Handheld
3D Light Source — Blue Laser, Class II (Eye-Safe)
3D Point Accuracy — 0.02mm (0.0008 in)
Volumetric Accuracy, up to —  0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft)

0.015 mm + 0.015 mm/m with Artec Metrology Kit (0.0006 in + 0.0006 in/ft)
Weight —   570 grams (20.1 oz)
Scanning rate, up to —    2.8 million measurements/s
Capture rate, up to —    120 FPS
Scanning Area —    700 x 600mm (27.6 x 23.6in)
Depth of field —    550 mm (21.7 in)
Size of Scanning object / area —   S-L
Certification —   ISO 17025 accredited based on VDI/VDE 2634 & JJF 1951
