NimbleTrack

Nimble and Wireless, Easier Than Ever

The NimbleTrack wireless 3D scanning system is highly compact and agile, which is designed to redefine the precise and dynamic measurements of small-to-medium sized parts.



Thanks to powerful on-board chips and built-in battery power supply, its 3D scanner and optical tracker are fully wireless for enabling true freedom.



With the most advanced technology, it offers the ultimate 3D scanning experience for users. Both the 3D scanner and tracker can be used for vast applications to deliver efficient and reliable measurement experiences.

SKU: N/A
Wireless-Icon
Wireless Measurement
Camera-icon
Customized Intelligent Camera
Computing-icon
On-board Edge Computing;
High Frame Rate of 120 FPS
Target-icon
Target-free 3D Scanning
Precision-icon
Industrial-grade Precision
Patents-icon
36 Patents
nimbletrack-3d-scanners-scantech-indicate-technologies-802955

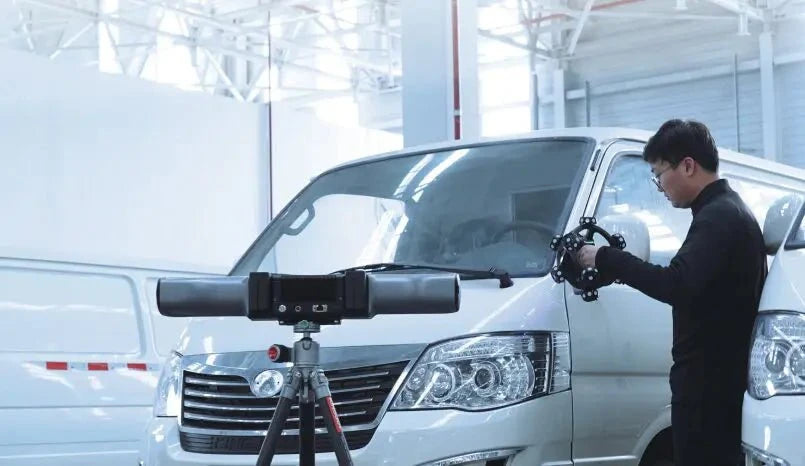

Wireless Freedom

This nimble optical 3D scanning system sets a new benchmark for wireless and free 3D scanning. It eliminated the need for any cables to power the instrument or transfer data. On-site measurement won’t be a problem even when there is no power supply available.

The 3D scanner has a built-in powerful battery, and the tracker comes with standard plug-in batteries to deliver a dual power cycle, ensuring continuous operations over a long time. All of these advancements allow you to enjoy free measurement experiences.

Dual Edge Computing and Robust Performance

Both NimbleTrack’s 3D scanner and tracker have powerful edge computing modules, which enables it to deliver fast and smooth scanning experiences at a high frame rate of 120 FPS.

When compared with common handheld 3D scanners, it saves the need for a power supply and the hassle of sticking targets, which highly streamlined measurement processes. It tackles complex tasks with ease by delivering target-free and efficient 3D scanning.
nimbletrack-3d-scanners-scantech-indicate-technologies-496560
nimbletrack-3d-scanners-scantech-indicate-technologies-308027

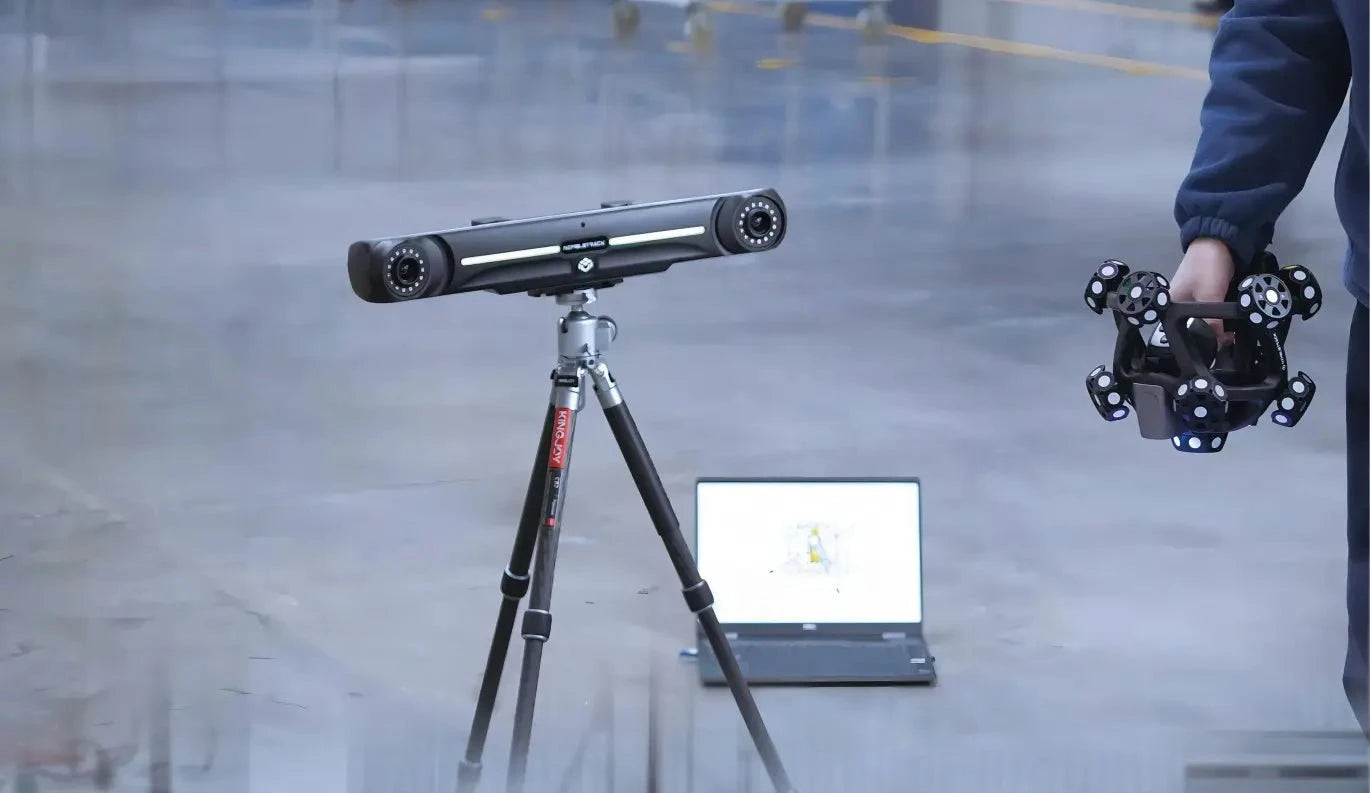

Incredible Compact & Plug-and-Play

Lightweight and compact, NimbleTrack sets a new standard for the optical 3D scanning system.

Its lightweight design allows you to measure parts wherever you need it. With a length of 57 cm and a total weight of 2.2 kg, i-Tracker stands out by delivering easy uses. Besides, engineers and professionals can use the 3D scanner, weighing only 1.3 kg, for long periods without feeling tired.

The system comes with a small standard protection case that can accommodate all its instruments to deliver flexible and convenient uses.

Stable Structure With CFFIM Technology

NimbleTrack’s 3D scanner embraces an innovative Carbon Fiber Frame Integrated Molding (CFFIM) technology to ensure lightweight design and high strength, breaking through the limits posed by traditional assembled structures. It is highly stable as its structure is steady and it is unaffected by thermal variations. One time of calibration can ensure it works steadily for a long period. You can enjoy full control over every scan with this cutting-edge technology.
CFFIM-Nimbletrack
Nimbletrack-small

Next Level 3D Scanning

NimbleTrack is smaller, smarter, and mightier, allowing users to explore novel applications for industrial measurements.

When dealing with narrow spaces or hard-to-reach areas, the 3D scanner can be operated wirelessly and independently, allowing for instant scanning and one-handed control. This enables high-precision scanning of up to 0.020 mm at any time and in any location.

When measuring even larger-sized parts, the optical tracker can further enhance precision by using its built-in infrared large-area photogrammetry to reduce accumulated errors accumulated by scan alignment.

Get the Most From Your NimbleTrack

Intelligent_Edge_Detection

Intelligent Edge Detection

NimbleTrack boasts an optional module of precise edge detection, which is enabled by gray-value measurement. Users can inspect closed features such as holes, slots, edges precisely and obtain information such as positions and diameters.
i-Probe500

i-Probe500

It can be paired with a tracking i-Probe to probe inaccessible areas such as reference holes and hidden points. This contact measurement probe can ensure precise results with both wired and wireless options.
Multi-tracker_Measurement

Multi-tracker Measurement

Its measurement range can be dynamically extended by adding more i-Trackers so that it can measure large-scale objects without compromising accuracy.
Automated_Measurement

Automated Measurement

Based on the new 3D scanner architecture, we have customized a clamping method for automated measurement, making it more compatible with various types of robots. Its 360-degree evenly distributed target sets allow for all-round and precise tracking, facilitating forming efficient automated batch measurement systems.

Technical Specifications

Scanner type
Handheld

Laser Class
Class II (eye-safe)


Scan Mode
Ultra-fast scanning
17 blue laser crosses

Hyperfine scanning
7 blue parallel laser lines

Deep hole scanning
1 blue laser line
Accuracy
Up to 0.025 mm

Accuracy for i-Scanner
Up to 0.020 mm (0.0008 in)

Accuracy for i-Tracker
Up to 0.025 mm (0.0009 in)

Resolution up to
0.020 mm (0.0008 in)

Depth of field
400 mm (15.7 in)

Scanning area up to
500 mm × 600 mm (19.7 in × 23.6 in)

Product Video

Watch the video of NimbleTrack Wireless 3D Scanning System! Learn about the working principle, features, and real-world performance of the NimbleTrack system in various application scenarios.
