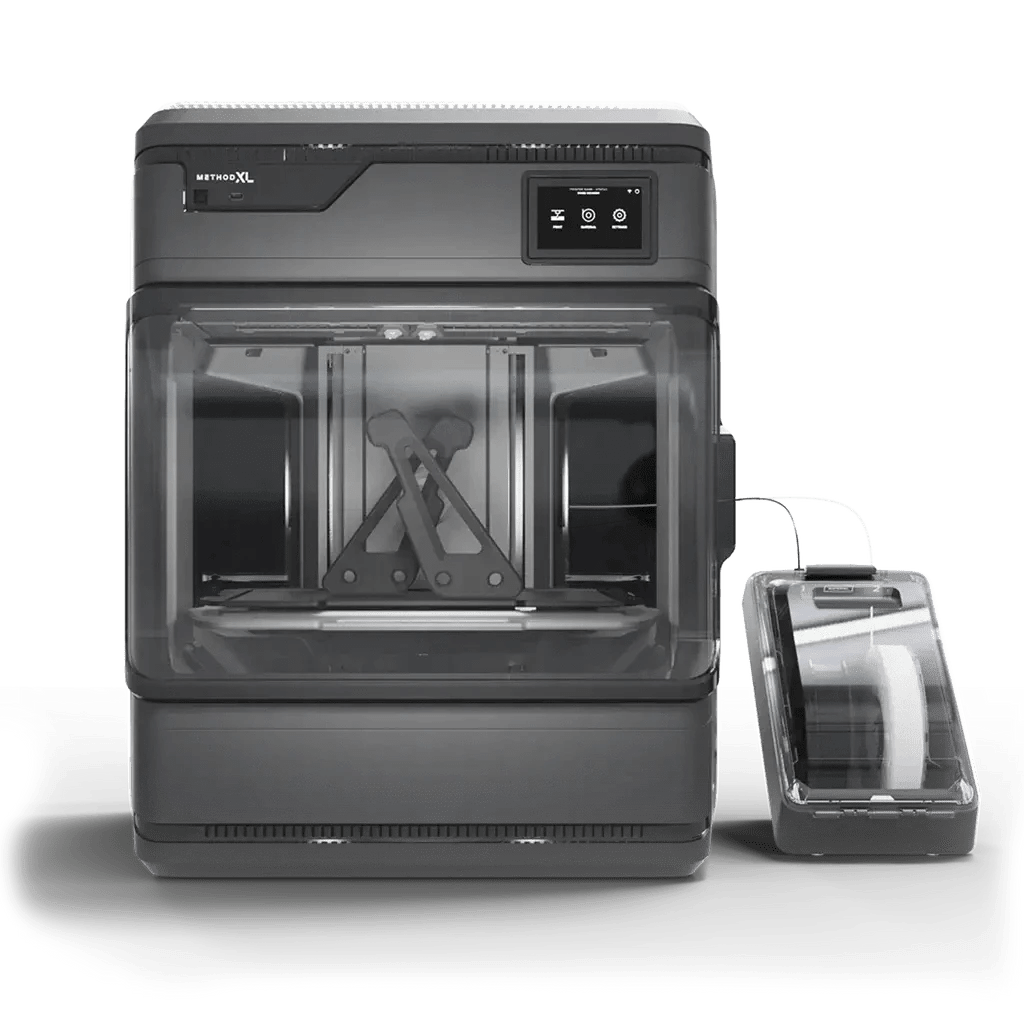

Method XL

$13,999.00
Save {}Sold out

Large scale ABS 3D printing.
Injection-molding prototyping.



The Method XL ensures the production of accurate ABS prototypes with engineering precision, utilizing its heated build plate and chamber. It ensures robust layer adhesion, allows for the creation of intricate geometries using water-soluble supports, and maintains air quality through its integrated HEPA filter.



What's included:

  • (1) Method XL 3D Printer
  • (1) 1C Extruder
  • (1) 2XA Extruder
  • (1) Material case
  • (1) Flexible build plate
SKU: 900-0095A
Request for Quote

Product Features

100°C Heated Chamber
The patented Variable Environmental Controlled Temperature (VECT) 100°C thermal regulation evenly heats and controls the print environment to make parts 2x stronger on the z-axis.

105°C Flexible Build Plate
Flexible build plate that heats up to 105°C for better adhesion.

Advanced Filtration
HEPA filtration and an activated carbon filtration are integrated into the machine so you don't worry about harmful fumes or strong smells.

Large Build Volume
Twelve-inch-cubed (12 x 12 x 12.6 inches) build volume for larger parts.
305 x 305 x 320 mm
UltiMaker_Method_XL_3D_Printer
Built to Print ABS
Reliably 3D print with ABS-R or ABS Carbon Fiber to simulate the material qualities of injection molded plastics.

ABS Dual Extrusion
ABS optimized dual extrusion.

Exceptional Dimensional Accuracy
Engineered to maintain tight tolerances and dimensional accuracy up to +/- 0.25mm.

Quick Dissolving Support
RapidRinse support material makes support removal quicker than ever. Simply watch as the water-soluble support material dissolve before your eyes.

Technical Specifications

Dimensions

Printer Properties

Operation Parameters

Ecosystem

Dimensions

Build volume
305 x 305 x 320 mm
(12 x 12 x 12.6 in)

Assembled dimensions
655 x 565 x 815 mm
(25.8 x 22.2 x 32.1 in)

Print technology
Fused filament fabrication (FFF)
Compatible filament diameter
1.75 mm

Weight
56.5 kg (125 lbs)

Maximum power output
1400 W
Method_WL_3D_Printed_Part_2

Printer Properties

Layer Resolution
0.4 mm nozzle: 100 - 400 micron

Display
5" (12.7 cm) full-color capacitive touchscreen
Extruder replacement
Swappable performance extruders

Print head
Dual-extrusion print head with swappable extruders

Nozzle diameter
0.4 mm (included)
Method_XL_Precision_Parts

Operation Parameters

Filter technology
Replaceable HEPA filter and activated carbon filter

Operating sound
57.1 +/- 3 dB

Build plate
Heated build plate (105°C) with removable, flexible build surface
Maximum heated chamber temperature
100 °C

Maximum heated build plate temperature
105 °C

Maximum extruder temperature
300 °C
Method_XL_Environment

Ecosystem

Supplied Free Software
CloudPrint

Supported OS
MacOS, Windows

Supported File Types
.catpart, .dae, .glb, .iges, .igs, .ipt, .obj, .par, .sab, .sat, .sldprt, .wrl, .x_t, .3mf, .stl, .makerbot.

File Transfer
Wi-Fi, Ethernet, USB

Method_XL_Finished_3D_Printed_Part

Introducing the UltiMaker Method XL
