Product Features
DRIVE INNOVATION WITH BIGGER POSSIBILITIES
Harness the full potential of the printer's print chamber and create objects up to 8.6” in length, 7.8” in width, and nearly 10” in height!
With a larger printer, you gain the capability to produce more extensive projects. Whether it's printing diverse bridge structures for physics, crafting the skull of a T-Rex for biology class, or employing 3D printing for problem-solving endeavors, the possibilities are limitless.
Allow your students to unleash their creativity and design as big as their imagination permits!
Maximize your classroom productivity with the SKETCH Large. This time-saving feature allows you to reclaim valuable classroom time while providing your students with increased opportunities for 3D printing. Embrace efficiency and get more done in less time by effortlessly loading up the build plate with 10 projects at once using the SKETCH Large.
STREAMLINING PRINTING FOR THE WHOLE CLASSROOM
Say goodbye to the 3D printing bottleneck as you can now print up to 10 projects simultaneously on a single build plate.
MORE THAN JUST A 3D PRINTER
KICKSTART 3D PRINTING ON DAY ONE
Our Certification program provides students with access to over 15 hours of online curriculum, empowering them with the tools to enhance their design thinking skills through 3D printing.
CURRICULUM THAT’S READY TO GO
Gain access to a collection of community-driven lesson plans meticulously reviewed and approved by MakerBot Education. These plans cater to various grade levels and subjects, making it easy to find lessons applicable to your classroom and curriculum needs.
CLASSROOM-READY SOFTWARE
Transform your students' digital models into real 3D prints effortlessly using MakerBot CloudPrint, a cloud-based software that requires no software installation or student account creation. This hassle-free solution allows you to seamlessly bring their creations to life without any additional setup or complications.
Technical Specifications
Printing
Hardware
Size & Weight
Software
Compatibility
What's Included
PRINTING
Print Technology
Fused deposition modeling (FDM)
Build Speed Max Print Speed
Up to 150 mm/sec
Layer Resolution
Maximum Capability: 100 - 400 microns
Print Mode tuned for: 200 microns to provide an optimal balance of high surface quality and quick print time

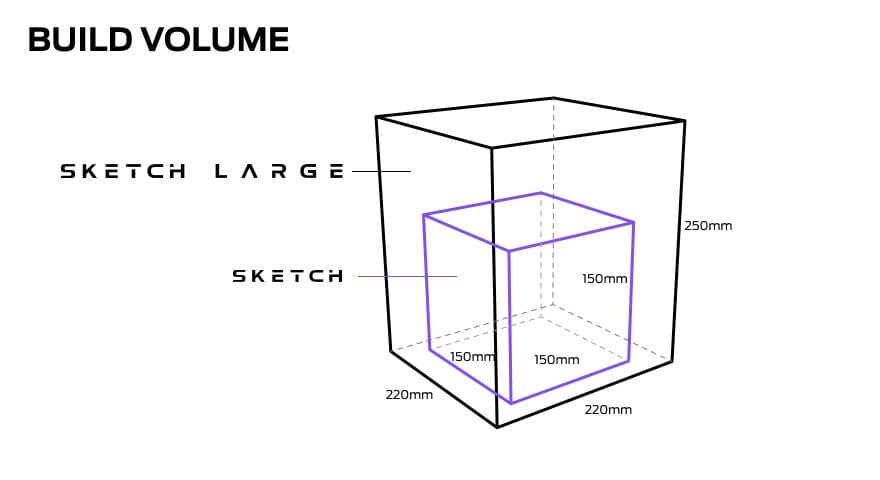

Maximum Build Volume
220mm x 200mm x 250mm [8.66in x 7.87in x 9.84in]
Supported Materials
MakerBot PLA and Tough for SKETCH
Maximum Heated Build Plate Temperature
110C [230F]
Operating Volume
50 dB
Recommended Print Mode
Balanced
Hardware
Print Heads
1 (user replaceable)
Nozzle Diameter
0.4 mm
Nozzle Material
Stainless Steel (SU304)
Sensors
Filament Detection and Auto Load/Unload
Display
109mm color touch screen [4.3in color touch screen]
Build Plate
Heated with removable, flexible build surface
Build Surface
Grip Surface
Camera Resolution
2 megapixels
Ambient Operating Temperature
15C to 30C [59F to 86F] 10% to 70% RH non-condensing
Storage Temperature
0C to 55C [32F to 131F]
Filter
Particle Filter
Size & Weight
Product Dimensions
547mm (H) x 535mm (W) x 470mm (D) [21.54in (H) x 21.07n (W) x 18.50in (D)]
Product Weight
23.2kg [51.15lb]
Shipping Weight
32.5kg [71.65lb]
Shipping Box
675mm (H) x 569mm (W) x 591mm (D) [26.57in (H) x 22.40in (W) X 23.27in (D)]
Software
Software Bundle
MakerBot CloudPrint
File Types
MakerBot (.makerbot), STL (.stl)
.catpart .dae .gib .iges .ipt .obj .par .sab .sat .sldprt.Thing .wrl x_t .3mf
Recommended Browser
Latest version of Chrome, Edge, Firefox, or Safari
Compatibility
Material Compatibility:
PLA for SKETCH
Tough for SKETCH

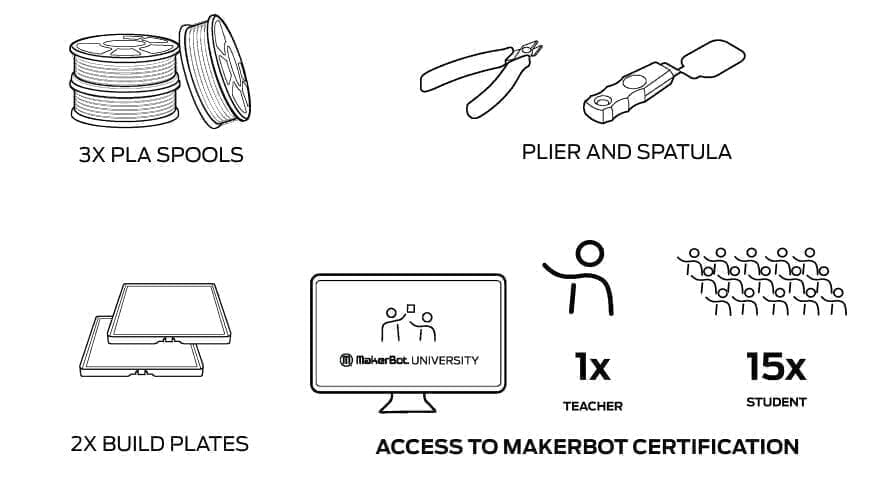

What's Included
Double the Printing Capacity
670 cubic inches of printing space
Enough Printing for a Whole Semester
(3) Spools of Easy to Print, PLA Filament
3D Printer Training & Design Thinking Courses
(1) Teacher Seat in Printer Training Course & Curriculum Creation Course
(15) Student Seats in Printer Training Course & Design Thinking Courses
Classroom 3D Printing Management
Cloud-based, printer preparation software
Printer Features to Keep 3D Printing Easy and Worry-Free
(2) Flexible Build Plates
Heated Build Plate
Enclosed Print Chamber & Air Filter
Onboard Camera
Spatula & Snippers
