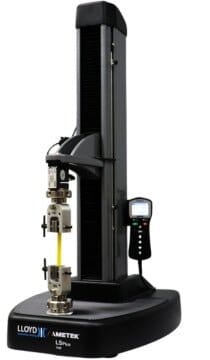

LS1 Plus Measurement Systems Lloyd Instruments - Indicate Technologies
LS1 Plus

Lloyd Instruments introduces the LSPlus Series, a significant advancement in materials testing technology. Building upon the established reputation of the LS Series, the LSPlus incorporates cutting-edge components to deliver unparalleled performance and reliability for diverse material testing applications.


Unmatched Precision and Accuracy

The LSPlus Series boasts superior speed control and enhanced accuracy compared to its predecessor. The high-precision, interchangeable YLC Series load cells guarantee meticulous results, with an impressive ±0.5% reading accuracy down to 1/100th of the load cell capacity. This enables engineers to have the utmost confidence in their material analysis data.

Model: LS1 Plus Standard
  • LS1 Plus Standard
  • LS1 Plus Extended
Technical Specifications
Lloyd Instruments LS Series - Technical Specifications

Lloyd Instruments LS Series Technical Specifications

Specification Value
Force Capacity LS1Plus: 1000N (225 lbf) | LS2.5Plus: 2500N (562 lbf) | LS5Plus: 5000N (1124 lbf)
Crosshead Speed Range LS1Plus: 0.01 to 2032 mm/min | LS2.5Plus: 0.001 to 2032 mm/min | LS5Plus: 0.001 to 2032/1016 mm/min
Return Speed 2032 mm/min (80 in/min)
Speed Accuracy ±0.1% above 0.1 mm/min
Extension Resolution 0.04 microns
Load Cell Accuracy < ±0.5% of reading down to 1/100 of load cell capacity
Load Resolution 32-bit A/D converter, Min. Load Resolution 1 part in 10⁹
Data Transfer Rate to PC 1 kHz
Supply Voltage 207-253 VAC at 50 Hz or 103.5-126.5 VAC at 60 Hz
Load Measuring System EN ISO 7500-1:2015 Class 0.5 ASTM E4
Operating Temperature 10 to 40°C / 50 to 104°F
Control Modes Position, Load Rate, and Strain Rate control
Position Repeatability <10 microns
Relative Humidity 20% to 85% (Non-condensing)
Extensometer Inputs Optional, Analog and Digital

Machine Dimensions

Model T-Travel H-Machine Height D-Throat Depth
LS1 500 mm [19.7 in] 1000 mm [39.4 in] 180 mm [7.1 in]
LS1E [Extended] 800 mm [31.5 in] 1300 mm [51.2 in] 180 mm [7.1 in]
LS2.5 1400 mm [55.1 in] 1900 mm [74.8 in] 150 mm [5.9 in]
LS5 800 mm [31.5 in] 1300 mm [51.2 in] 150 mm [5.9 in]
LS5HS 800 mm [31.5 in] 1300 mm [51.2 in] 150 mm [5.9 in]

YLC Load Cells

Model Description N lbF kgF gF
01/3871 YLC-0005-A1 5 x 0.0001 1 x 0.00001 0.5 x 0.00001 500 x 0.01
01/3872 YLC-0010-A1 10 x 0.0001 2 x 0.0001 1 x 0.00001 1,000 x 0.01
01/3873 YLC-0020-A1 20 x 0.001 5 x 0.0001 2 x 0.0001 2,000 x 0.1
01/3874 YLC-0050-A1 50 x 0.001 10 x 0.0001 5 x 0.0001 5,000 x 0.1
01/3875 YLC-0100-A1 100 x 0.001 20 x 0.001 10 x 0.0001 10,000 x 0.1
01/3876 YLC-0250-A1 250 x 0.01 50 x 0.001 25 x 0.001 25,000 x 1
01/3877 YLC-0500-A1 500 x 0.01 100 x 0.001 50 x 0.001 50,000 x 1
01/3878 YLC-1000-A1 1,000 x 0.01 200 x 0.01 100 x 0.001 100,000 x 1
01/3879 YLC-2500-A1 2,500 x 0.1 500 x 0.01 250 x 0.01 250,000 x 1
01/3880 YLC-5000-A1 5,000 x 0.1 1,000 x 0.01 500 x 0.01 500,000 x 1
