The KSCAN-X is a cutting-edge wireless 3D scanner designed for large-scale measurements. With adaptive photogrammetry, ultra-wide scanning, and fast, high-precision performance, it excels in aerospace, heavy industry, and rail applications.

Truly Wireless Scanning for Ultimate Flexibility
The KSCAN-X is a fully wireless device, enabling unrestricted scanning even in power-limited environments, at heights, or in remote locations. Designed for efficiency and ease of use, it features:


● Robust on-board processing for handling large datasets with ease.


● Dual-battery system for uninterrupted, cable-free operation.


● Dual-WNIC design technology for stable, high-speed data transfer.

Wide-Area Scanning,
Exceptional Precision

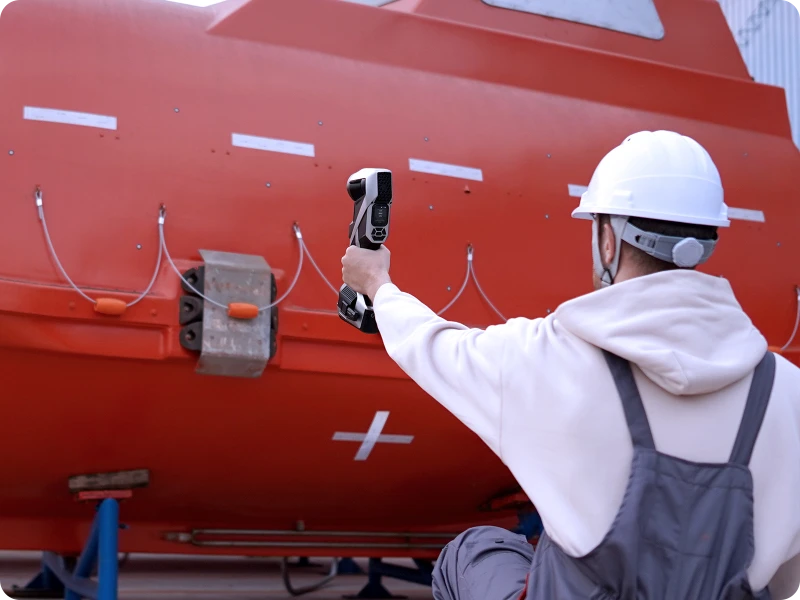

KSCAN-X, powered by our in-house developed and sophisticated algorithms, offers extensive scanning area of up to 2.6 m*1.8 m, which is ideal for scanning ultra-large parts.
9d4ad9882f5215c3d7d99e3d7d9cef6c
Deep Hole Measurement | No Blind Spots
KSCAN-X offers a more compact and lightweight design compared to similar products. Featuring a shorter baseline and a dedicated blue laser line for deep-hole detection, it excels at capturing hard-to-reach areas like pipe interiors and gear teeth, ensuring complete and accurate data collection, even in hard-to-reach areas.
8c5095459d85dd082bd91cc3dcb016bf
Faster and Smoother
Powered by innovative quad-cross blue laser technology and a high-frame-rate processing chip, KSCAN-X delivers a major leap in measurement efficiency. It delivers fast and precise measurements for large parts even in harsh enviroments.

4*21 Quad-cross blue laser lines
6,450,000 measurements/s
Scanning rate up to
180 FPS
High frame rate
Fewer markers
Smoother and more efficient scanning
Technical Specifications
SpecificationDetails
Scan ModesLarge FOV Scanning, Medium-Distance Scanning, Deep Hole Scanning
PhotogrammetryAdaptive Photogrammetry with 54 blue laser lines
Additional Laser Line1 extra blue laser line for deep hole scanning
AccuracyMedium-Distance Scanning: 0.030 mm<br>Large FOV Scanning: 0.075 mm
Volumetric Accuracy0.075 mm + 0.010 mm/m
Scanning RateUp to 6,450,000 measurements per second
Scanning AreaUp to 2600 mm × 1800 mm
Working Distance0.30 m to 2.50 m
Object Size0.5 m to 15 m
Laser ClassClass II (eye-safe)
Maximum Resolution0.1 mm
Dimensions (L × W × H)344 mm × 124 mm × 99 mm
Stand-Off Distance235 mm
Connectivity InterfaceWireless Standard: Wi-Fi 6 (802.11a/b/g/n/ac)<br>Wired: USB 3.0 Type-B
Power SupplyDual-battery system for continuous operations<br>Supports uninterrupted power supply
Operating EnvironmentTemperature: 10°C to 40°C<br>Humidity: 10% to 90% RH<br>Protection Rating: IP50 (suitable for workshop environments)
PatentsMultiple patents including CN204329903U, CN104501740B, CN104165600B, and others
